Home > Products > ONN M9 surface mount explosion-proof light 7W-20W CNC machine light
ONN M9 surface mount explosion-proof light 7W-20W CNC machine light
Click on the image to view the original image
Product： views：5ONN M9 surface mount explosion-proof light 7W-20W CNC machine light
Branch： ONN
Size： 97X6.6X7 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 21:36
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
24V/ 100-240V
Lamp Power(W):
20
CRI (Ra>):
80
Lamp Luminous Flux(lm):
2000
IP Rating:
IP65
Working Lifetime(Hour):
50000
Working Temperature(℃):
-40 - 45
Certification:
BV, CCC, CE, CQC, EMC, FCC, RoHS
Place of Origin:
Guangdong, China
Base Type:
2G11
Brand Name:
ONN
Light Source:
LED
Product Name:
ONN M9 surface mount explosion-proof light 7W-20W CNC machine light
Rated power:
8W/12W/18W/24W
Warranty:
3-5 years
Mounting:
Surface mounting or magnetic mounting
Beam angle:
120 degree
Central LUX:
70cm 450Lux
Lead time:
5-10 days
Working temperature:
-40-50°
Length:
300/400/600/800mm
Color Temperature(CCT):
3000-6000

Packaging & Delivery

Selling Units:
Single item
Single package size:
97X6.6X7 cm
Single gross weight:
1.3 kg
Package Type:
ONN M9 surface mount explosion-proof light 7W-20W CNC machine light 1pcs/ inner box; 12pcs/ outer box According to customr's requests
Lead Time:
Quantity(Piece)1 - 50>50
Est. Time(days)5To be negotiated



ONN M9 surface mount explosion-proof light 7W-20W CNC machine light







 Application :





All kind of refrigeratory , assembly line Machine interior lighting, food factory, pharmaceutical factory, agriculture industry , mushroomindustry (applicable for all the places which is not easy to change place ,have the needs of water-proof, explosion-proof,it is the revolutionary alternatives of traditional "water resistant" and explosion-proof lights).





Specifications:





      Water-proof Led Machine Work Light / CNC Machine Lighting

  • Super Bright Led Tube Light
  • 24v AC/DC  100-240v AC
  • CE-EMC, FCC , CCC , IP65 , ISO9001
  • 3-5 years warranty



 Water-proof Led Machine Work Light / CNC Machine lighting

1. Specifications of Water-proof Led Machine Work Light / CNC Machine Lighting



Product Code:

ONN-M9

Item Type

Led Machine Work Light

Input voltage:

100-240V AC   24V DC/AC

Length:

300 / 400 / 600 / 800mm

Wattage:

8w / 12w / 18w / 24w

Mounting :

Fixed with clips or pin screw

LED:

Smd 3014

Lumens:

2000lm

Efficiency:

100lm/W

CRI:

>80

Color:

Warm white / Neutral white / Cool white

Color temp.:

2700-3200K / 4000-4500K / 5500-6500K

Beam angle:

120

Material:

Aluminium body + Tempered glass

Body color:

Silver

Certificates:

CE-EMC, FCC , CCC , IP65 , ISO9001

Life Span:

50000 Hours



2. Features of  Energy Saving Water-proof Led Machine Work Light / CNC Machine Lighting



         Excellent Taiwan chip, high . Low thermal resistance ,good thermal condutivity , low light decay

  • CRI> 80.
  • Large double energy-saving , long lifespan , maintenance-free man-hour cost , especially suitable for ultra-low temperature cold storage enviroments .
  • Resistant to low temperature of -40°C, no frosting , instant starting .
  • Big allowance design,imported Rubycom capacitance,increase the lifespan of driver obviously,
  • Die-casting aluminum body,Water-proof Adhesive Tape,Water-proof Silicon and Toughened Glass combined together,Unify Water-proof,Heat Dissipation and Appearance completely.
  • Patented construction,consise and generous,360°adjustable, surface mounting or magnetic mounting, easy installation.
  • Modular design,easy to replace once the driver failed.
  • CE FCC and IP65 certificated 3-5 years warranty .

3. Sales terms





  • MOQ: Full carton ( 12pcs ) . Accept sample order
  • Warranty: 3 Years
  • Payment: T/T, Paypal, Western Union. 30% payment in advance, balance paied before shippment.
  • Production Time: 5-7 days for sample order, 7-15 days for official order

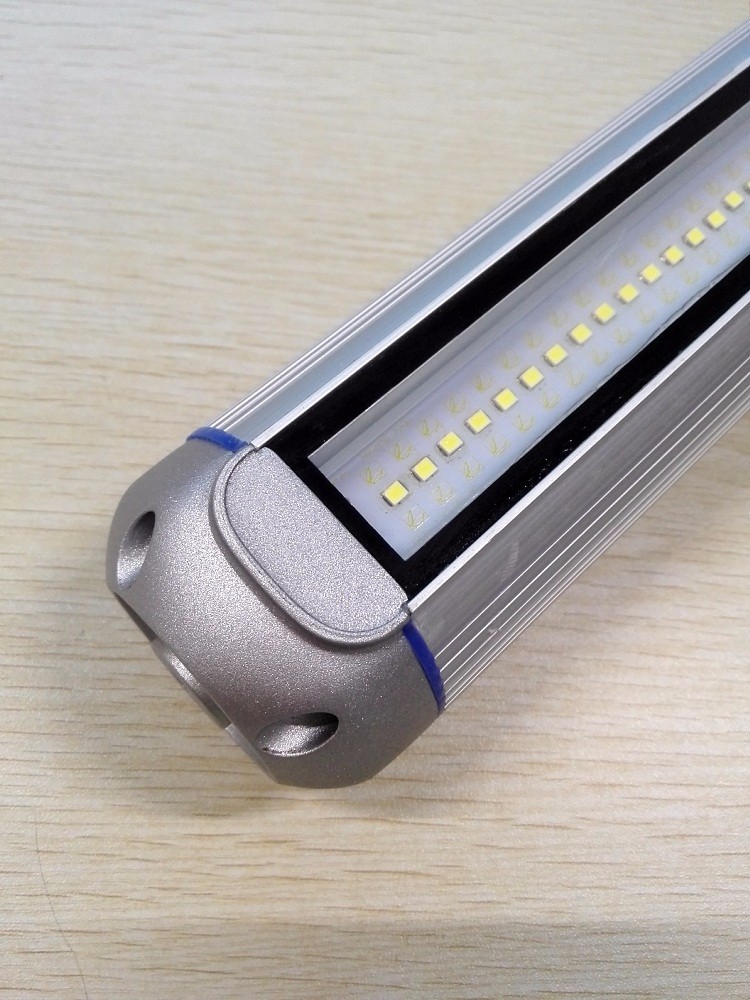

4. Pictures of Water-proof Led Machine Work Light / CNC Machine Lighting





 Drawing :





More detail :




Oil-proof and Aging Test :




Application :




5. M series  Water-proof Led Machine Work Light / CNC Machine Lighting


6. Company  Information





Brief Introduction :







Certificates :
