- Item Type:
- Machine Tool Working Lamps
- Light Source:
- LED
- Input Voltage(V):
- 24/220V
- Lamp Power(W):
- 7
- Lamp Luminous Flux(lm):
- 550
- Lamp Luminous Efficiency(lm/w):
- 75
- CRI (Ra>):
- 80
- Color Temperature(CCT):
- 3000-6000K
- Working Temperature(℃):
- -20 - 45
- Working Lifetime(Hour):
- 50000
- IP Rating:
- IP65
- Certification:
- CE, EMC, FCC, LVD, RoHS, VDE
- Emitting Color:
- White
- Lamp Body Material:
- Aluminum
- Place of Origin:
- Guangdong, China
- Brand Name:
- ONN
- Model Number:
- ONN-M1
- name:
- ONN Model M1 24V/220V IP65 LED machine tool short arm lighting
- Feature:
- IP65, anti-oil anti-corrosion
- power:
- 7W
- Warranty:
- 2 Years
- Mounting:
- Screws
- BEAM ANGLE:
- 35 Degree
- Lumen efficiency:
- 75lm/w
- business:
- manufacturer, factory
- Working temperature:
- -40-50°
- Housing color:
- silver, black
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 23X13X17 cm
- Single gross weight:
- 1.1 kg
- Package Type:
- ONN Model M1 24V/220V IP65 LED machine tool short arm lighting LED machine work light lathe lamp 1pcs/ inner box 12pcs/ outer box According to customr's requests
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 50 >50 Est. Time(days) 5 To be negotiated

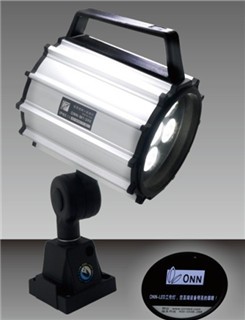

ONN Model M1 24V/220V IP65 LED machine tool short arm lighting LED machine work light lathe lamp
Features:
1. Anodized aluminum and tempered glass, resistant to corrosion and high temperature.
2. IP65 waterproof, suitable for variety of environments.
3. High efficiency LED chip with PC lens, high lumen output and lighting evenness.
4. Arms with flexible joints, convenient to control lighting direction.
5. Variety of input voltages optional to fit different applications, AC100-240V 50/60Hz, AC/DC12V,
AC/DC24V.
Applications:
CNC machine work: engraving machine, EDM machine etc. Assembly and repair work.
Laboratories.
Parameter:
| Model | Power | Voltage | IP rating | CCT | CRI | Beam Angle |
| ONN-M1-B1 | 7W | DC24V | IP65 | 5500-6000K | >80Ra | 35 degree |
| ONN-M1-B2 | 9.5W | DC24V | IP65 | 4000-4500K | ||
| ONN-M1-C1 | 7W | AC220V | IP65 | 5500-6000K | ||
| ONN-M1-C2 | 9.5W | AC220V | IP65 | 4000-4500K |
Product size drawing:
Related Products:
Company Information :
ONN Semiconductor (Shenzhen) Co., Ltd. was established in August 2005, which is located
in Bao"an District Shenzhen LED industry gathering. The company is focusing on LED Industrial
Lighting (especially "machine lights","warning lights"),LED Cleanroom Lights(Including LED panel
lights)and LED Freezer Lights.
Since the products launched market for nearly 8 years,ONN has experienced 45 trade fairs,created
8 new pratical patents,22 appearance patents and a series of related certification like CE,RoHS,IP
level authentication and so on.At the same time,ONN also passed ISO9001,with professional R&D
team which is the backbone for technology and quality, was identified National High-tech Enterprise.
Our service:
1. Produce and supply high quality led industrial lights, including led machine lights, led machine
warning signal lights, led cleanroom lights, led freezer lights and so on.
2. After-sale service. We make sure every lights from us are strictly tested before delivery. If any
quality failure, we have 18-36 months warranty based on different types of lights.
3. OEM and ODM service. We focus on led industrial lights for 13 years. We are professional and experienced.
Packaging and Shipping:
1. Our Standard Export Packing. Customized packing is avaible for MOQ order.
2. Delivery time: samples 3-5 days, mass order 5-10 days.
3. Shipping: by international express, by air or by ship.
