Click on the image to view the original image

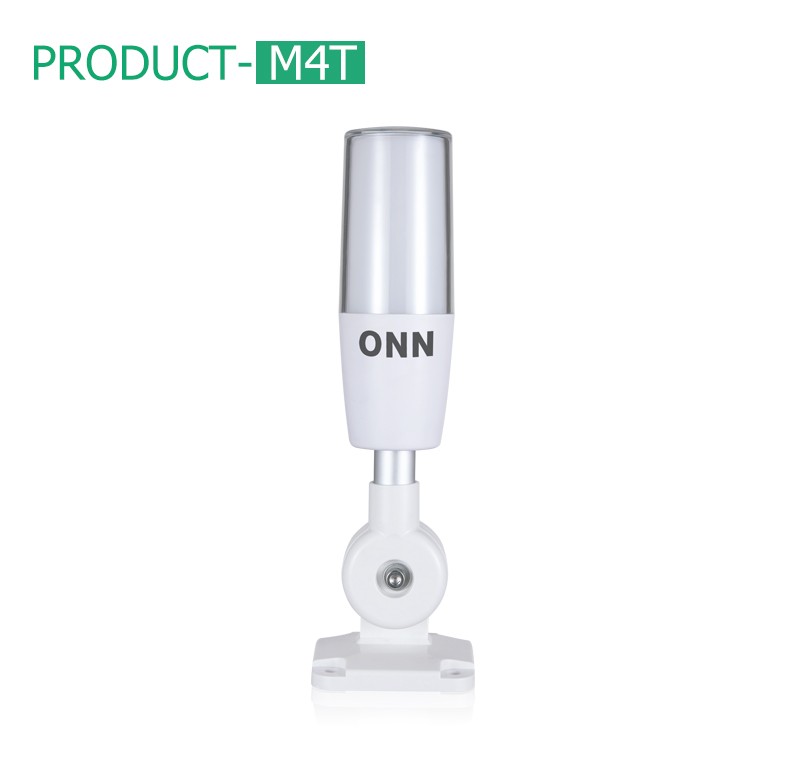

24v RYG White Led tower light RTS with economical price
Model selection:
| ONNM4T- 1 A A B C - RYG - 50 | |
| 1 2 3 4 5 6 7 8 | |
| 1 Brand | ONNM4T |
| 2. Layer | 1. 3 colors in one layer |
| 3. Mounting | A. Foldable type C. Pole plate E. pole+L shape bracket |
| 4. Voltage | A. DC12V B. DC24 C. AC100/220V |
| 5. Function | B. Steady F. Steady with buzzer S. Red flash C. Red flash with buzzer D. All flash E. All flash with buzzer |
| 6 .Wiring | C. Contact type(for 12v /110v/220v) T. PNP&NPN |
| 7 . Colors | Red Yellow Green |
| 8. Cover Dia. | 50. Φ50mm |
Technical Parameter:
Model No. | ONN - M4T lathe warning light | |||||
Voltage | DC24V | current | 20mA | Power | 0.48W | |
AC220V | 5.5mA | |||||
IP rating | IP50 | Length of cable | 45mm 65mm | Color of body | white gray | |
Light | Chip 3528 LED 0.06W/pcs | Life of whole light | 50 000 hrs | |||
Beam angle | 360° | color | Red,yellow,green | Original place | Shenzhen China | |
Packing information:
| Term | Product weight (Kg) | Weight with box(Kg) | Weight in whole carton(PCS) | Size of inner box(L*W*H)mm | Size of carton(L*W*H)mm |
| M4T Disc bar (long) | 0.22 | 5 | 12 | 415*80*80mm | 440*265*345mm |
| M4T Disc bar (short) | 0.185 | 8.5 | 24 | 415*80*80mm | 440*265*345mm |
| M4T Foldable (long) | 0.26 | 5.5 | 12 | 415*80*80mm | 440*265*345mm |
| M4T Foldable (short) | 0.225 | 5 | 12 | 415*80*80mm | 440*265*345mm |
M4T show on brand machine tools and exhibitions:
1.ONN can supply LED lighting solutions of Specific projects to you;
2.ONN can supply analysis of energy saving effect to your customers,convenient for you to recommend to your customers.
3.18 months warranty,in the period,when light is not work or some components failed,can free to replace or send a new one;
4.OEM provide;
5. Maintenance free once broken,we"ll take steps to solve problem in 48 hours.(work time:From Monday-Saturday 8:30am-18:00pm)
Onn semi-conductor Co.,Ltd was established in august 2005, which located in Bao"an district , our company focus in led machine tools light, led freezer light and cleanroom. we believe FOCUS will gather our R&D and workers strength to present our customers elite products. Ten years experience, reasonal price, 8 utility model patents, 22 apparence patents and a series of CE, FCC, RoHS, CCC certificates, all these make us build a high reputations among customers from all over the world. Thanks to our elite sales team, Our led machine light share about 20% in domestic market, among them, some are very famous machine manufacturers.
We look forward to work with you, provide you high quality product and build win win cooperation.
