- Item Type:
- Machine Tool Working Lamps
- Light Source:
- LED
- Input Voltage(V):
- 12V/24V/220V
- Lamp Power(W):
- 20
- Lamp Luminous Flux(lm):
- 2200
- Lamp Luminous Efficiency(lm/w):
- 110
- CRI (Ra>):
- 80
- Color Temperature(CCT):
- 3000-6000K
- Working Temperature(℃):
- -20 - 45
- Working Lifetime(Hour):
- 50000
- IP Rating:
- IP67
- Certification:
- CE, EMC, FCC, LVD, RoHS, UL, VDE
- Emitting Color:
- White
- Lamp Body Material:
- Aluminum
- Place of Origin:
- Guangdong, China
- Brand Name:
- ONN
- Model Number:
- ONN-M9
- Product Name:
- ONN-M9 24V/220V IP67 Industrial Light/Explosion-proof machine light
- feature:
- IP67 oil, lubricant, coolant resistant
- Rated power:
- 7W/12W/16W/20W
- Warranty:
- 2 years
- Mounting:
- Surface mounting or magnetic mounting
- Beam angle:
- 120 degree
- Lumen efficiency:
- 110lm/w
- Business:
- manufacturer, factory
- Working temperature:
- -40-50°
- Length:
- 300/400/600/800mm
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 57X60X70 cm
- Single gross weight:
- 0.8 kg
- Package Type:
- ONN-M9 24V/220V IP67 7-20W CE Certified 2 Years Industrial Light Explosion-proof machine light 1pcs/ inner box 12pcs/ outer box According to customr's requests
- Lead Time:
Quantity(Piece) 1 - 50 >50 Est. Time(days) 5 To be negotiated

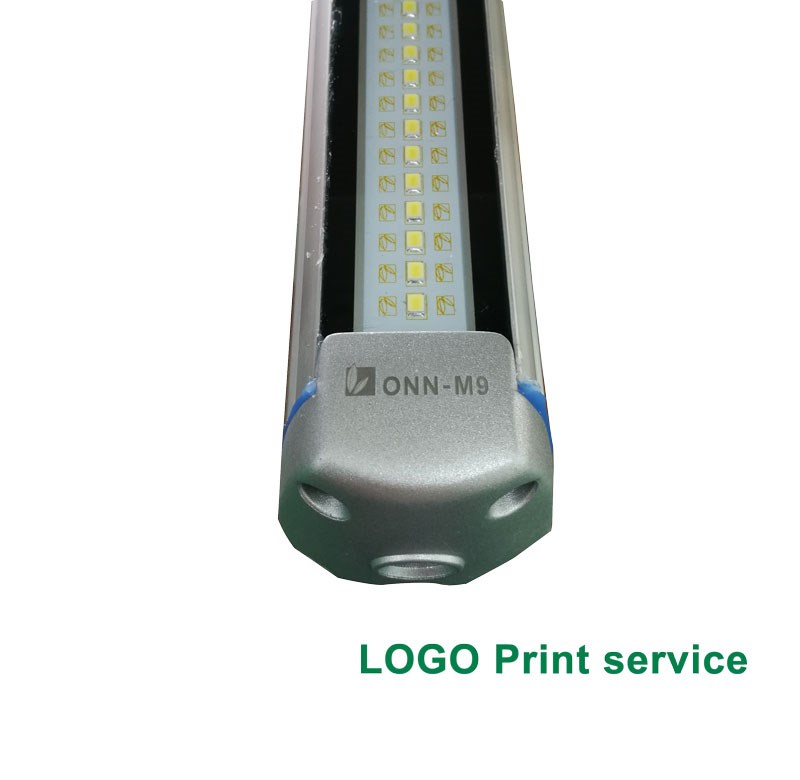

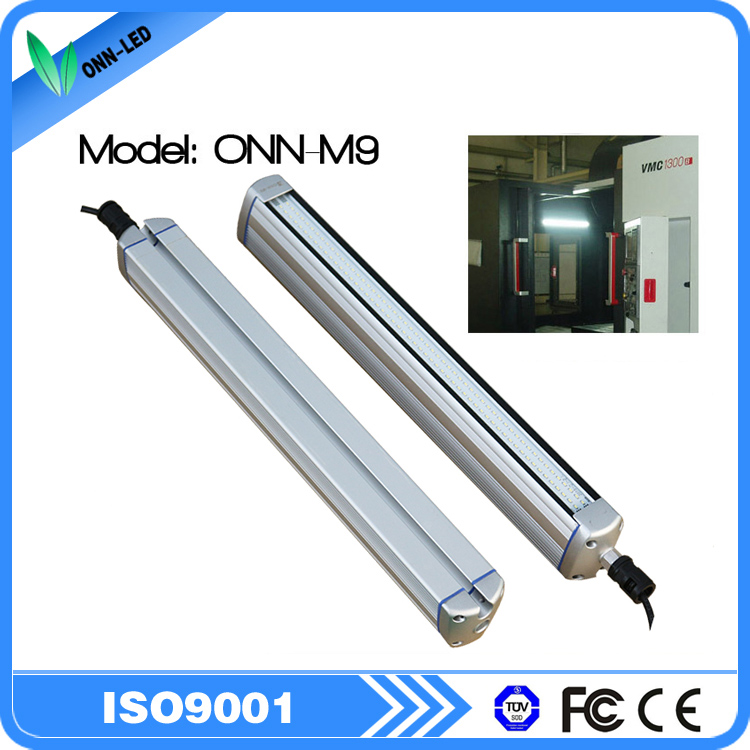

ONN-M9 24V/220V IP67 7-20W CE Certified 2 Years Industrial Light Explosion-proof machine light
Features:
1. ONN-M9 is designed for harsh environment.
2. Using anodized aluminum lamp body and tempered glass.
3. IP67 rating, resistant to high pressure wash, coolants and detergents.
4. High brightness SMD2835 LED chip, 120lm/w.
5. Frosted cover available to decrease glare.
6. Easy to install, lighting direction can be adjusted after installation.
7. Variety input voltages optional: AC100-240V 50/60Hz, AC/DC12V, AC/DC24V.
Applications:
Engraving machine, EDM, Machine center, CNC machine, Grinding machine and all kinds of machines for some tough place with high request.
Ordering code:
Technical Parameters:
More Details:
Certification:
Our service:
1. Produce and supply high quality led industrial lights, including led machine lights, led machine warning signal lights, led cleanroom lights, led freezer lights and so on.
2. After-sale service. We make sure every lights from us are strictly tested before delivery. If any quality failure, we have 18-36 months warranty based on different types of lights.
3. OEM and ODM service. We focus on led industrial lights for 13 years. We are professional and experienced.
Packaging and Shipping:
1. Our Standard Export Packing. Customized packing is avaible for MOQ order.
2. Delivery time: samples 3-5 days, mass order 5-10 days.
3. Shipping: by international express, by air or by ship.
