Home > Products > Onn M3W 24V 220V IP65 4.5W waterproof High quality flexible gooseneck led light aluminum lamp

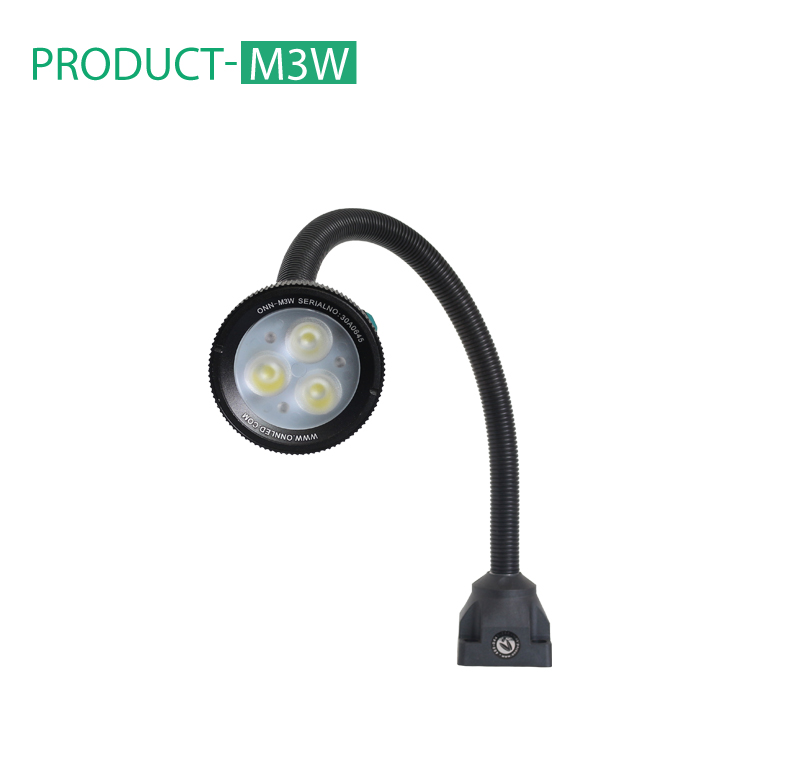

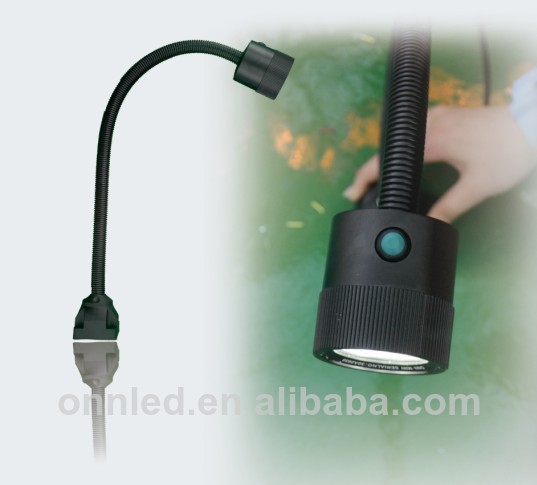

Onn M3W 24V 220V IP65 4.5W waterproof High quality flexible gooseneck led light aluminum lamp
Click on the image to view the original image
Product： views：7Onn M3W 24V 220V IP65 4.5W waterproof High quality flexible gooseneck led light aluminum lamp
Branch： ONN
Size： 62X38X46 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 21:37
  Negotiated
Product Details
Overview
Quick Details
Item Type:
Machine Tool Working Lamps
Light Source:
LED
Input Voltage(V):
12V/24V/220V
Lamp Power(W):
4.5
Lamp Luminous Flux(lm):
320
Lamp Luminous Efficiency(lm/w):
75
CRI (Ra>):
80
Color Temperature(CCT):
3000-6000K
Working Temperature(℃):
-20 - 45
Working Lifetime(Hour):
50000
IP Rating:
IP65
Certification:
CE, EMC, FCC, LVD, RoHS, VDE
Emitting Color:
White
Lamp Body Material:
Aluminum
Place of Origin:
Guangdong, China
Brand Name:
ONN
Model Number:
ONN-M3W
Product name:
M3W 24V/220V IP65 4.5W waterproof flexible gooseneck light
feature:
IP65 oil, lubricant, coolant resistant
Rated power:
4.5W
Warranty:
2 Years
Mounting:
Screws
Beam angle:
40 degree
Lumen efficiency:
75lm/w
Business:
manufacturer, factory
Working temperature:
-40-50°
Length:
550mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
62X38X46 cm
Single gross weight:
1.0 kg
Package Type:
Onn M3W 24V 220V IP65 4.5W waterproof High quality flexible gooseneck led light aluminum lamp 1pcs/ inner box 12pcs/ outer box According to customr's requests
Lead Time:
Quantity(Piece)1 - 50>50
Est. Time(days)5To be negotiated

Onn M3W 24V 220V IP65 4.5W waterproof High quality flexible gooseneck led light aluminum lamp



Application:

engraving machine,EDM,CNC machine and lighting for other machine tools.





Features:

1. ONN-M3W is a convenient LED work light which is ideally designed as a lathe lighting.

2. With 530mm flexible gooseneck arm, very convenient to position lamp and control the

lighting direction.

3. Use high lumen LED chip, 400lm output, long lifetime and energy saving.

4. Variety of input voltages optional to fit different applications, AC100-240V 50/60Hz,

AC/DC12V, AC/DC24V.



Technical Parameters:





 Technical Drawing :





 More Details:





Related Products:







Company Information :

ONN Semiconductor (Shenzhen) Co., Ltd. was established in August 2005, which is located

in Bao"an District Shenzhen LED industry gathering. The company is focusing on LED Industrial

Lighting (especially "machine lights","warning lights"),LED Cleanroom Lights(Including LED panel

lights)and LED Freezer Lights.



Since the products launched market for nearly 8 years,ONN has experienced 45 trade fairs,created

8 new pratical patents,22 appearance patents and a series of related certification like CE,RoHS,IP

level authentication and so on.At the same time,ONN also passed ISO9001,with professional R&D

team which is the backbone for technology and quality, was identified National High-tech Enterprise.





Lighting Fairs:



Our service:

1. Produce and supply high quality led industrial lights, including led machine lights, led machine

warning signal lights, led cleanroom lights, led freezer lights and so on.

2. After-sale service. We make sure every lights from us are strictly tested before delivery. If any

quality failure, we have 18-36 months warranty based on different types of lights.

3. OEM and ODM service. We focus on led industrial lights for 13 years. We are professional and experienced.



Packaging and Shipping:

1. Our Standard Export Packing. Customized packing is avaible for MOQ order.

2. Delivery time: samples 3-5 days, mass order 5-10 days.

3. Shipping: by international express, by air or by ship.
