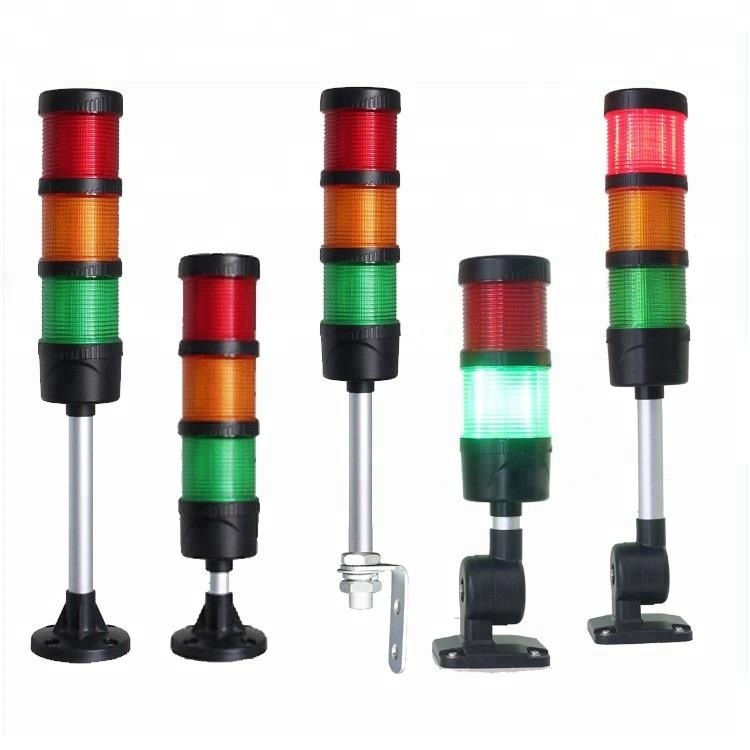

ONN M4 24V 220V AC/DC New Design Signal Light and Led Tower Light China Manufacture

Click on the image to view the original image

Product：	views：3ONN M4 24V 220V AC/DC New Design Signal Light and Led Tower Light China Manufacture
Branch：	ONN LED
Type：	Equipment Indicator Lights
Size：	58X28X23 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 21:37

Product Details

Overview

Quick Details

Type:: Equipment Indicator Lights

Light Source:: LED

Input Voltage(V):: 12/24/220V

Lamp Power(W):: 4.5

Lamp Luminous Flux(lm):: 400

Lamp Luminous Efficiency(lm/w):: 100

CRI (Ra):: 80

Color Temperature(CCT):: Red Yellow GreenWhite Blue

Beam Angle(°):: 360

IP Rating:: IP54

Certification:: BV, C-tick, CCC, CE, CQC, EMC, FCC, GS, LVD, RoHS, UL, VDE

Emitting Color:: R/Y/W/B

Lamp Body Material:: PC

Base Type:: FESTOON

Place of Origin:: Guangdong, China

Brand Name:: ONN LED

Item:: M4 AC/DC New Design Signal Light and Led Tower Light China Manufacture

Buzzer:: yes(optional)

Layer:: 1,2,3,4(optional)

Warranty:: 3-5 years

Mounting:: Plate or flexible

Colour:: White or black

Lead time:: 5-10 days

Packaging & Delivery

Selling Units:: Single item

Single package size:: 58X28X23 cm

Single gross weight:: 0.6 kg

Package Type:: ONN M4 24V 220V AC/DC New Design Signal Light and Led Tower Light China Manufacture M4( 3 layers): 12pcs/CTN. CTN dimension:45*27*35cm. 7kg/CTN.

Lead Time:

Quantity(Piece)	1 - 50	>50
Est. Time(days)	5	To be negotiated

ONN M4 24V 220V AC/DC New Design Signal Light and Led Tower Light China Manufacture

Quick details:

Brand	ONN-M4
Layer	Can be one, two, three, four layers.
POWER	1.5W-4.5W
Installation	A Foldable B Wall-mounted C Plate
Input voltage	A DC12V B DC24 C AC220V
Functions	B Continuous light; F Continuous light with buzzer; S Red flash; C Red flash with buzzer D All colors flash; E All colors flash with buzzer
Wiring	C,Contact type; Z,Power direct input type (Positive); B, Power direct input type (Negative)
Lamp color order	Color order from top to bottom R:Red Y:Yellow G:Green W:White B:Blue
Diameter	Φ60mm or Φ70mm

Packing:

Packing material	Tri-color tri-layer(Foldable type/pole plate type)	M4 Tri-layer multi-colors(Plate type)	M4 Tri-color tri-layer(L-shape plate type)	M4 four layer four colors(Pole plate type)
N.W.:/pc (Kg)	0.325	0.3	0.45	0.315
G.W.:/CTN (Kg)	6.1	5.8	7.6	6
QTY/CTN(pcs)	12	12	12	12
Inner box(LWH)mm	4158080mm	4158080mm	4158080mm	5109075mm
Carton size(LWH)mm	440265345mm	440265345mm	440265345mm	580280233mm

Note: the length of rod plate is made according to customer requirements, so will affect the measurement of gross specific orders

Company information:

Shenzhen ONN Semiconductor Lighting Co., Ltd, established in 2005, is a leading manufacturer of led industrial lightings in China. We are now focused on led machine light, led warning light, led clean room light and led freezer light.

With 10 years development, we have become the leader of producing and supplying led industrial lighting in China. We have gained a 60% domestic market, and our products have been exported widely to the world with fast increase year by year. Our partners include DAS Auto, Foxconn, etc. Our aim is to become the biggest and best supplier of led industrial lights from China to the world.

We will continue to do our best to develop and produce high quality and price competitive products. ONN would like to work with you to make contribution to the lower carbon world.
