ONN-M4F 100-240V high quality Led equipment signal indicator light

Click on the image to view the original image

Product：	views：2ONN-M4F 100-240V high quality Led equipment signal indicator light
Branch：	ONN
Type：	Equipment Indicator Lights
Size：	42X9X8 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 21:37

Product Details

Overview

Quick Details

Type:: Equipment Indicator Lights

Light Source:: LED

Input Voltage(V):: 12/24/220

Lamp Power(W):: 4

Lamp Luminous Flux(lm):: 400

Lamp Luminous Efficiency(lm/w):: 100

CRI (Ra):: 80

Beam Angle(°):: 360

IP Rating:: IP66

Certification:: CCC, CE, EMC, FCC, RoHS

Emitting Color:: RYGBW

Lamp Body Material:: Aluminum

Base Type:: ROUND

Place of Origin:: Guangdong, China

Brand Name:: ONN

Item Type:: Led Equipment Indicator Light

Voltage:: 12V/24V/220V

Light source:: SMD 2835

Working temperature:: -20-40 degree

Optional Color:: R Y G B

Optional Specification:: Flash / Buzzer

View angle:: 360 degree

Bright spot:: Back light advertising design

Mounting:: Plate type /Foldable base /L-plate fixed

Honor customer:: DMG Mori / ROMI / Videojet

Packaging & Delivery

Selling Units:: Single item

Single package size:: 42X9X8 cm

Single gross weight:: 0.6 kg

Package Type:: Led Equipment Indicator Light inner box&PE bag / pcs ; 12pcs/ outerbox According to customr's requests

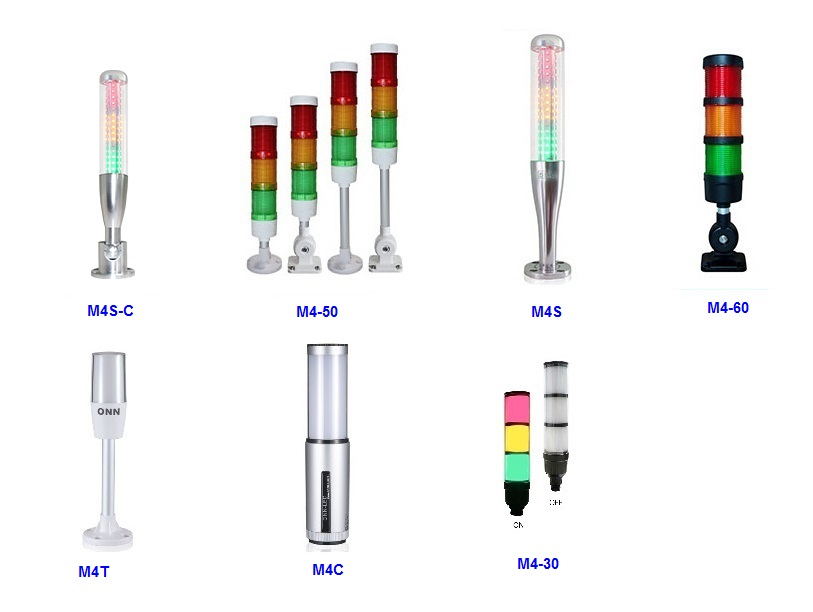

Picture Example:

Lead Time:

Quantity(Piece)	1 - 12	13 - 100	101 - 200	>200
Est. Time(days)	5	7	8	To be negotiated

ONN-M4F High quality Led equipment signal indicator light RYGBW 24V / 120V / 100-240V

Product Features :

1. Patented design . Beautiful appearance .

2. Customized Blue back light Logo . Highlight your brand .

3. Modular Design , convenient for changing color turn . 1-5 layers , RYGBW

4. Optional Function : Flash / Buzzer .

5. Mounting Method : Plate type / Pole Plate Type / Foldable Type / L shape sheet .

6. Customized Pole Lenght / Thread Size / Cable Length .

Product Drawing :

Technical Parameters :

M4F - 5 A A B C- RYGBW- 60
1 2 3 4 5 6 7 8

1	Model No.: M4F
2	Layers: 1 layer 2 layers 3 layers 4 layers 5 layers
3	Installation: A. Foldable type C. Pole plate type E. L shape mounting bracket
4	Voltage: A. DC12V B. DC24V C. AC100-240V
5	Function: B. Continous light F. With buzzer no flash S. Red flash no buzzer C. Red flash with buzzer D. All flash E. All flash with buzzer
6	Wiring Mode : C. Contact Type Z. Input Directly common line is positive ( NPN ) B . Input directly common line is negative ( PNP ) T. PNP / NPN
7	Optional Color : R (red) Y (yellow) G (green) W (white) B (blue)
8	Diameter: 60mm / 70mm

Wiring Drawing :

Package Data :

Item No.	Qty/carton	Carton size	Total NW.	Total GW.
M4-3 layers	12 pieces	440270350mm	5.4kg	7.6kg
M4-4 layers	12 pieces	580340233mm	6kg	7.6kg
M4-5 layers	12 pieces	580340233mm	7kg	8kg

Application :

Numerically-controlled machine tool equipment,textile machinery,security and protection,security inspection device,electronic machine,automated production line,LED package,spectral equipment,laser equipment,food filling equipment,ceramic machinery,autowarehouse etc man-machine interactive interface .
