24v/230v 80cn long water-proof LED lighting Lamp

Click on the image to view the original image

Product：	views：324v/230v 80cn long water-proof LED lighting Lamp
Branch：	ONN
Size：	37X22X20 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 21:37

Product Details

Overview

Quick Details

Item Type:: Machine Tool Working Lamps

Light Source:: LED

Input Voltage(V):: 24V/220V

Lamp Power(W):: 9.5

Lamp Luminous Flux(lm):: 950

Lamp Luminous Efficiency(lm/w):: 100

CRI (Ra>):: 82

Color Temperature(CCT):: Pure White

Working Temperature(℃):: -20 - 45

Working Lifetime(Hour):: 50000

IP Rating:: IP65

Certification:: CE, FCC

Emitting Color:: White

Lamp Body Material:: Aluminum Alloy

Place of Origin:: Guangdong, China

Brand Name:: ONN

Model Number:: M2

Item type:: led machine tool light

Light source:: High power led chips,1w/pcs

Power:: 7w/9.5w

Color temperature:: 4000-4500K;5500-6000K

Beam angle:: 60 degrees

OEM:: Acceptable

Can print your logo in lamps:: Sample order accept

Installation:: Fixed base with screws

Warranty:: 2 years

Certificate:: CE,FCC

Packaging & Delivery

Selling Units:: Single item

Single package size:: 37X22X20 cm

Single gross weight:: 3.5 kg

Package Type:: 2pcs/box economical packing

Lead Time:

Quantity(Piece)	1 - 3	4 - 200	>200
Est. Time(days)	3	7	To be negotiated

Application

Machine interior lighting, the places which need local lighting such as carved machine, sparks machine, CNC machine, machining center,CNC lathes, edm machine and so on.

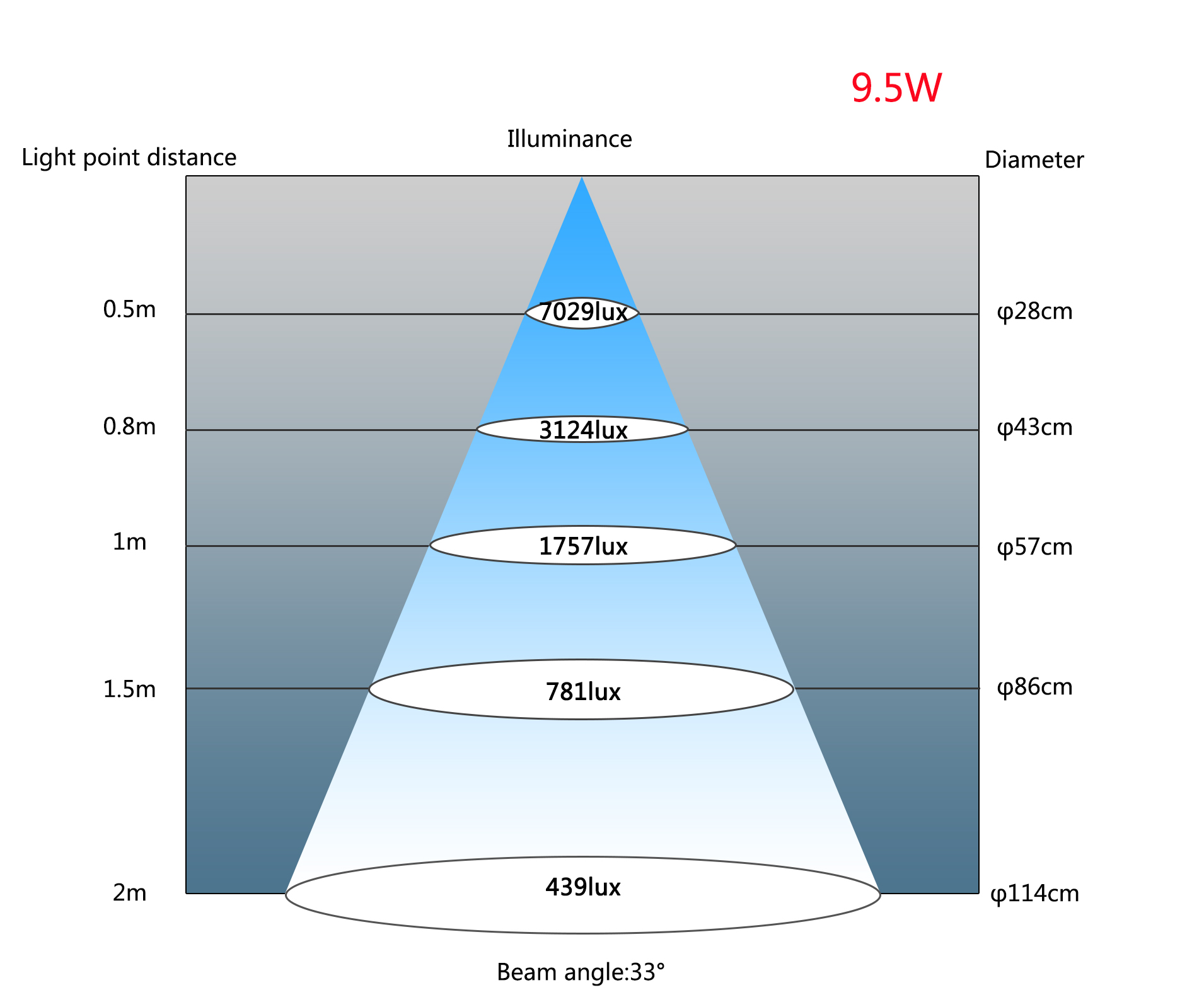

Product Spec

Light source	Hi-power 1W/PCS	Power	1) 7W 2) 9.5W
Mounting	Fixing by screws	Central LUX	70CM1100/ 1800-1900 LUX
CCT	1) 5500-6000K 2) 4000-4500K	Voltage	1)24V AC/DC 2)100-240V AC
Central flux	70cm: 1300lm	Driver:	Isolated(220v)
IP grade	IP65	Arm Length	460mm(standard) Other chice: 570/690/770mm
Cable length	1.2m	Emitting angle	60deg.

Detailed Images

Features:

-Flexible work arm: 3 joints 360degrees rotate freely.

-Machine lamps, work lamps, machine lamps and Task lights with LEDlamps.

-Machine Lights in different performance classes and durable, robust and energy-saving designs. Depending on the model for fixed mounting on the machine or the workplace.

-Work lights with magnetic are also ideal for flexible usage in maintenance or repair area.

-All work lights are for professional use on machines, inspection stations, workplaces, at the workbench, inter alia, designed and comply with the safety regulations.

Packing

Model Name(MM)	M2 ( 2pcs M2 ( 2pcs / Inner box)	M2（1pc / Inner box）
Gross Weight / Cnt (Kg)	1.4	1.4
Packing Qty (PCS)	12	12
Gross Weight / Cnt (Kg)	19.5	20.5
Inner box size（LWH）mm	370200220	345130260
Outer box size（LWH）mm	620380460	700400545

Marks

Payment

1)We prefer customer to pay by paypal for sample.

2) T T in advance for regular order.

Delivery time:

1) 5-7 days.

Transportation:

1)By DHL/Fedex/UPS

2)By sea

Order Number

	Voltage	Watt.	CCT.
ONN-M2-B1-7	AC/DC 24V	7W	5500-6000K
ONN-M2-B2-7	AC/DC 24V	7W	4000-4500K
ONN-M2-C1-7	AC 100-240V	7W	5500-6000K
ONN-M2-C2-7	AC 100-240V	7W	4000-4500K
ONN-M2-B1-9	AC/DC 24V	9.5W	5500-6000K
ONN-M2-B2-9	AC/DC 24V	9.5W	4000-4500K
ONN-M2-C1-9	AC 100-240V	9.5W	5500-6000K
ONN-M2-C2-9	AC 100-240V	9.5W	4000-4500K

About Us

ISO9001 Certificate

Shenzhen ONN Semiconductor Lighting Co., Ltd, established in 2005, is a professional manufacturer of led cnc machine lights, specilized in industrial led lighting. We have been mainly foucused on LED machine lights(including led machine work light and led signal tower light), and aim to be the NO.1 LED machine light in the world.
