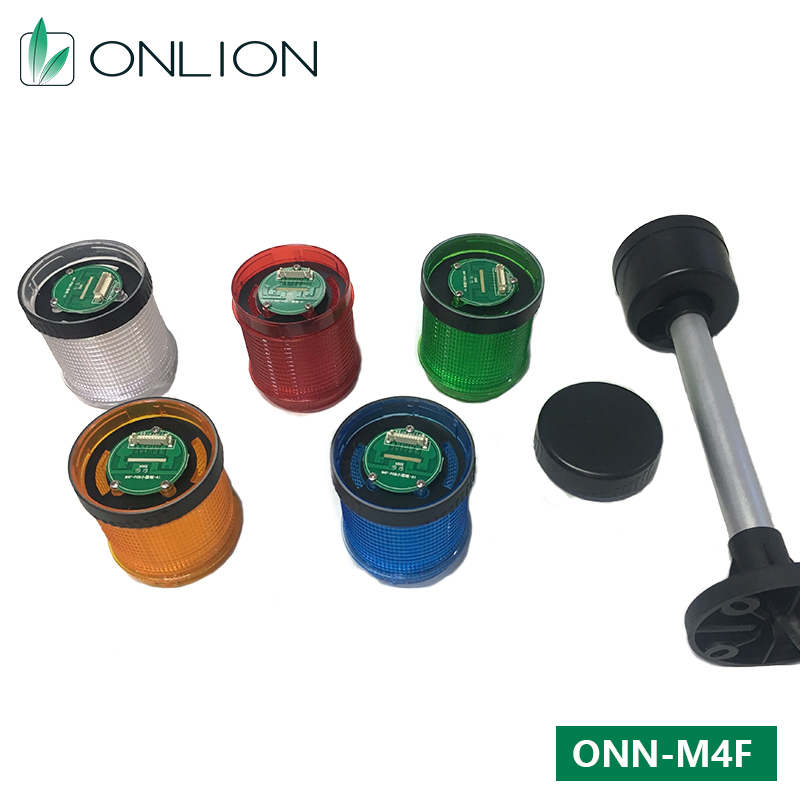

LED warning light M4F DC24V modular signal tower light
Products features
1. Modular design, user can add or remove modules freely.
2. Lighting mode and buzzer mode can be changed by user. Flash light, steady light, buzzer off, full volume buzzer, low volume buzzer can be implemented by DIP switch.
3. Three kinds of bases are available, easy to install.
4. DC12V, DC24V, AC100-240V are optional, and modules are universal for all models.
*This design is very convenient for wholesalers to reduce stock!
Ordering code
ONN - M4F 5 A C T RYGBW 60 | |
1 2 3 4 5 6 | |
1.Layer | 1: Single layer, 2.Two layers, 3.Three layers, 4. Four layers, 5 Five layers |
2. Mounting type | A: Foldable type, C: Pole and plate E: L bracket |
3. Voltage | B: DC24V, C: AC100-240V(50/60Hz) |
4.Connect type | C: Contact type, T: PNP& NPN |
5. Color | R: Red, Y: Yellow, G:Green, B:Blue, W:White |
6. Diameter | 60: φ60mm |
Dimension
Replace modules
Function set-up
Packing:
Packing material | Tri-color tri-layer(Foldable type/pole plate type) | M4 Tri-layer multi-colors(Plate type) | M4 Tri-color tri-layer(L-shape plate type) | M4 four layer four colors(Pole plate type) |
Net weight/pc (Kg) | 0.325 | 0.3 | 0.45 | 0.315 |
Gross weight/CTN (Kg) | 6.1 | 5.8 | 7.6 | 6 |
Quantity/CTN(pcs) | 12 | 12 | 12 | 12 |
Inner box(L*W*H)mm | 415*80*80mm | 415*80*80mm | 415*80*80mm | 510*90*75mm |
Carton size(L*W*H)mm | 440*265*345mm | 440*265*345mm | 440*265*345mm | 580*280*233mm |
Note: the length of rod plate is made according to customer requirements, so will affect the measurement of gross specific orders
Repair service:
1,The warranty of the products is 18 months. If broken in natural within the warranty, please bring invoice and date in the light to repair free.
2,The following cases are not covered by the warranty, service charges paid by:
(1)Altered fixture dates
(2)The broken is because of improper use by user;
(3)The body of light and bundled products is broken or lost can’t warranty;
(4)The broken reason is not natural, such broken by wrong input voltage and set up to lead to light can’t work;
(5)Dismantle and repair have not agree with factory, repair and alter by the other repair person not in authorized service station;
(6)The broken is caused by fires, earthquakes, floods, lightning or other natural disasters, pollution and abnormal voltage.
(7)Lights need to repair because rodents, salt spray, corrosion.
3,Exceed warranty period, repair will be charge fees as standard. Service charge = repair fees + material fees + freight fees.
