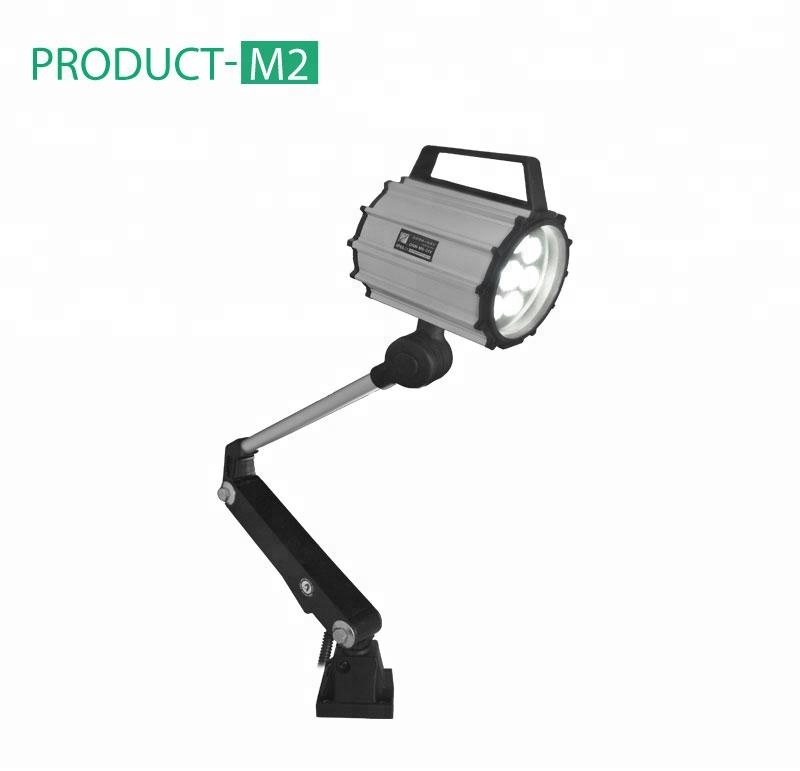

Arm-mounted led machine light / work light 9.5W ce approved

Click on the image to view the original image

Product：	views：3Arm-mounted led machine light / work light 9.5W ce approved
Branch：	ONN
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 21:37

Product Details

Overview

Quick Details

Item Type:: Machine Tool Working Lamps

Light Source:: LED

Input Voltage(V):: 24V/220V

Lamp Power(W):: 9.5

Lamp Luminous Flux(lm):: 855

Lamp Luminous Efficiency(lm/w):: 90

CRI (Ra>):: 75

Color Temperature(CCT):: Pure white,cool white

Working Temperature(℃):: -20 - 50

Working Lifetime(Hour):: 50000

IP Rating:: IP65, IP65

Certification:: CE, FCC

Emitting Color:: White

Lamp Body Material:: Aluminum Alloy

Place of Origin:: Guangdong, China

Brand Name:: ONN

Model Number:: M8

Item type:: arm-mounted luminaires

Light source:: hi-power led,1w/pc

Power Watts.:: 9.5w arm-mounted luminaires

CCT:: 4000-4500K,5500-6000K

Beam angle:: 60 degress

Center illuminance:: 70cm:1700-1800LUX

Machine lamp arm size:: down arm 200mm,up arm 270mm

Installation:: Base fixed by screws.

Certificate:: CE,FCC

Supply Ability

Supply Ability:: 10000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: 1pc/inner box,12pcs/carton;
ourter package:53*53*33cm,G/W:20.9KG;

Port: shenzhen,

Arm-mounted led machine light / work light 9.5W ce approved

Application:

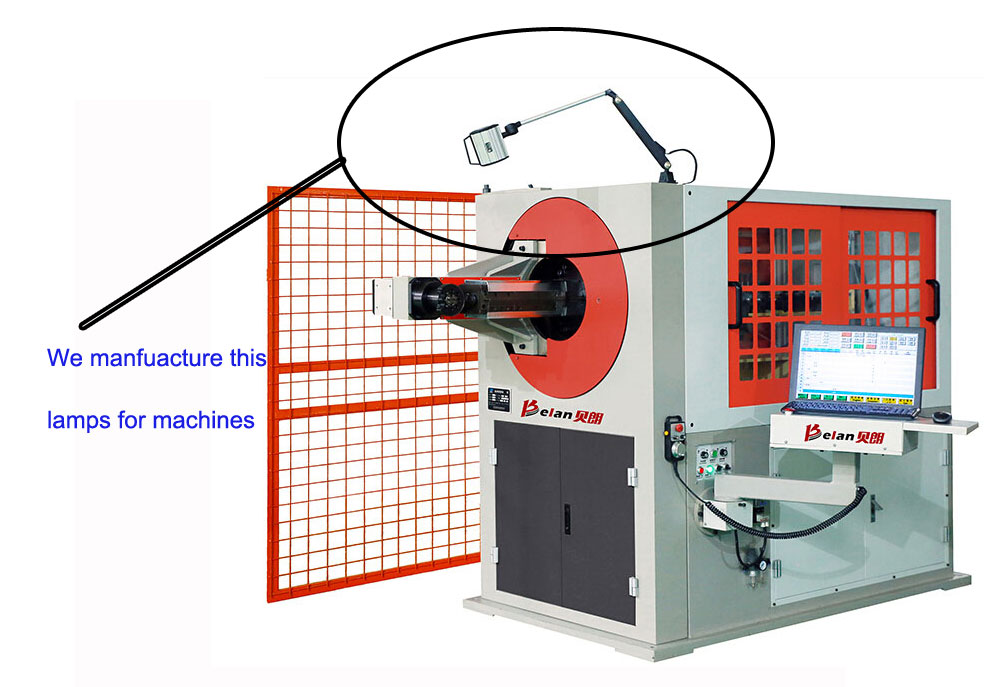

A light source with led light, condenser closed, soft light, there is a combination of multiple active site work lights can be rotated at any angle, the use of flexible, convenient, and has a waterproof, anti-oil, anti-erosion holders, etc., to adapt to a variety of large, medium and small machine tools, CNC bed, drilling and milling, drilling, Lighting grinder, combination machine tools, machining centers and general machine tools, vertical or horizontal mechanical equipment can also be used fitter, laboratories, maintenance, rubber-molding machines and other

work for lighting.

Product feature

1.Waterproof Lighting Head :Highly enclosed features, waterproof lighting head,
tempered glass, and wires, avoid any water or oil entering into the illumination head;
2.Sturdy Construction : The entire unit is extruded from aluminum material, anode treated for scratch prevention. The base is made of engineering plastic, durable and well resistant to electric shock and high temperature;
3.Heat Dissipation:Use aluminum material to make good heat dissipation that maintains constantly low temperature lighting, and use high power and long lifespan led chips as well as prevents light fades from long-term use;
4.Convenient Adjustment:Multi-position swiveling base constructed of steel ball and articulated arms permit positive and convenient adjustment to any lighting direction;
5.Elegant Appearance:The smooth, slim-line, and classic appearance will create elegant visual effect on your machine tool;
6.Energy Saving:Compare with halogen lamp, It"s 5 times more lifespan low energy consumption and electricity costs saving;
7.No Flickering:No problem of flickering and provides more steadily brightness while machine is working and vibrating;
8.Supply voltage:24V AC/DC. 100V~240V AC;
9.Quality Guarantee:In accordance with CE/FCC regulations;
10.Enclosure Type :IP65

11. Arm-mounted luminaires provide a wide-range light and above all precisely adjustable lighting of machines, workshops, laboratories and assembly workplaces.

Technical Parameter:

Brand	ONN	Surface Temperature	-20 to 50°C
Light source	1W/PCS	Mounting	fixed by light clamp and screws
Lifespan of light source	50000 hours	Light efficiency	90Lm/w
View angle	60°	IP grade	IP65
Central LUX	70cm:1700-1800Lux	Lamp power	9.5w

Model	Power(W)	Rated current	Voltage	CCT
ONN-M8-B1	9.5	400mA	DC24V	5500-6000K
ONN-M8-B2	9.5	400mA	DC24V	4000-4500K
ONN-M8-C1	9.5	43mA	AC220V	5500-6000K
ONN-M8-C2	9.5	43mA	AC220V	4000-4500K

Product size drawing:

Application:

Packaging & Shipping

1pc/inner box,12pcs/carton; ourter package:53*53*33cm,G/W:20.9KG ;
we accept any ways of shipping,include express,by sea and by air.
Delivery time:7 days for sample,10-15 days for mass production.

Our Services

1.ONN can supply LED lighting solutions of Specific projects to you;

2.ONN can supply analysis of energy saving effect to your customers,convenient for you to recommend to your customers.

3.3 years warranty,in the period,when light is not work or some components failed,is free to repair;

4.Will be replied email and RFQ in 24hrs.

5.OEM accept.
