Home > Products > ONN-M4S DC24V Tri-color Warranty 2 years hot sell signal Light

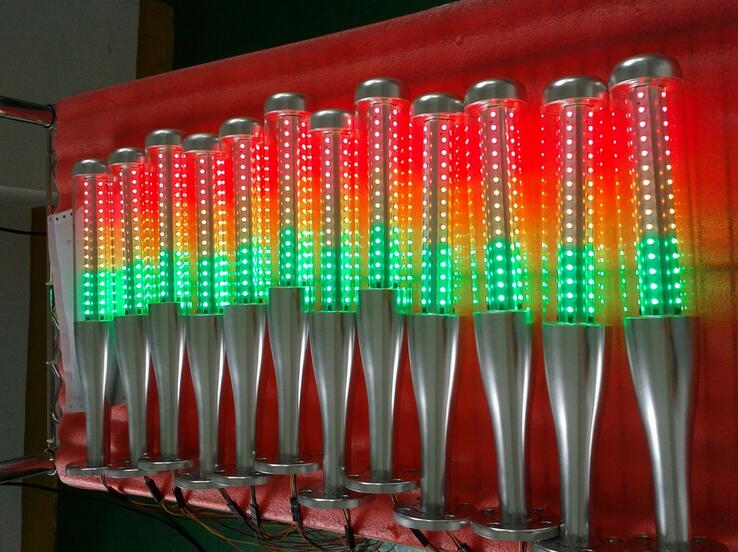

ONN-M4S DC24V Tri-color Warranty 2 years hot sell signal Light
Click on the image to view the original image
Product： views：2ONN-M4S DC24V Tri-color Warranty 2 years hot sell signal Light
Branch： ONN
Type： Equipment Indicator Lights
Size： 44X27X35 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 21:37
  Negotiated
Product Details
Overview
Quick Details
Type:
Equipment Indicator Lights
Light Source:
LED
Input Voltage(V):
12/24/220
Lamp Power(W):
5
Lamp Luminous Flux(lm):
450
Lamp Luminous Efficiency(lm/w):
90
CRI (Ra):
80
Color Temperature(CCT):
RGB
Beam Angle(°):
360
IP Rating:
IP54
Certification:
BV, CCC, CE, CQC, EMC, ETL, FCC, GS, LVD, RoHS
Emitting Color:
RGB
Lamp Body Material:
Aluminum
Base Type:
2G11
Place of Origin:
Guangdong, China
Brand Name:
ONN
Item type:
ONN-M4S DC24V Tri-color Warranty 2 years hot sell signal Light
Voltage:
24V
lifespan:
50000 Hours
luminous flux:
90Lm/W
Lampshade:
Imported transparent PC tube
Optional Specification:
FlashBuzzer
View angle:
360 degree
Color turn:
Red Yellow Green
Mounting:
Fixedbase
Application:
Especially for cnc machine

Packaging & Delivery

Selling Units:
Single item
Single package size:
44X27X35 cm
Single gross weight:
0.95 kg
Package Type:
ONN-M4S DC24V Tri-color Warranty 2 years hot sell signal Light 1pcs/ inner box; 12pcs/ outer box According to customr's requests
Lead Time:
Quantity(Piece)1 - 50>50
Est. Time(days)5To be negotiated

ONN-M4S DC24V Tri-color Warranty 2 years hot sell signal Light





 Application :





Numerically-controlled machine tool equipment,textile machinery,security and protection,security inspection device,electronic machine,automated production line,LED package,spectral equipment,laser equipment,food filling equipment,ceramic machinery,autowarehouse etc man-machine interactive interface.





Product Features :





1.  Adopt imported PC transparent tube , chips in linear arrangement,elegant appearance,attractive,anti-corrosion,anti-high temperature.



2. Soft curve design,pure metal texture,fine workmanship,appearance looks like baseball bat,enhancing the value of equipment.


3. Your brand can be shown on the lampbody , highlight the advertising effect of brand.

4.  LED lemits color indicator light,fashion,clear and attractive.

5.  High lumen SMD2835 , 50000 hours" long lifespan,avoiding the troubles of replace the the light source or indicator light.

6. Imported long-life capacitors ,ensure high-quality power-driven .

7. Aluminum PCB to ensure good heat dissipation and low light decline .

8.  Directly plug installation , simple , practical , convenient for transportation .

9. Patent design of “utility model” and “appearance”.

10. Adopted by international famous machine manufacture.(DMG brand of Sandvi Group).



Technical Parameters :





BrandONNSurface Temperature<50°C
Light sourcesmd 2835MountingFixed Base
Lifespan 50000 hoursVoltageDC24V
View angle360 °Rated Current80-250mA
Power(W)1-5WIP gradeIP50










ONN-M4S  - A 3 B B B - 50
  1       2        3  4 5  6 7    8

   1    Brand ONN
   2   Model No.: M4S
   3    Appearance : A . Baseball shape       B. Fodable Type
   4    Color : 3 color ( RYG )
   5    Voltage:  B. DC24V
   6    Wiring Mode : C. Contact Type      Z. Input Directly common line is positive ( NPN ) B. Input directly common line is negative ( PNP )
   7

Function:  B. Continous light    F. With buzzer no flash    S. Red flash no buzzer

C. Red flash with buzzer     D. All flash   E. All flash with buzzer

   8     Diameter: 50mm







Product Size Drawing :








More Details :



Related Products :




Certifications:



Company Information :



ONN Semiconductor (Shenzhen) Co., Ltd. was established in August 2005, which is located in Bao"an District Shenzhen LED industry gathering. The company is focusing on LED Industrial Lighting (especially "machine lights","warning lights"),LED Cleanroom Lights(Including LED panel lights)and LED Freezer Lights.



Since the products launched market for nearly 8 years,ONN has experienced 45 trade fairs,created 8 new pratical patents,22 appearance patents and a series of related certification like CE,RoHS,IP level authentication and so on.At the same time,ONN also passed ISO9001,with professional R&D team which is the backbone for technology and quality, was identified National High-tech Enterprise.





Lighting Fairs:







Our service:



1. Produce and supply high quality led industrial lights, including led machine lights, led machine warning signal lights, led cleanroom lights, led freezer lights and so on.

2. After-sale service. We make sure every lights from us are strictly tested before delivery. If any quality failure, we have 18-36 months warranty based on different types of lights.

3. OEM and ODM service. We focus on led industrial lights for 10 years. We are professional and experienced.
