Click on the image to view the original image

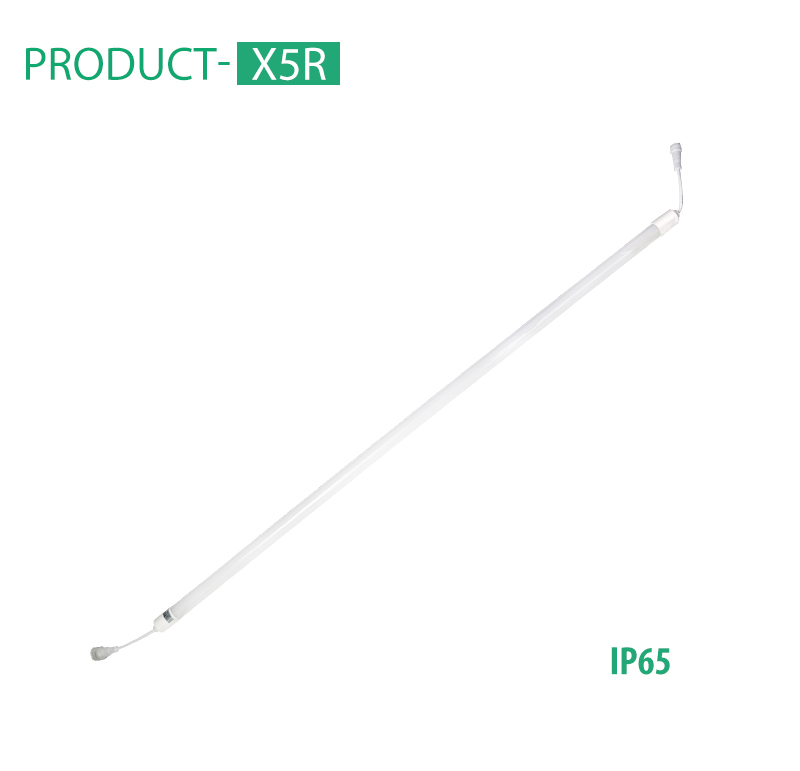

waterproof 3/4/5/6ft commercial refrigerator led lights
Features:
1. ONN-X5RS is designed for cooler lighting.
2. IP65 waterproof, suitable for variety application.
3. Use PC housing and aluminum PCB, safe and durable.
4. Length can be customized according to your application.
5. High lumen SMD2835 LED chip, efficiency up to 80-90m/w, energy saving.
6. Built-in driver, very convenient for wiring.
7. Normal clips and magnet clips optional, very easy to install.
8. Connectable design, 150W max. in a row.
Dimension:
What length we can provide:
| Model | Tube length(mm) | Fitting length(mm) | Voltage | Power |
| X5RS-600 | 584 | 220V AC(50/60Hz) | 6.5W | |
| X5RS-900 | 885 | 220V AC(50/60Hz) | 10W | |
| X5RS-1100 | 1090 | 220V AC(50/60Hz) | 12W | |
| X5RS-1200 | 1190 | 220V AC(50/60Hz) | 13W | |
| X5RS-1500 | 1490 | 220V AC(50/60Hz) | 15W | |
| Installation | 1. Metal clips(standard) 2. Double faced adhesive tape 3. By magnet | |||
| Size | W.14.5 x H.12mm | Cable | 0.8M | |
| Beam angle | 120 degree | |||
| Protection | IP65 | |||
| efficiency | 80-90Lm/W | |||
| CCT | 3000k, 4000k, 6000k | |||
| CRI: | >80Ra | PF | >0.9 | |
| Driver | Internal driver, Non-isolated | |||
| Lifetime | 40,000H | Material | Milky PC | |
| Working temp. | -20~45℃ | Working humidity | 10~90% | |
Application:
Cooler door, refrigerator, chiller, open cooler, fresh light, shelf lighting, bakery, beverage cooler, freezer, horizontal / vertical freezer lighting.
Where need waterproof led lights, you can choose our X3 series. 220V directly connect to main power, cost saving, diversified Installation method, which meet your various demand. Magnet base is a new way to save labor cost for you!
ONN Semiconductor Lighting (Shenzhen) Co.,Ltd.,was established in August 2005 which located in Bao"an district which is Shenzhen industry gathering;Our company is focusing on led "industrial lighting" especially in "machine lights","led warning lights","led cleanroom lights" and "led freezer lights.
Since the products launched market for nearly 8 years,ONN has experienced 50 trade fairs,created 8 new pratical patents,22 appearance patents and a series of related certificate like CE,RoHS,FCC,CCC,IP level authentication and so on.At the same time,ONN also passed ISO9001,with professional R&D team which is backbone for technology and quality,was indentified as Natioinal High-tech Enterprise.
1.ONN can supply LED lighting solutions of Specific projects to you;
2.ONN can supply analysis of energy saving effect to your customers,convenient for you to recommend to your customers.
3.18 months warranty,in the period,when light is not work or some components failed,can free to replace;
4. Maintenance free once broken,we"ll take steps to solve problem in 48 hours.(work time:From Monday-Saturday 8:30am-18:00pm)
