Home > Products > ONN M4C Tri colors LED warning light 220v

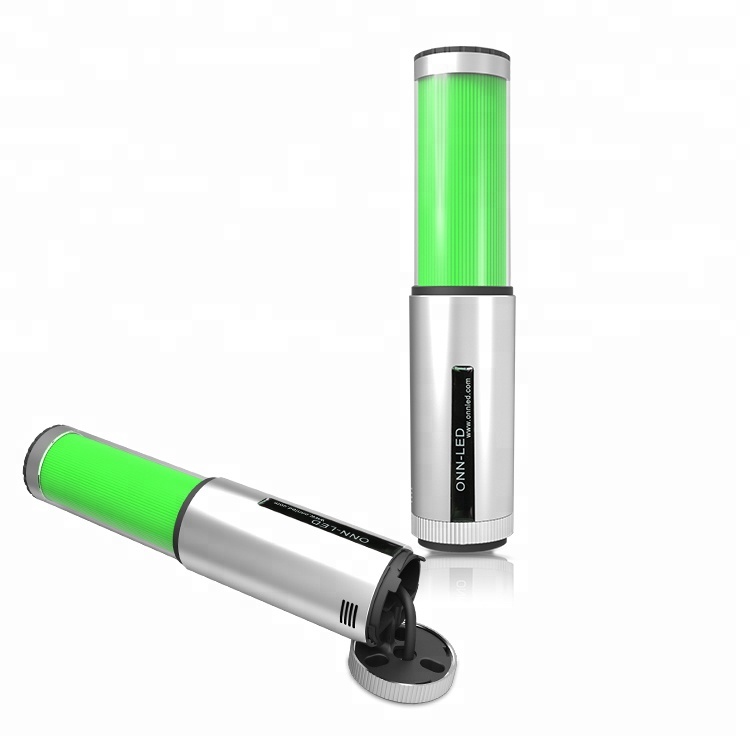

ONN M4C Tri colors LED warning light 220v
Click on the image to view the original image
Product： views：2ONN M4C Tri colors LED warning light 220v
Branch： ONN
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 21:37
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Guangdong, China
Light Source:
LED, LED 3528
Input Voltage(V):
220
Lamp Luminous Flux(lm):
100
CRI (Ra>):
80
Working Temperature(℃):
-20-45
Working Lifetime(Hour):
50000
IP Rating:
IP54
Certification:
EMC, CE, CE
Warranty(Year):
2
Brand Name:
ONN
Model Number:
M4C
Power Supply:
DC, AC
Item Type:
LED waring lightbar
Lifespan of light source:
50000hours
IP Grade:
IP50
Voltage:
12/24/220
Mounting:
Fixed base
View Angle:
360°
Color:
R/Y/G
Function:
diversity
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1pcs/foam bag,several pcs/carton;
According to your request.
Port
Shenzhen/Hongkong,China
Lead Time:
Quantity(Pieces)1 - 34 - 100 >100
Est. Time(days)37To be negotiated

ONN M4C Tri colors LED warning light 220v



Main picture:



Data sheet:



Model

ONN - M4C Warning light

Voltage

DC12V/DC24V/

AC220V

Input current

60mA~190mA

Power

1.4W~4.5W

Ingress Protection

IP50

Wire output

Approx.0.5m

Body color

Silver

light source

SMD2835

Lifespan

50,000hrs

Surface Temperature

<50℃

Buzzer

>90dB

Flash frequency

60-70/min

Material

Lamp cover: PC  Lamp housing: ABS

Emitting angle

360°

Color

R/Y/G

Origin

Shenzhen, China

Certificate

CE,Fcc















M4C Code Principle:





  ONNM4C- 1  A   A   B   C - RYG - 60

       1          2  3   4    5   6     7     8



1. Brand:

ONNM4C

2.     Layer:

1. one

3. Mounting

A. Foldable  D. Stand upright

4. Voltage:

A.DC12V  B. DC24  C. AC220V

5. Function:

B. Steady   F. Steady with buzzer  S. Red flash  C. Red flash with buzzer    D.All flash                    E. All flash with buzzer

6. Wiring:

C. Contact type T. direct Input (common+/-)

7. Color:

R:Red  Y:Yellow  G:Green

8. Diameter:

60.Φ60mm



Details&Application:






Standard picture/size/wiring diagram:



Installation guide:



Package:





Model

net weight (Kg)

Single carton weight(Kg)

Packing Quantity (PCS)

Inner packing size(L*W*H)mm

Outer packing size(L*W*H)mm

M4C

0.270

5.7

12

415*80*80mm

440*265*345mm







Lead time:

5-7 working days.



Transportation:

By air               By express              By sea



Payment:

Paypal or T/T.



Similar  led indicator light reference:





LED machine tool work lamp:







Company Information

Onn semi-conductor Co.,Ltd was established in august 2005, which located in Bao"an district , our company focus in led machine tools light, led freezer light and cleanroom. we believe FOCUS will gather our R&D and workers strength to present our customers elite products. Ten years experience, reasonal price, 8 utility model patents, 22 apparence patents and a series of CE, FCC, RoHS, CCC certificates, all these make us build a high reputations among customers from all over the world. Thanks to our elite sales team, Our led machine light share about 20% in domestic market, among them, some are very famous machine manufacturers.



We look forward to work with you, provide you high quality product and build win win cooperation.













Contact (Amy)



Don"t hesitate to Contact us for the new and competitive price.

Contact person: Amy Liu

Email: onn019(@)onnled.net

Website: www.onnled.net.
