Home > Products > ONN M9T IP67 Explosion-proof Light tri proof machine lamp

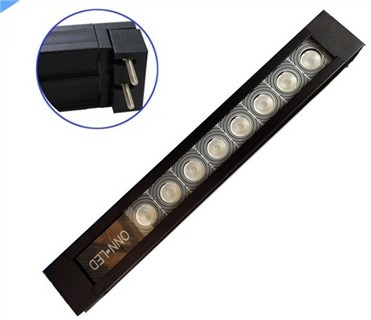

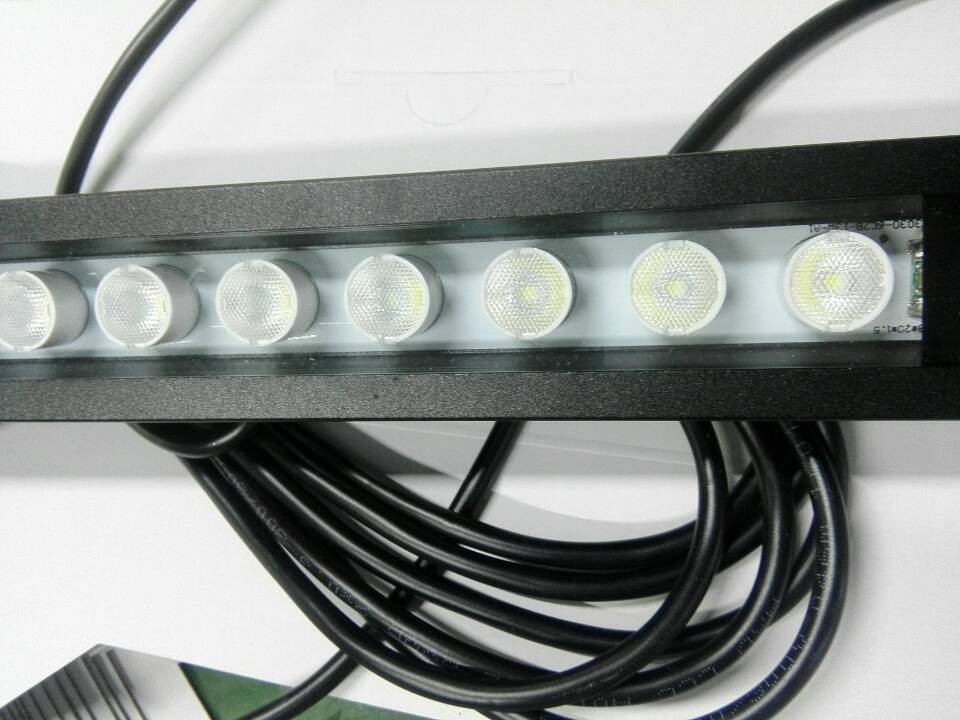

ONN M9T IP67 Explosion-proof Light tri proof machine lamp
Click on the image to view the original image
Product： views：2ONN M9T IP67 Explosion-proof Light tri proof machine lamp
Branch： ONN
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 21:37
  Negotiated
Product Details
Overview
Quick Details
Item Type:
Machine Tool Working Lamps
Light Source:
LED
Input Voltage(V):
24V
Lamp Power(W):
18
Lamp Luminous Flux(lm):
1530
Lamp Luminous Efficiency(lm/w):
85
CRI (Ra>):
80
Color Temperature(CCT):
3000-6000K
Working Temperature(℃):
-20 - 45
Working Lifetime(Hour):
50000
IP Rating:
IP67
Certification:
CE, EMC, FCC, LVD, RoHS, VDE
Emitting Color:
White
Lamp Body Material:
Aluminum
Place of Origin:
Guangdong, China
Brand Name:
ONN
Model Number:
ONN-M9T
Product name:
ONN M9T IP67 Explosion-proof Light tri proof machine lamp
Rated power:
8W/12W/16W/18W
Mounting:
Fixed by screw
Beam angle:
40
Lumen efficiency:
85lm/w
Working temperature:
-40-50°
Length:
280/380/480/580mm
Warranty:
2 years
feature:
Good heat dissipation and corrosion resistance
Business:
manufacturer, factory
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
ONN M9T IP67 Explosion-proof Light tri proof machine lamp
1pcs/ inner box
12pcs/ outer box
According to customr's requests
Port
Shenzhen, China
Lead Time:
Quantity(Pieces)1 - 50 >50
Est. Time(days)5To be negotiated

ONN M9T IP67 Explosion-proof Light tri proof machine lamp

Features

1. ONN-M9T is designed for harsh environment.

2. Very slim and thin to meet special request on product’s size.

3. Using anodized aluminum lamp body and tempered glass.

4. IP67 rating, resistant to high pressure wash, coolants and detergents.

5. High brightness SMD3030 LED chip, 85lm/w.

6. 90 degree rotatable to control lighting direction.

7. Easy to install, magnet installation optional.

Ordering code:

Dimension(mm):





Applications

 CNC machine work: engraving machine, EDM machine etc.  Assembly and repair work.



Packing:

Related Products



Certifications





Packaging&Shipping:

Generally, 1pcs/ inner box , 12pcs/ outer box , 3-10 days after payment is received, depending on the order quantity.



Company Information :

ONN Semiconductor (Shenzhen) Co., Ltd. was established in August 2005, which is located in Bao"an District Shenzhen LED industry gathering. The company is focusing on LED Industrial Lighting (especially "machine lights","warning lights"),LED Cleanroom Lights(Including LED panel lights)and LED Freezer Lights.



Since the products launched market for nearly 8 years,ONN has experienced 45 trade fairs,created 8 new pratical patents,22 appearance patents and a series of related certification like CE,RoHS,IP level authentication and so on.At the same time,ONN also passed ISO9001,with professional R&D team which is the backbone for technology and quality, was identified National High-tech Enterprise.



Lighting Fairs:



Our service:



1. Produce and supply high quality led industrial lights, including led machine lights, led machine warning signal lights, led cleanroom lights, led freezer lights and so on.

2. After-sale service. We make sure every lights from us are strictly tested before delivery. If any quality failure, we have 18-36 months warranty based on different types of lights.

3. OEM and ODM service. We focus on led industrial lights for 13 years. We are professional and experienced.
