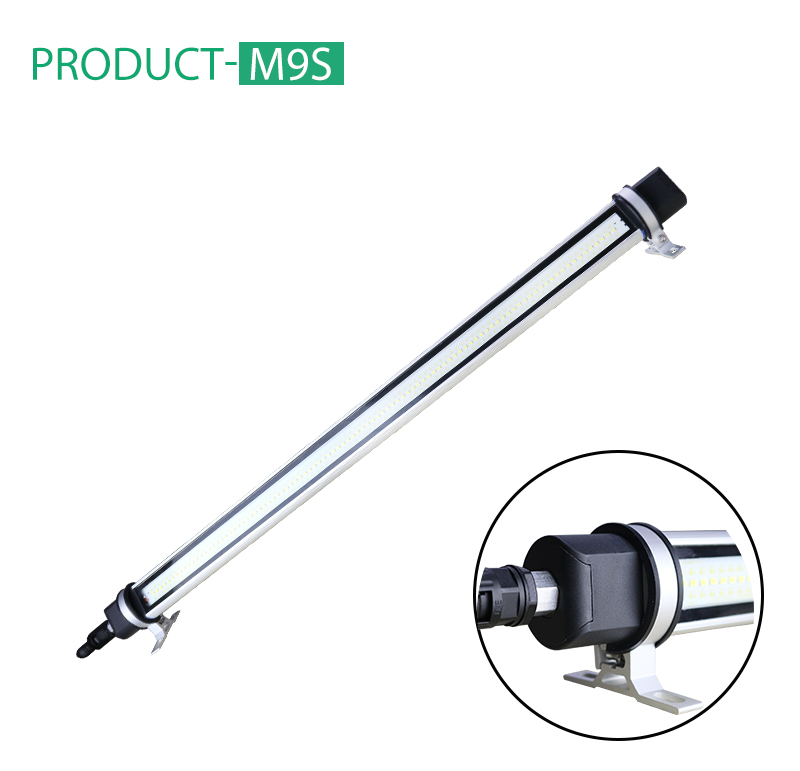

WONN M9S 16W IP67 24v led cnc machine lighting
Features:
This LED machine light is designed to provide illumination inside or on machinery, can be used in harsh environments.
1. IP67 waterproof LED machine light, resistance to common cooling agents and lubricants.
2. Brief and reliable structure, resistance to vibrations and shock.
3. Use round brackets to fix the lamp, lamp can be rotated after installation, lighting direction adjustable.
4. The distance between two brackets ajustable to meet existing mounting holes on machine.
5. AC/DC24v or AC220v input voltage optional, fit the voltage of different michine.
6. Diameter is 38mm, very convenient to replace traditional machine light.
Parameter:
Tubular machine work light
Specification | 300 | 400 | 600 | 800 |
L1 | 380 | 520 | 740 | 840 |
Hole distance | 38~55 | |||
L2 | 268~332 | 408~472 | 608~672 | 808~872 |
Model | Voltage input | Voltage range | CCT range | ||
ONN-M9S-B1 | AC/DC 24V | AC/DC 24±2V | 5500-6000K | ||
ONN-M9S-B2 | AC/DC 24V | AC/DC 24±2V | 4000-4500K | ||
ONN-M9S-C1 | AC220V (50/60Hz) | AC100-240V (50/60Hz) | 5500-6000K | ||
ONN-M9S-C2 | AC220V (50/60Hz) | AC100-240V (50/60Hz) | 4000-4500K | ||
Cable | 0.55M 0.55M(with connector) | ||||
Mounting | O shape bracket ring | ||||
Specification | 300 | 400 | 600 | 800 | |
Power consumption | 7 W | 12 W | 16 W | 20 W | |
Current input | (24V)300mA (220V) 32mA | (24V) 470mA (220V)55mA | (24V) 690mA (220V) 75mA | (24V) 840mA (220V) 90mA | |
Lumens | 665Lm | 998Lm | 1498 Lm | 1997 Lm | |
Working and Storage environment:
Working temperature: | -20~45℃ |
Storage temperature: | -40~70℃ |
Working humidity: | 10~90% |
Storage humidity: | 10~90% |
Package info
Package | Carton tubular machine work light | |||
Specification | 300 | 400 | 600 | 800 |
Net weight(Kg) | 0.36 | 0.55 | 0.83 | 1.2 |
Gross weight/carton | 11.3 | 10.1 | 12.5 | 13.5 |
Pcs/carton | 24 | 12 | 12 | 9 |
Carton size (L*W*H)mm | 780*285*233 | 580*285*233 | 780*285*233 | 990*210*233 |
Inner box size(L*W*H)mm | 770*60*70 | 570*60*70 | 770*60*70 | 970*65*70 |
