Home > Products > ONN M10A small beam angle/flexible metal arm hose tube machine light

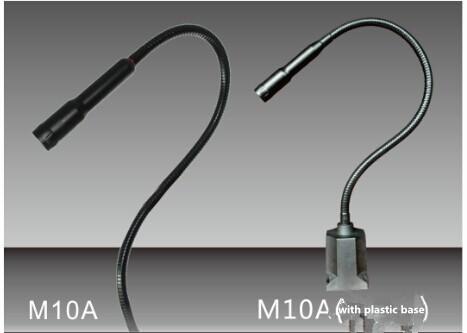

ONN M10A small beam angle/flexible metal arm hose tube machine light
Click on the image to view the original image
Product： views：2ONN M10A small beam angle/flexible metal arm hose tube machine light
Branch： ONN
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 21:37
  Negotiated
Product Details
Overview
Quick Details
Item Type:
Machine Tool Working Lamps
Light Source:
LED
Input Voltage(V):
12V/24V
Lamp Power(W):
2.5
Lamp Luminous Flux(lm):
120
Lamp Luminous Efficiency(lm/w):
120
CRI (Ra>):
80
Color Temperature(CCT):
3000-6000K
Working Temperature(℃):
-25 - 45
Working Lifetime(Hour):
50000
IP Rating:
IP65
Certification:
BV, CCC, CE, CQC, EMC, FCC, LVD, REACH, RoHS, UL, VDE
Emitting Color:
White
Lamp Body Material:
Aluminum
Place of Origin:
Guangdong, China
Brand Name:
ONN
Model Number:
ONN-M10A
Name:
ONN M10A small beam angle/flexible metal arm hose tube machine light
Lead time:
7-10 days
Beam Angle:
5°
Lamp head Diameter:
29mm
Material:
aluminum, iron, steel
Power factor:
PF>0.9
Warranty:
3 years
Body color:
Aluminum
Driver:
external
Mounting:
Fixed with screw
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month DHL/Fedex/UPS/ China post
Packaging & Delivery
Packaging Details
ONN M10A small beam angle/flexible metal arm hose tube machine light
30pcs/CTN;
CTN dimension: 62*38*46cm;
G.W.:/CTN: 30kg.
Port
Shenzhen
Lead Time:
Quantity(Pieces)1 - 50 >50
Est. Time(days)5To be negotiated

ONN M10A small beam angle/flexible metal arm hose tube machine light



  Application:


Engraving machine, EDM, Machine center, CNC machine, Grinding machine and all kinds of machines.

Selling points:

1. Aluminium CNC Processing Construction, fine heat dissipation,unique and exquisite appearance .

2. Adopt US cree high power chips, reflector cup construction,make light spot more focus .

3. Universal fexible pipe,free illumination,flexible pipe wraped by imported heat shrink tubing,grease proofing,wear-resisting,beautiful.

4. Big allowance design,long lifespan capacitance,external driver,sharply increase the lifespan of driver.

5. Modular design,easy to replace once the driver failed.

Technical Parameters:



BrandONNSurface Temperature<50°C
Light source1W/3W/PCSMountingFixed by  screws
Lifespan of light source50000 hoursPlace of OrigiShenzhen China
Viewangle5°CRI70%
Central LUX

70cm:   3500-4200LUX

IP grade

 IP65


 MODELPowerRated currentVoltageCCT
ONN-M10A-B12.5W110mA24V5500-6000K
ONN-M10A-B22.5W110mA24V4000-4500K



Technical Drawing:



Related Products:









Certifications:





Company information:



ONN Semiconductor (Shenzhen) Co., Ltd. was established in August 2005, which is located in Bao"an District Shenzhen LED industry gathering. The company is focusing on LED Industrial Lighting (especially "machine lights","warning lights"),LED Cleanroom Lights(Including LED panel lights)and LED Freezer Lights.



Since the products launched market for nearly 8 years,ONN has experienced 45 trade fairs,created 8 new pratical patents,22 appearance patents and a series of related certification like CE,RoHS,IP level authentication and so on. At the same time,ONN also passed ISO9001,with professional R&D team which is the backbone for technology and quality, was identified National High-tech Enterprise.





Lighting Fairs:





Our service:



1. Produce and supply high quality led industrial lights, including led machine lights, led machine warning     signal lights, led cleanroom lights, led freezer lights and so on.

2. After-sale service. We make sure every lights from us are strictly tested before delivery. If any quality failure, we have 18-36 months warranty based on different types of lights.

3. OEM and ODM service. We focus on led industrial lights for 10 years. We are professional and experienced.
