Home > Products > Model M9S 24V 220V IP67 tri-proof rating cnc machine light with high quality led chip

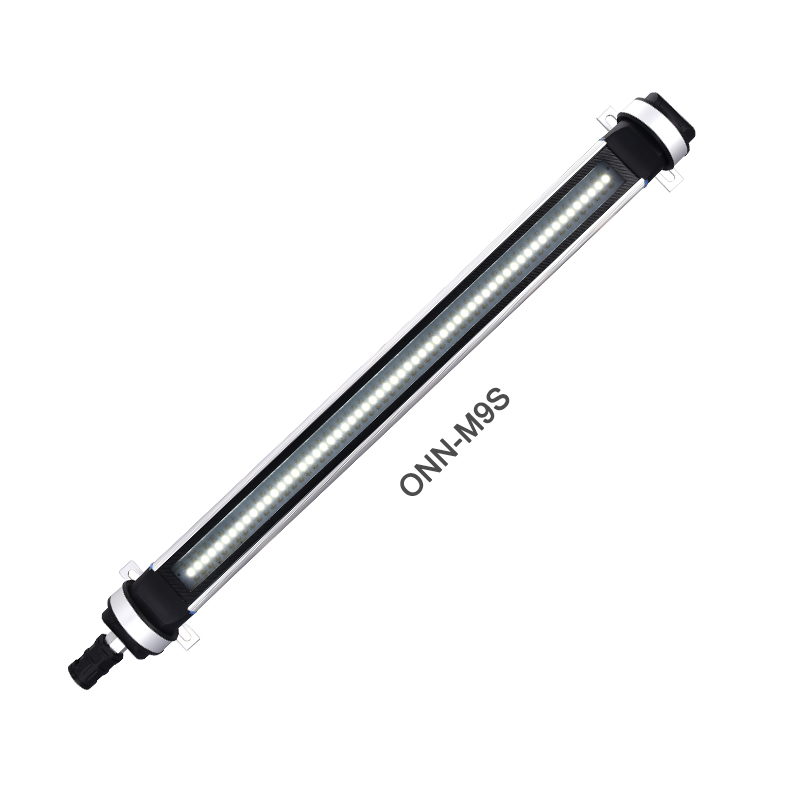

Model M9S 24V 220V IP67 tri-proof rating cnc machine light with high quality led chip
Click on the image to view the original image
Product: views:7Model M9S 24V 220V IP67 tri-proof rating cnc machine light with high quality led chip
Branch: ONN
Type: Equipment Indicator Lights
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-11-19 21:37
  Negotiated
Product Details
Overview
Quick Details
Type:
Equipment Indicator Lights
Light Source:
LED
Input Voltage(V):
24/220V
Lamp Power(W):
20
Lamp Luminous Flux(lm):
2200
Lamp Luminous Efficiency(lm/w):
110
CRI (Ra):
80
Color Temperature(CCT):
4000-6000K
Beam Angle(°):
115
IP Rating:
IP67
Certification:
CE, EMC, FCC, LVD, RoHS, VDE
Emitting Color:
White
Lamp Body Material:
Aluminum
Base Type:
Aluminum
Place of Origin:
Guangdong, China
Brand Name:
ONN
name:
M9S IP67 tri-proof rating machine light with high quality led chip
Feature:
IP67, anti-oil anti-corrosion
power:
20W
Warranty:
2 Years
Mounting:
Screws
BEAM ANGLE:
115 Degree
Lumen efficiency:
110lm/w
business:
manufacturer, factory
Working temperature:
-40-50°
Housing color:
silver, black
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Model M9S 24V 220V IP67 tri-proof rating cnc machine light with high quality led chip
1pcs/ inner box
12pcs/ outer box
According to customr's requests
Port
Shenzhen, China
Lead Time:
Quantity(Pieces)1 - 50 >50
Est. Time(days)5To be negotiated

Model M9S 24V 220V IP67 tri-proof rating cnc machine light with high quality led chip



Features:

1. ONN-M9S is designed for harsh environment.

2. Using anodized aluminum lamp body, tempered glass, PA + glass fiber end cap.

3. IP67 rating, resistant to high pressure wash, coolants and detergents.

4. Adopt high brightness SMD2835 LED chip, 120lm/w.

5. Frosted cover available to decrease glare.

6. Easy to install and control the lighting direction.

7. Variety input voltages optional: AC90-240V 50/60Hz, AC/DC12V, AC/DC24V.



Applications:

CNC machine work: engraving machine, EDM machine etc. Assembly and repair work table. Laboratories.



Ordering code:



Parameter:



Related Products:



Company Information :

ONN Semiconductor (Shenzhen) Co., Ltd. was established in August 2005, which is located in

Bao"an District Shenzhen LED industry gathering. The company is focusing on LED Industrial Lighting (especially "machine lights","warning lights"),LED Cleanroom Lights(Including LED panel lights)and LED Freezer Lights.



Since the products launched market for nearly 8 years,ONN has experienced 45 trade fairs,created

8 new pratical patents,22 appearance patents and a series of related certification like CE,RoHS,IP level authentication and so on.At the same time,ONN also passed ISO9001,with professional R&D team which is the backbone for technology and quality, was identified National High-tech Enterprise.



Our service:

1. Produce and supply high quality led industrial lights, including led machine lights, led machine warning signal lights, led cleanroom lights, led freezer lights and so on.

2. After-sale service. We make sure every lights from us are strictly tested before delivery. If any quality failure, we have 18-36 months warranty based on different types of lights.

3. OEM and ODM service. We focus on led industrial lights for 13 years. We are professional and experienced.



Packaging and Shipping:

1. Our Standard Export Packing. Customized packing is avaible for MOQ order.

2. Delivery time: samples 3-5 days, mass order 5-10 days.

3. Shipping: by international express, by air or by ship.
