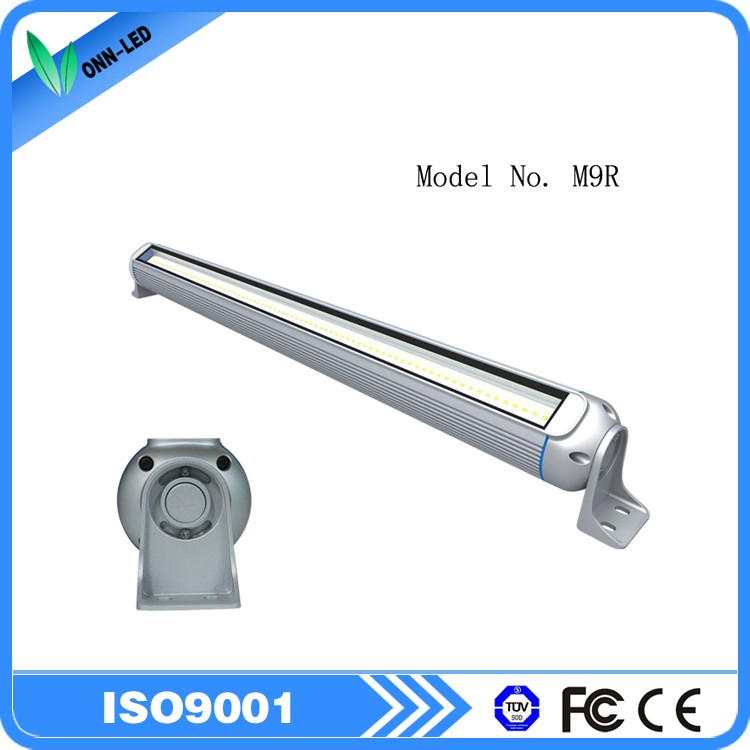

ONN M9R 24V 220V Led Lighting Lamp Explosion-proof Ip67 work light
Application:
- Imported chips from Taiwan. Low thermal resistance ,good thermal condutivity , low light decay .
- High color related index more than 80.
- Large double energy-saving , long lifespan , maintenance-free man-hour cost , especially suitable for ultra-low temperature cold storage enviroments .
- Resistant to low temperature of -40°C, no frosting , intantaneous starting .
- Big allowance design,imported Rubycom capacitance,increase the lifespan of driver sharply,
- Die-casting Construction,Water-proof Adhesive Tape,Water-proof Silicon and Toughened Glass combined together,Unify Water-proof,Heat Dissipation and Appearance completely.
- Patented construction,consise and generous,360°adjustable, two installing way of clamp and dowel, easy installation.
- Modular design,easy to replace once the driver failed.
- CE FCC and IP65 certificated & 3 years warranty .
Product Code: | ONN-M9R | |
| Item Type | Led Machine Work Light |
Input voltage: | 100-240V AC; 24V DC/AC | |
Length: | 300 / 400 / 600 / 800mm | |
Wattage: | 7w / 12w / 16w / 20w | |
Mounting : | Fixed with screw and bracket | |
LED: | Smd 2835 | |
Lumens: | 1580 lm | |
Efficiency: | 90 lm/W | |
CRI: | >80 | |
Color: | Warm white / Neutral white / Cool white | |
Color temp.: | 2700-3200K / 4000-4500K / 5500-6500K | |
Beam angle: | 90 | |
Material: | Aluminium body + Tempered glass | |
Body color: | Silver | |
Certificates: | CE-EMC, FCC , CCC , IP65 , ISO9001 | |
Life Span: | 50000 Hours |
Technical Drawings :
Company information:
ONN Semiconductor (Shenzhen) Co., Ltd. was established in August 2005, which is located in Bao"an District Shenzhen LED industry gathering. The company is focusing on LED Industrial Lighting (especially "machine lights","warning lights"),LED Cleanroom Lights(Including LED panel lights)and LED Freezer Lights.
Since the products launched market for nearly 8 years,ONN has experienced 45 trade fairs,created 8 new pratical patents,22 appearance patents and a series of related certification like CE,RoHS,IP level authentication and so on. At the same time,ONN also passed ISO9001,with professional R&D team which is the backbone for technology and quality, was identified National High-tech Enterprise.
Lighting Fairs:
Our service:
1. Produce and supply high quality led industrial lights, including led machine lights, led machine warning signal lights, led cleanroom lights, led freezer lights and so on.
2. After-sale service. We make sure every lights from us are strictly tested before delivery. If any quality failure, we have 18-36 months warranty based on different types of lights.
3. OEM and ODM service. We focus on led industrial lights for 10 years. We are professional and experienced.
