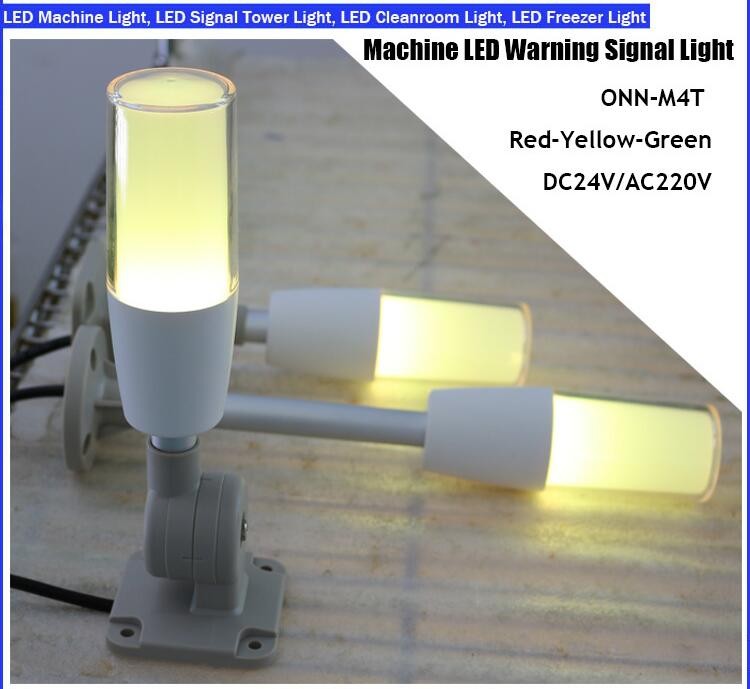

DC24V Multi-color LED steady tower lights
Detail pictures:
ONN patent design, an innovative present instead of machine tower lights, same function, lower cost.
Application:
Numerically-controlled machine tool equipment,textile machinery,security and protection,security inspection device,electronic machine,automated production line,LED package,spectral equipment,laser equipment,food filling equipment,ceramic machinery,autowarehouse etc man-machine interactive interface.
Detailed pictures of M4T signal light:
Drawing and Installation of M4T tower light:
1.The apearance is elegant,more attractive than high-end imports of similar products.Assist to upgrade your equipment selling point;
2.Lamp beads using integrated mounting chassis,The frame mosaic transparent shade which makes the light more evenly and higher brightness;
3.Compared to the same product in the industry,our light is high brightness,long lifespan,low price and high quality.Cost performance of M4T at an absolute advantage!
4.Exquisite apearance and cmpact design make them more harmonious when using on the machine,which is the best option for the future warning lights.
5.Where is the highest point of equipment?where is the most eye catching location of the equipment?As equipment manufacturers,where would you put the brand on? Patent protection for back lightdvertising"patented advertsing trademark"design,customer brand highlight the distinguished!
Technical Parameter:
| ONNM4- 3 A A B C - RYGWB - 60 | |
| 1 2 3 4 5 6 7 8 | |
| 1 Brand | ONNM4 |
| 2. Layer | 1. One layer single color/multicolor 2. two layers two colors 3. Three layers three colors 4. Four layers four colors 5. Five colors, five layers |
| 3. Mounting | A. Foldable type B. Pole plate |
| 4. Voltage | A. DC12V B. DC24 C. AC220V D.AC110V(contact type) |
| 5. Function | B. Steady F. Steady with buzzer S. Red flash C. Red flash with buzzer D. All flash E. All flash with buzzer |
| 6 .Wiring | C. Contact type T. direct Input (common+/-) |
| 7 . Colors | Color sequence from top to bottom: Red Yellow Green White Blue |
| 8. Cover Dia. | 60. Φ60mm 70.Φ70mm |
Model No. | ONN - M4T lathe warning light | |||||
Voltage | DC24V | current | 20mA | Power | 0.48W | |
AC220V | 5.5mA | |||||
IP rating | IP50 | Length of cable | 45mm 65mm | Color of body | white gray | |
Light | Chip 3528 LED 0.06W/pcs | Life of whole light | 50 000 hrs | |||
Beam angle | 360° | color | Red,yellow,green | Original place | Shenzhen China | |
Packing information:
| Term | Product weight (Kg) | Weight with box(Kg) | Weight in whole carton(PCS) | Size of inner box(L*W*H)mm | Size of carton(L*W*H)mm |
| M4T Disc bar (long) | 0.22 | 5 | 12 | 415*80*80mm | 440*265*345mm |
| M4T Disc bar (short) | 0.185 | 8.5 | 24 | 415*80*80mm | 440*265*345mm |
| M4T Foldable (long) | 0.26 | 5.5 | 12 | 415*80*80mm | 440*265*345mm |
| M4T Foldable (short) | 0.225 | 5 | 12 | 415*80*80mm | 440*265*345mm |
M4T show on brand machine tools and exhibitions:
1.ONN can supply LED lighting solutions of Specific projects to you;
2.ONN can supply analysis of energy saving effect to your customers,convenient for you to recommend to your customers.
3.18 months warranty,in the period,when light is not work or some components failed,can free to replace or send a new one;
4.OEM provide;
5. Maintenance free once broken,we"ll take steps to solve problem in 48 hours.(work time:From Monday-Saturday 8:30am-18:00pm)
Onn semi-conductor Co.,Ltd was established in august 2005, which located in Bao"an district , our company focus in led machine tools light, led freezer light and cleanroom. we believe FOCUS will gather our R&D and workers strength to present our customers elite products. Ten years experience, reasonal price, 8 utility model patents, 22 apparence patents and a series of CE, FCC, RoHS, CCC certificates, all these make us build a high reputations among customers from all over the world. Thanks to our elite sales team, Our led machine light share about 20% in domestic market, among them, some are very famous machine manufacturers.
We look forward to work with you, provide you high quality product and build win win cooperation.
