- Type:
- Equipment Indicator Lights
- Light Source:
- LED
- Input Voltage(V):
- 12/24/220
- Lamp Power(W):
- 5
- Lamp Luminous Flux(lm):
- 450
- Lamp Luminous Efficiency(lm/w):
- 90
- CRI (Ra):
- 80
- Color Temperature(CCT):
- RGB
- Beam Angle(°):
- 360
- IP Rating:
- IP54
- Certification:
- BV, CCC, CE, CQC, EMC, ETL, FCC, GS, LVD, RoHS
- Emitting Color:
- RGB
- Lamp Body Material:
- Aluminum
- Base Type:
- 2G11
- Place of Origin:
- Guangdong, China
- Brand Name:
- ONN
- Item type:
- Model M4S DC24V pc cover and foldable base light with buzzer inside
- Voltage:
- 24V
- lifespan:
- 50000 Hours
- luminous flux:
- 90Lm/W
- Lampshade:
- Imported transparent PC tube
- Optional Specification:
- FlashBuzzer
- View angle:
- 360 degree
- Color turn:
- Red Yellow Green
- Mounting:
- Fixedbase
- Application:
- Especially for cnc machine
- Supply Ability:
- 100000 Piece/Pieces per Month signal tower light, machine light indicator light foldable
- Packaging Details
- Model M4S DC24V pc cover and foldable base light with buzzer inside
1pcs/ inner box; 12pcs/ outer box
According to customr's requests
- Port
- Shenzhen, China
- Lead Time:
Quantity(Pieces) 1 - 50 >50 Est. Time(days) 5 To be negotiated

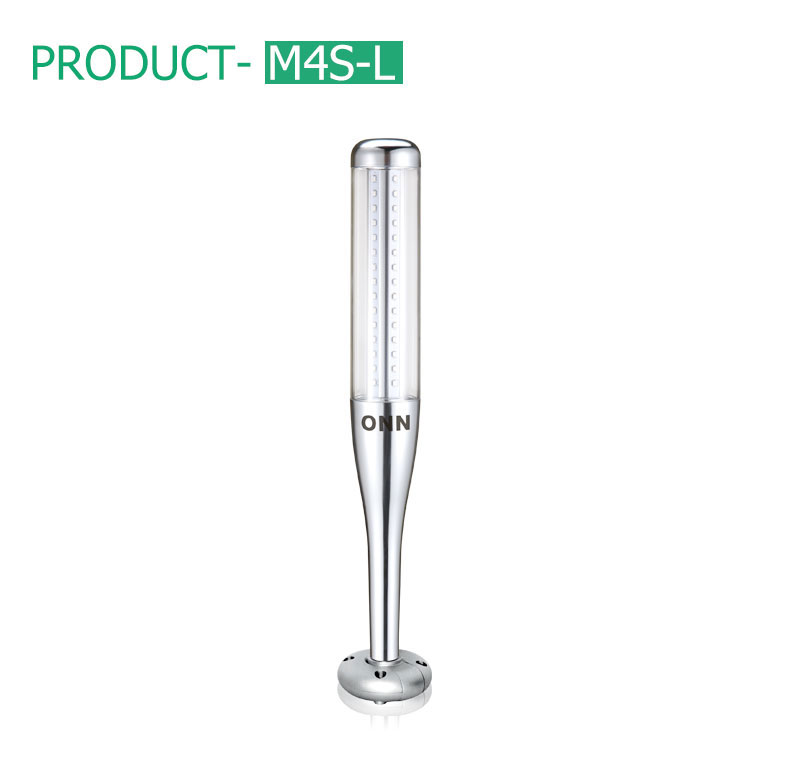

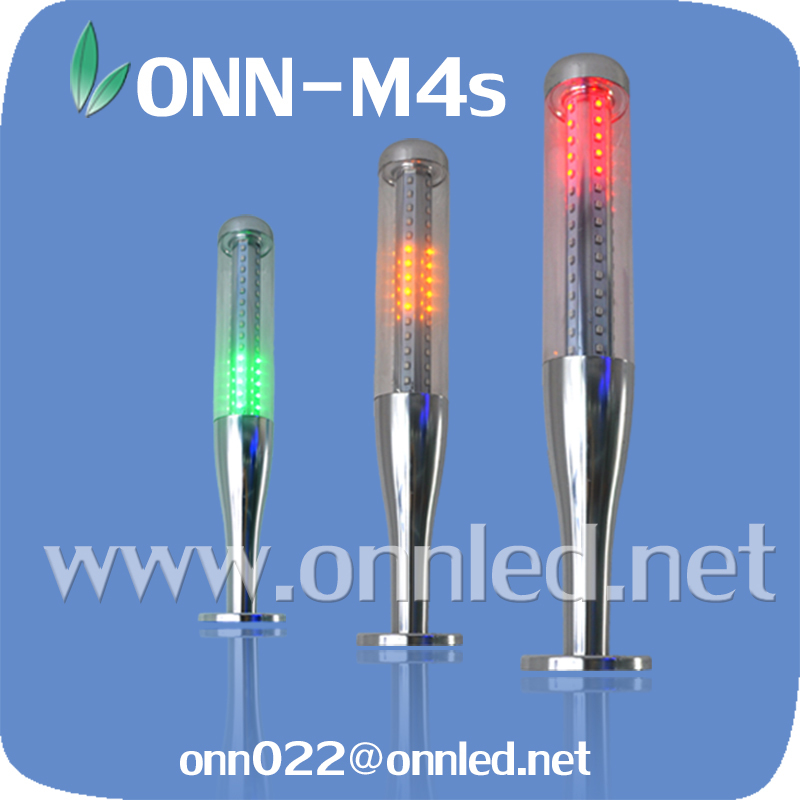

Model M4S DC24V pc cover and foldable base light with buzzer inside
Application :
Product Features :
1. Adopt imported PC transparent tube , chips in linear arrangement,elegant appearance,attractive,anti-corrosion,anti-high temperature.
2. Soft curve design,pure metal texture,fine workmanship,appearance looks like baseball bat,enhancing the value of equipment.
Brand | ONN | Surface Temperature | <50°C |
Light source | smd 2835 | Mounting | Fixed Base |
Lifespan | 50000 hours | Voltage | DC24V |
View angle | 360 ° | Rated Current | 80-250mA |
Power(W) | 1-5W | IP grade | IP50 |
ONN-M4S - A 3 B B B - 50 | |
1 2 3 4 5 6 7 8 | |
1 | Brand ONN |
2 | Model No.: M4S |
3 | Appearance : A . Baseball shape B. Fodable Type |
4 | Color : 3 color ( RYG ) |
5 | Voltage: B. DC24V |
6 | Wiring Mode : C. Contact Type Z. Input Directly common line is positive ( NPN ) B. Input directly common line is negative ( PNP ) |
7 | Function: B. Continous light F. With buzzer no flash S. Red flash no buzzer C. Red flash with buzzer D. All flash E. All flash with buzzer |
8 | Diameter: 50mm |
Product Size Drawing :
Certifications:
ONN Semiconductor (Shenzhen) Co., Ltd. was established in August 2005, which is located in Bao"an District Shenzhen LED industry gathering. The company is focusing on LED Industrial Lighting (especially "machine lights","warning lights"),LED Cleanroom Lights(Including LED panel lights)and LED Freezer Lights.
Since the products launched market for nearly 8 years,ONN has experienced 45 trade fairs,created 8 new pratical patents,22 appearance patents and a series of related certification like CE,RoHS,IP level authentication and so on.At the same time,ONN also passed ISO9001,with professional R&D team which is the backbone for technology and quality, was identified National High-tech Enterprise.
Lighting Fairs:
Our service:
1. Produce and supply high quality led industrial lights, including led machine lights, led machine warning signal lights, led cleanroom lights, led freezer lights and so on.
2. After-sale service. We make sure every lights from us are strictly tested before delivery. If any quality failure, we have 18-36 months warranty based on different types of lights.
3. OEM and ODM service. We focus on led industrial lights for 10 years. We are professional and experienced.
