- Item Type:
- Machine Tool Working Lamps
- Light Source:
- LED
- Input Voltage(V):
- 24V/100-240V
- Lamp Power(W):
- 5
- Lamp Luminous Flux(lm):
- 450
- Lamp Luminous Efficiency(lm/w):
- 90
- CRI (Ra>):
- 75
- Color Temperature(CCT):
- Pure white/Cool white
- Working Temperature(℃):
- -20 - 45
- Working Lifetime(Hour):
- 50000
- IP Rating:
- IP40
- Certification:
- CE, FCC
- Emitting Color:
- White
- Lamp Body Material:
- Aluminum Alloy
- Place of Origin:
- Guangdong, China
- Brand Name:
- ONN
- Model Number:
- M3R
- Types:
- magnetic base light flexible led
- Lifespan of source:
- +50000 hrs
- Light power:
- 5W
- Voltage:
- AC100-240V,AC/DC24V
- IP rating:
- IP40
- Color temperature:
- 4000-4500k,5500-6000k
- Construct deign:
- with magnetic base
- Central Flux:
- 70cm:800Lux
- Warranty:
- 2 years
- Certificate:
- CE,FCC,ISO9001
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 58X10X10 cm
- Single gross weight:
- 1.0 kg
- Package Type:
- 1pcs/inner box;6 inner boxes/carton; Inner box:37*20*20cm;Carton:56*34*46cm; According to customers' requests.
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 3 4 - 100 >100 Est. Time(days) 3 15 To be negotiated

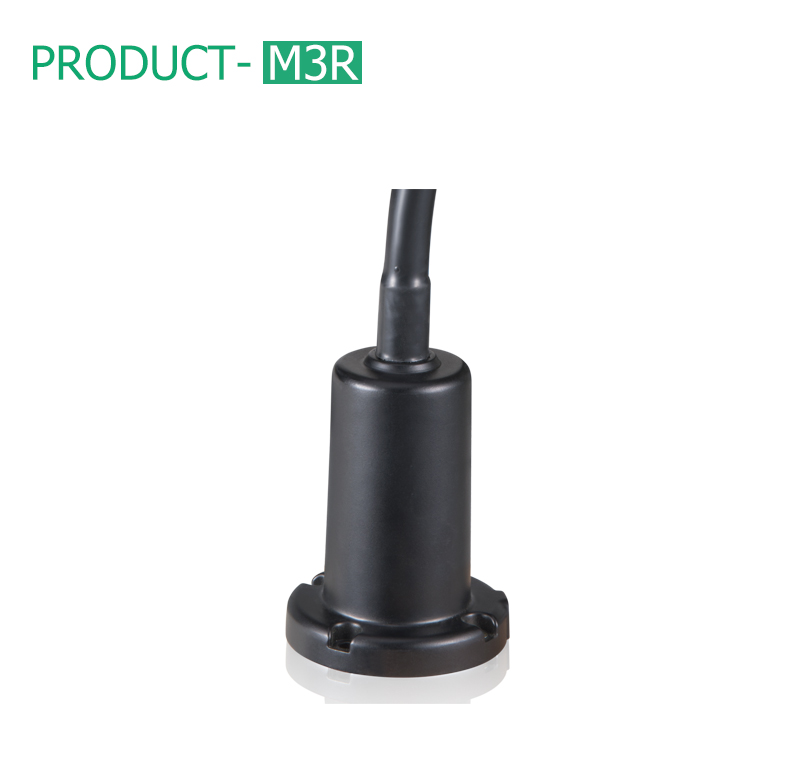

24V /220V 5W flexible led magnet light
Application:

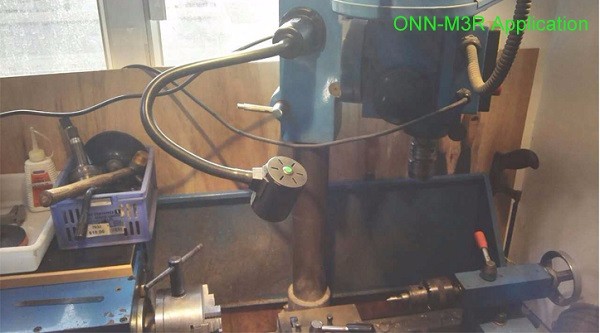

ONN magnet goosneck machine light can be used in cnc machines, automations lines, workstations, warehouse, matro station, cash desk, any place where need warnings and indicators.
ONN led tower light is low MOQ, fast delivery, 10 years exprience, attend international expo in Germany and USA each year, more than 10 times domestic expo in China. In China, every 10 cnc machines, ONN will install 3pcs tower light on the machines.
ONN is the top brand in China for the niche market of machine tool work light and cnc tower light.
Order info:
Brand | ONN | Working Temperature | -20_<45°C |
Light source | LED,1-3w/pcs | Mounting | Base fixed by screws/Magnet |
Lifespan of light source | 50000 hours | Place of Origin | Shenzhen |
View angle | 45° | IP grade | IP40 |
Flux | 400-420Lm |
|
|
Model | Power(W) | Rated current | Voltage | CCT |
ONN-M3R-B1 | 5 | 420mA | AC/DC24V | 6000-6500K |
ONN-M3R-B2 | 5 | 420mA | AC/DC24V | 4000-4500K |
ONN-M3R-C1 | 5 | 50mA | AC220V | 6000-6500K |
ONN-M3R-C2 | 5 | 50mA | AC220V | 4000-4500K |
Attention:
There is a magnet in the base of lamp, can adsorb on iron.
In order to avoid to interference other electronic products, please keep the lamp base at least 100mm away from other electronic products.
ONN products:
ONN Led Tower light:
ONN CNC machine tool work light:
ONN IP67 Tube Machine light:
ONN Certificate&Exhibition:
About us:
Onn semi-conductor Co.,Ltd was established in august 2005, which located in Bao"an district, our company focus in led machine tools light, led freezer light. We believe "FOCUS" will gather our R&D and workers strength to present our customers elite products.
Ten years experience, reasonal price, 8 utility model patents, 22 apparence patents and a series of CE, FCC, RoHS, CCC certificates, all these make us build a high reputations among customers from all over the world. Thanks to our elite sales team, Our led machine light share about 20% in domestic market, among them, some are very famous machine manufacturers.
We look forward to work with you, provide you high quality product and build win win cooperation.
