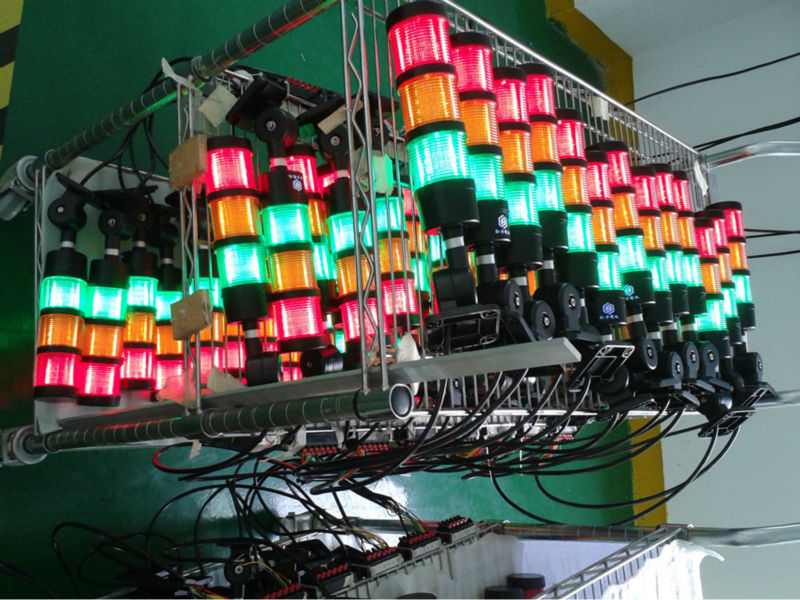

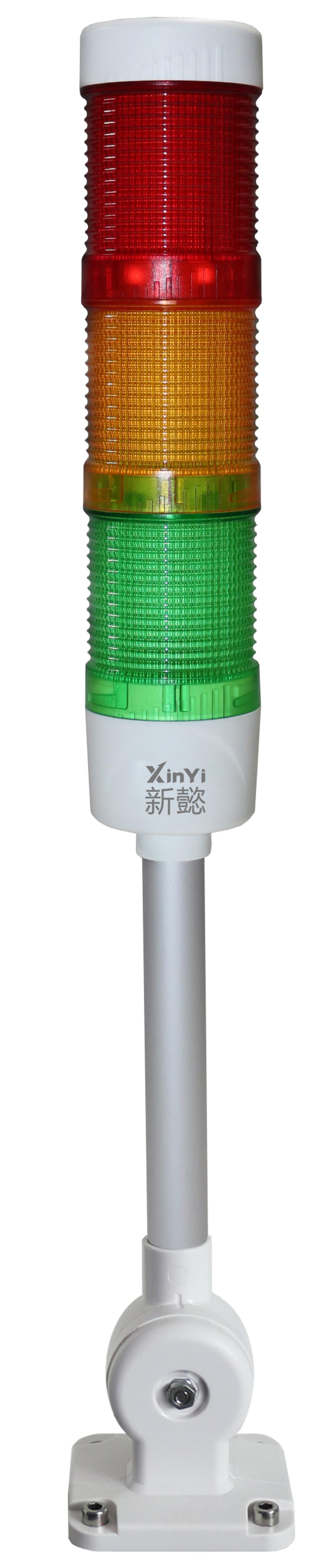

led signal tower light for cnc machine, 24V 220V M4 with buzzer

Click on the image to view the original image

Product：	views：3led signal tower light for cnc machine, 24V 220V M4 with buzzer
Branch：	ONN LED
Type：	Equipment Indicator Lights
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 21:37

Product Details

Overview

Quick Details

Type:: Equipment Indicator Lights

Light Source:: LED

Input Voltage(V):: 12/24/220V

Lamp Power(W):: 4.5

Lamp Luminous Flux(lm):: 400

Lamp Luminous Efficiency(lm/w):: 100

CRI (Ra):: 80

Color Temperature(CCT):: Red Yellow GreenWhite Blue

Beam Angle(°):: 360

IP Rating:: IP54

Certification:: BV, C-tick, CCC, CE, CQC, EMC, FCC, GS, LVD, RoHS, UL, VDE

Emitting Color:: R/Y/W/B

Lamp Body Material:: PC

Base Type:: FESTOON

Place of Origin:: Guangdong, China

Brand Name:: ONN LED

Item:: led signal tower light for cnc machine, 24V 220V M4 with buzzer

Buzzer:: yes(optional)

Layer:: 1,2,3,4(optional)

Warranty:: 3-5 years

Mounting:: Plate or flexible

Colour:: White or black

Lead time:: 5-10 days

Pole:: aluminum

LIFE:: more than 50000 hours

Supply Ability

Supply Ability:: 20000 Piece/Pieces per Month led signal tower light dash light multi color 12v 24v 230v

Packaging & Delivery

Packaging Details: led signal tower light for cnc machine, 24V 220V M4 with buzzer
M4( 3 layers): 12pcs/CTN. CTN dimension:45*27*35cm. 7kg/CTN.

Port: shenzhen

New 12v /24v led indicator light, alarm flash light flexible ,LED Signal light with buzzer, LED warning light, signal tower lamp foldable, ONN M4 series

Quick details:

Brand	ONN-M4
Layer	Can be one, two, three, four layers.
POWER	1.5W-4.5W
Installation	A Foldable B Wall-mounted C Plate
Input voltage	A DC12V B DC24 C AC220V
Functions	B Continuous light; F Continuous light with buzzer; S Red flash; C Red flash with buzzer D All colors flash; E All colors flash with buzzer
Wiring	C,Contact type; Z,Power direct input type (Positive); B, Power direct input type (Negative)
Lamp color order	Color order from top to bottom R:Red Y:Yellow G:Green W:White B:Blue
Diameter	Φ60mm or Φ70mm

Packing:

Packing material	Tri-color tri-layer(Foldable type/pole plate type)	M4 Tri-layer multi-colors(Plate type)	M4 Tri-color tri-layer(L-shape plate type)	M4 four layer four colors(Pole plate type)
N.W.:/pc (Kg)	0.325	0.3	0.45	0.315
G.W.:/CTN (Kg)	6.1	5.8	7.6	6
QTY/CTN(pcs)	12	12	12	12
Inner box(LWH)mm	4158080mm	4158080mm	4158080mm	5109075mm
Carton size(LWH)mm	440265345mm	440265345mm	440265345mm	580280233mm

Note: the length of rod plate is made according to customer requirements, so will affect the measurement of gross specific orders
