- Item Type:
- Machine Tool Working Lamps
- Light Source:
- LED
- Input Voltage(V):
- 24V/220V
- Lamp Power(W):
- 9.5
- Lamp Luminous Flux(lm):
- 855
- Lamp Luminous Efficiency(lm/w):
- 95
- CRI (Ra>):
- 80
- Color Temperature(CCT):
- Pure White
- Working Temperature(℃):
- -25 - 45
- Working Lifetime(Hour):
- 50000
- IP Rating:
- IP65, IP65
- Certification:
- BV, CCC, CE, CQC, EMC, FCC, LVD, REACH, RoHS, UL, VDE
- Emitting Color:
- White
- Lamp Body Material:
- Aluminum
- Place of Origin:
- Guangdong, China
- Brand Name:
- ONN
- Model Number:
- M2 series
- Name:
- ONN Model M2 IP65 7W or 9.5W waterproof industrial short arm lamp
- Power:
- 7W or 9.5W optional
- Lead time:
- 7-10 days
- Beam Angle:
- 45 degree
- Power factor:
- PF>0.9
- Material:
- aluminum, nylon
- Warranty:
- 3 years
- APPLICATIONS:
- Led Machine Work Light
- LED Qty:
- 6pcs or 8pcs
- Supply Ability:
- 10000 Piece/Pieces per Month industrial machine lamp waterproof IP65 7W or 9.5W
- Packaging Details
- ONN brand M2 24V 220V IP65 waterproof industrial short arm lamp
3pcs / Innerbox , 18pcs / Carton ; 1pc / Innerbox , 12pcs/Carton
Customized packing available.
- Port
- Shenzhen
- Lead Time:
Quantity(Pieces) 1 - 50 >50 Est. Time(days) 5 To be negotiated
ONN-M2: industrial machine lamp waterproof IP65 7W or 9.5W Milling machine light, LED light, LED working light, CNC ighting, IP67 lighting for Cutting Machine, CNC center etc
Model | Power | Voltage | Central lux | CCT | CRI | Beam Angle |
ONN-M2-B1 | 7W | DC24V | 1400lux | 5500-6000K | >80Ra | 45 degree |
ONN-M2-B2 | 9.5W | DC24V | 1800-1900lux | 4000-4500K | ||
ONN-M2-C1 | 7W | AC220V | 1400lux | 5500-6000K | ||
ONN-M2-C2 | 9.5W | AC220V | 1800-1900lux | 4000-4500K |
Features:
1. High power (1-3W)LEDs.
2.Fine aluminum body and toughened glass, good in water-proof,heat dissipation and appearance.

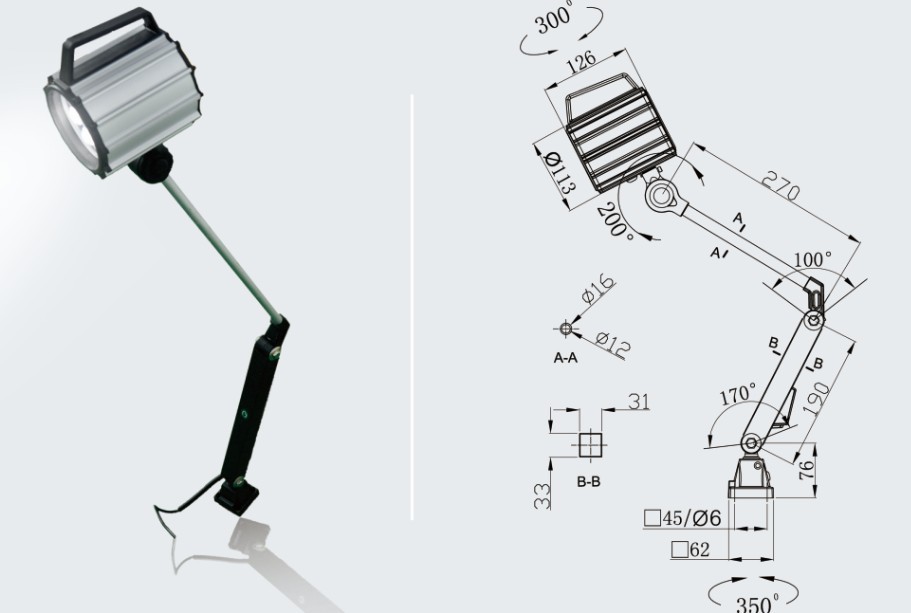

3. Aluminum alloy die-casting joint support,sturdy and durable,concise and generous, 300°adjust can be done,let the lamp light free.
4. Big allowance design,long lifespan capacitance,external driver,sharply increase the lifespan of driver,modular design,easy to replace once the driver failed.
7. IP65,good waterproof,ash proof and oil proof.
1. Our Standard Export Packing. Customized packing is avaible for MOQ order.
2. Delivery time: samples -10 days, mass order 10-20 days.
3. Shipping: by international express, by air or by ship.
1. After sales service: 3 years warranty for quality problem.
2. OEM service
Shenzhen ONN Semiconductor Lighting Co., Ltd, established in 2005, is a pioneer manufacturer of led industrial lighting products in China. We started in the beginning with led machine lights, and now we have expanded to our industrial lighting series and and focuse on led machine light, led warning light, led cleanroom light and led freezer light.
With 10 years development, we have become the leader of producing and supplying led industrial lights in China. We have gained a 60% domestic market, and our products have also been exported widely to the world with fast increase year by year. We have cooperated with many customers from Germany, France, Amercia, Japan, South Korea, Australia and so on, such as KNUTH,GF AgieCharmilles,SMP and so on. Our aim is to become the biggest and best supplier of led industrial lights from China to the world.
We will continue to do our best to develop and produce high quality and price competitive products to our clients. We hope very much to cooperate with more and more friends from the world to develop the brilliant led industrial lighting market.
Our Factory:
