- Item Type:
- Machine Tool Working Lamps
- Light Source:
- LED
- Input Voltage(V):
- 12V/24V/220V
- Lamp Power(W):
- 9.5
- Lamp Luminous Flux(lm):
- 830
- Lamp Luminous Efficiency(lm/w):
- 75
- CRI (Ra>):
- 80
- Color Temperature(CCT):
- 3000-6000K
- Working Temperature(℃):
- -20 - 45
- Working Lifetime(Hour):
- 50000
- IP Rating:
- IP65
- Certification:
- CE, EMC, FCC, LVD, RoHS, VDE
- Emitting Color:
- White
- Lamp Body Material:
- Aluminum
- Place of Origin:
- Guangdong, China
- Brand Name:
- ONN
- Model Number:
- ONN-M2
- Product name:
- ONN Brand M2 24V 220V IP65 waterproof machine work lights
- feature:
- IP65 oil
- Rated power:
- 7W/9.5W
- Warranty:
- 2 years
- Mounting:
- Screws
- Beam angle:
- 40 Degree
- Lumen efficiency:
- 75lm/w
- Business:
- manufacturer, factory
- Working temperature:
- -40-50°
- adjustableangle:
- 270°
- Supply Ability:
- 50000 Piece/Pieces per Month
- Packaging Details
- ONN M2 24V 220V IP65 waterproof machine work lights
1pcs/ inner box
12pcs/ outer box
According to customr's requests
- Port
- Shenzhen, China

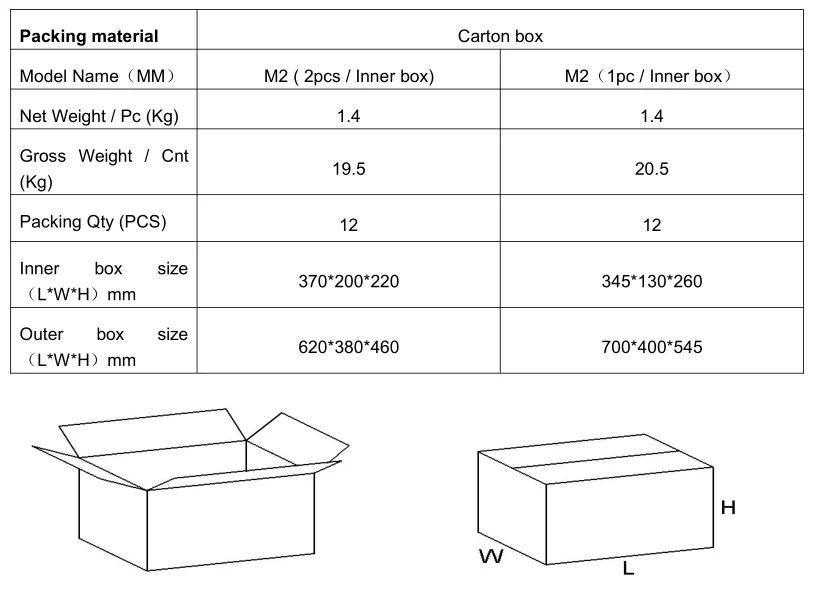

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 50 >50 Est. Time(days) 5 To be negotiated
ONN M2 24V 220V IP65 waterproof machine work lights
Application:
Area lighting for CNC machine,engraving machine,EDM,milling machine,machining center,
grinding machine.
Features:
1. Anodized aluminum and tempered glass, resistant to corrosion and high temperature.
2. IP65 waterproof, suitable for variety of environment.
3. High efficiency LED chip with PC lens, high lumen output and lighting evenness.
4. Arms with flexible joints, convenient to position lamp and control lighting direction.
5. Variety of input voltages optional to fit different applications, AC100-240V 50/60Hz,
AC/DC12V, AC/DC24V.
Technical Drawing :
Technical parameters:
Product Code: | ONN-M2 |
Item Type | led machine tool light |
Input voltage: | 100-240V AC; 24V DC/AC |
Wattage: | 7w / 9.5w |
Mounting : | Fixed BY screw |
Lumens: | 830lm |
Efficiency: | 75lm/W |
CRI: | >80 |
Color: | Warm white / Neutral white / Cool white |
Color temp.: | 2800-3200K / 4000-4500K / 6000-6500K |
Beam angle: | 35 |
Material: | Aluminium body + Tempered glass |
Body color: | Silver+Black |
Certificates: | CE-EMC, FCC , CCC , IP65 , ISO9001 |
Life Span: | 50000 Hours |
More details:
Related Products:
Certifications:
Company information
ONN Semiconductor (Shenzhen) Co., Ltd. was established in August 2005, which is located in Bao"an
District Shenzhen LED industry gathering. The company is focusing on LED Industrial Lighting (especially "machine lights","warning lights"),LED Cleanroom Lights(Including LED panel lights)and LED Freezer Lights.
Since the products launched market for nearly 8 years,ONN has experienced 45 trade fairs,created 8 new pratical patents,22 appearance patents and a series of related certification like CE,RoHS,IP level authentication and so on.At the same time,ONN also passed ISO9001,with professional R&D team which is the backbone for technology and quality, was identified National High-tech Enterprise.
Lighting Fairs:
Our service:
1. Produce and supply high quality led industrial lights, including led machine lights, led machine warning signal lights, led cleanroom lights, led freezer lights and so on.
2. After-sale service. We make sure every lights from us are strictly tested before delivery. If any quality failure, we have 18-36 months warranty based on different types of lights.
3. OEM and ODM service. We focus on led industrial lights for 13 years. We are professional and experienced.
