Home > Products > ONN-M1 Short Arm Led Foldable Light / Water-proof Machine Tool Working Lamps

ONN-M1 Short Arm Led Foldable Light / Water-proof Machine Tool Working Lamps

Click on the image to view the original image

Product：	views：2ONN-M1 Short Arm Led Foldable Light / Water-proof Machine Tool Working Lamps
Branch：	ONN
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 21:42

Product Details

Overview

Quick Details

Item Type:: Machine Tool Working Lamps

Light Source:: LED

Input Voltage(V):: 24V / 100-240V

Lamp Power(W):: 9.5

Lamp Luminous Flux(lm):: 800

Lamp Luminous Efficiency(lm/w):: 100

CRI (Ra>):: 80%

Color Temperature(CCT):: Pure White

Working Temperature(℃):: -20 - 45

Working Lifetime(Hour):: 50000

IP Rating:: IP65

Certification:: CCC, CE, EMC, FCC, RoHS

Emitting Color:: White

Lamp Body Material:: Aluminum

Place of Origin:: Guangdong, China

Brand Name:: ONN

Model Number:: ONN-M1

Model Name:: Short Arm Led Fodable Light / Water-proof Machine Tool Working Lamps

Voltage:: 24 / 220V

Power:: 7W / 9.5W

lifespan:: 50000 Hours

View angle:: 60 degree

Central Lux:: 70cm : 1800-1900lux

Color Temperature:: 4000-4500K / 5500-6000K

Working temperature:: -15-45 degree

Meterial of Frame:: Alumunium & Tempered Glass

IP Grade:: IP65

Supply Ability

Supply Ability:: 100000 Piece/Pieces per Month Short Arm Led Fodable Light / Water-proof Machine Tool Lamps

Packaging & Delivery

Packaging Details: Short Arm Led Fodable Light / Water-proof Machine Tool Lamps
1pcs/inner box;6 inner boxes/carton;
Inner box:22*12.5*16cm;Carton:46*40*35.5cm;
According to customr's requests

Port: Shenzhen, China

ONN-M1 Short Arm Led Fodable Light / Water-proof Machine Tool Working Lamps 24V / 100-240V

Application :

CNC machining , Centerless grinding machine , Electrical discharge machine , Laser welder ,Grinder .

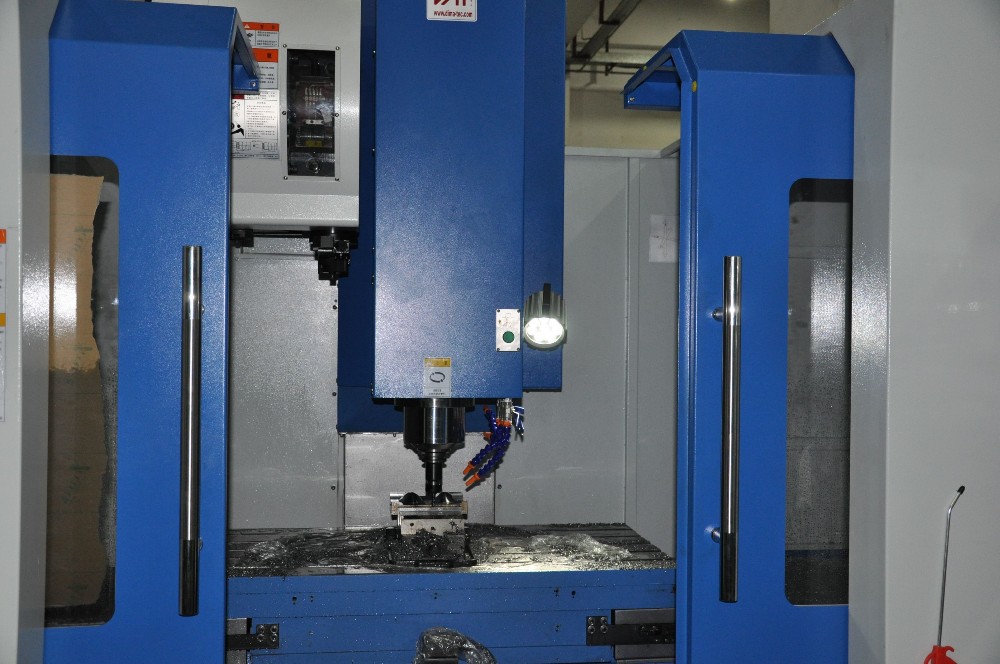

Machine interior lighting,the places which need local accent lighting such as carved machine,sparks machine,CNC machine .

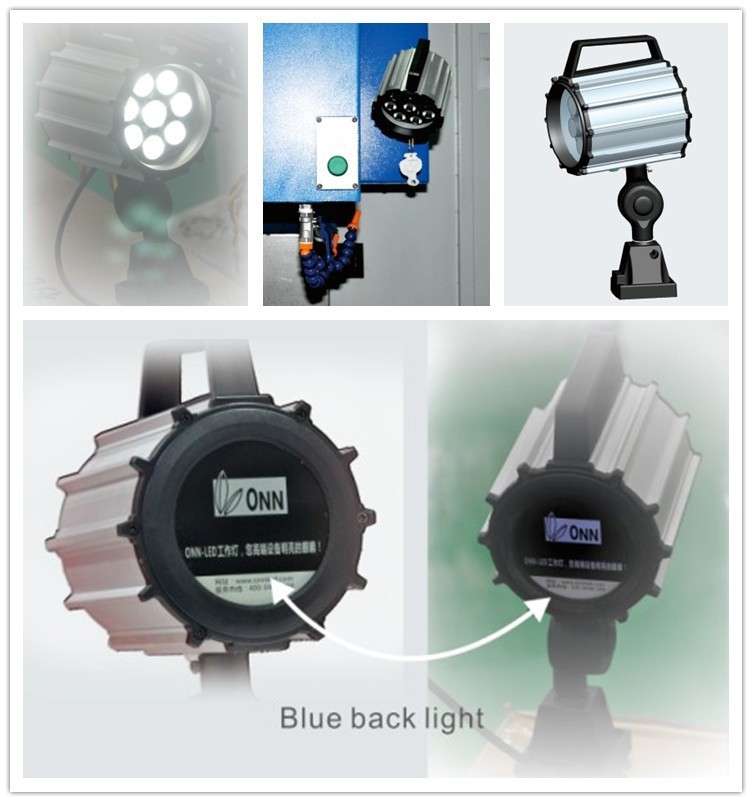

Product Features :

1. Sectional aluminum construction,water-proof adhesive tape,and toughened glass, etc parts combine well,integrate water-proof,heat dissipation and appearance completely.

2.ONN-M1 series product adopt hi-power chips imported from Taiwan,this light source is with small size,lower thermal resistance,fine thermal conductivity,lower heat dissipation,which is good choice for lighting fixture.

3. Aluminum alloy die-casting joint support,sturdy and durable,concise and generous,270°adjust can be done,let the lamplight free.

4. Big allowance design,long lifespan capacitance,external driver,sharply increase the lifespan of driver,modular design,easy to replace once the driver failed.

5. Fine workmanship,high brightness,it is the best choice for middle and top grade machinery,promote the machinery grade and selling points.

The Value-added services which ONN can supply to you :

1 . ONN can supply LED lighting solutions of Specific projects to you

2 . ONN can supply analysis of energy saving effect to your customers,convenient for you to recommend to your customers

Technical Parameters :

Brand	ONN	Surface Temperature	<50°C
Light source	1W/PCS	Mounting	Fixed by clamp and screws
Lifespan	50000 hours	Place of Origin	Shenzhen China
Viewangle	60°	CRI	70%
Central LUX	70cm: (7W)1400Lux / (9.5W)1800-1900Lux	IP grade	IP65

Model	Power	Rated current	Voltage	CCT
ONN-M1-B1	7W/9.5W	300/400mA	24V	5500-6000K
ONN-M1-B2	7W/9.5W	300/400mA	24V	4000-4500K
ONN-M1-C1	7W/9.5W	32/43mA	220V	5500-6000K
ONN-M1-C2	7W/9.5W	32/43mA	220V	4000-4500K

Product Size Drawing :

More detail :

Related Products Link for CNC Machine :

Brief Introduction :

Shenzhen ONN Semoconductor Lighting Co., Ltd, established in 2005, is a pioneer manufacturer of led industrial

lighting products in China. We are now focused on led machine light, led warning light, led cleanroom light and led

freezer light.

With 10 years development, we have become the leader of producing and supplying led industrial lights in China.

We have gained a 60% domestic market, and our products have also been exported widely exported to the world

with fast increase year by year. We have cooperated with big customers from Germany,France, Amercia, Japan,

South Korea, Australia and so on. Our aim is to become the biggest and best supplier of led industrial lights from

China to the world.

We will continue to do our best to develop and produce high quality and price competitive products to our clients.

We hope very much to cooperate with more and more friends from the world to develop the brilliant led industrial

lighting market .

ONN Service :

Samples Policy:

Samples will be charged according to our quotation and delivered at our factory or warehouse.

Warranty Policy :

1. If the product have a failure occurs under normal usage within warranty period, we will provide free new

products based on the proof-documents

2. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instruction,

we will provide paid maintance within warranty period.
