Home > Products > LED Tube For Refrigerator T5 Integrated Tube Lamp ONN-X5D

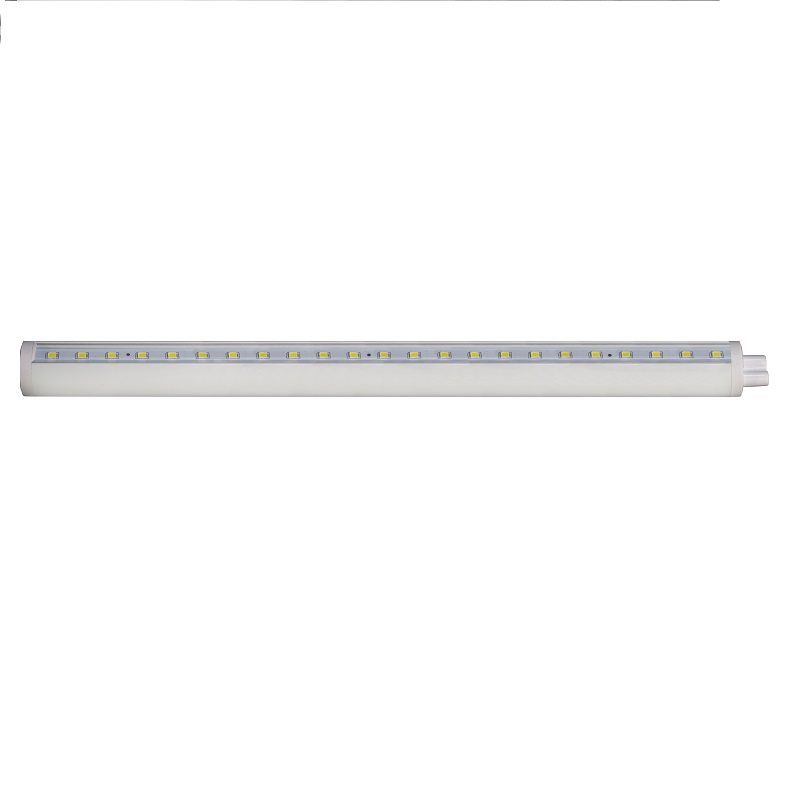

LED Tube For Refrigerator T5 Integrated Tube Lamp ONN-X5D
Click on the image to view the original image
Product: views:4LED Tube For Refrigerator T5 Integrated Tube Lamp ONN-X5D
Branch: ONN
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-11-19 21:42
  Negotiated
Product Details
Overview
Quick Details
Light Source:
LED
Item Type:
Refrigerator Lamps
Surface Treatment:
grill white paint
Input Voltage(V):
220
Lamp Power(W):
18
Lamp Luminous Flux(lm):
1926
CRI (Ra>):
82
Color Temperature(CCT):
2700-6000K
Working Temperature(℃):
-20 - 45
Working Lifetime(Hour):
50000
IP Rating:
IP65
Certification:
CE
Base Type:
Plastic base
Place of Origin:
Guangdong, China
Brand Name:
ONN
Model Number:
X5D
Name:
led tube for refrigerator
Beam angle:
120 degree
IP Class:
IP54
Connect design:
ONN-X5D can connect one by one
Waterproof connectors design:
0.5 Meter long
CCT:
2700-6000K
Voltage:
ac220v
Driver:
isolated driver
Lamp size:
Round circle diameter 23mm
Warranty:
2 years
LED Light Source:
SMD 2835
Lamp Luminous Efficiency(lm/w):
107
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard export package,63pcs/CTN.
Port
shenzhen

LED Tube For Refrigerator T5 Integrated Tube Lamp ONN-X5D

ONN-X5D New led refrigerator light can connect by one by with gap or no gap,it"s for your choice.

1.without gap:

2.with gap,the linkable power wire can customize length.

3.The power wire has 2 types,Single energized or double energized.

If choose double energized,the lamp can linkable together,very suitable for using on beverage cooler doors,Like

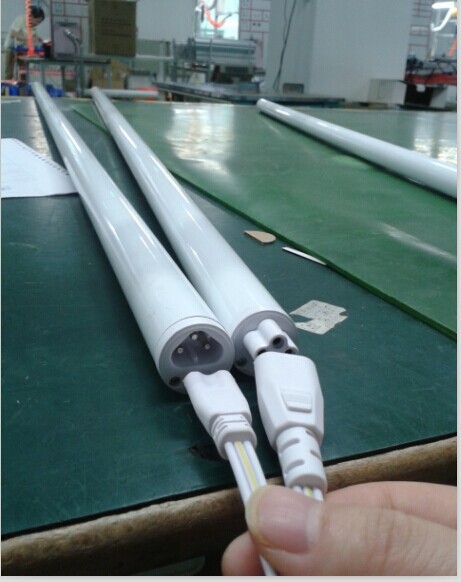

How to connect them together?here is the step:

ONN-X5D is integrated tube light,driver inside lamp,input voltage is AC100-240v.









Product feature



1.led light source;Epistar 2835 chips,0.2w/pcs,high brightness,90-100Lm/w;

2.Lamp material:aluminum alloy body+pc cover,excellent heat dissipation to work in cold freezers;

3.Round shape,easy to install,fixed by clips and screws,firm and fast,save labor time and cost;after installed,as round shape,can 360 degrees to ajustable light directions as your will,

4.Light color can adjustable,if lights used in meat counter,just add few red chips to make meat more ruddy;if used in vegetable counters,the vegetable and fruit will more fresh and green,make more effect;

5.Length can customize,our standard is 300-1500mm(1ft-5ft) if have quantity or meat our MOQ;

6.Our light is isolated driver,is internal driver,work voltage is AC100-240V,don"t need any bracket;

7.We can provide WW 2700-3200K,NW:4000-4500K,CW:5500-6500K;

8.We promise 2-3 years warranty,during the time if fail,we wil fixed it and send new one for you,we"re realible supplier,so we are responsiblity for the lights always no matter in first sales or after-sales,we provide best quality and service for my cilents.

9.X5C cooler light is IP65,suitable for work at minus 18degrees;

10.Energy saving products,at least save 60% compare with t8/t5 tube lights,it"s the update version of them!!!

11.Pls don"t see it small body,it"s have many advantages,also can connect end by end if you needs;

12.Grill white piant in the surface,more secure and insulation.





 Specification:



ModelSpecificationLamp fact length(mm)Size(W*H)mmCCTIP ClassLight efficiency(lm/w)CRINote
ONN-X5D(new product)X5D-AC220V-550-6.5W550Φ23MM2700-6000KIP65100-107>82Driver inside lamp,AC110-240V
X5D-AC220V-570-6.5W570
X5D-AC220V-873-9.5W873
X5D-AC220V-820-9W820
X5D-AC220V-1024-10.5W1024
X5D-AC220V-1173-13W1173
X5D-AC220V-1300-16W1300
X5D-AC220V-1630-18W(Single energized)1630
X5D-AC220V-1630-18W(Double energized)







Company Information



ONN Semiconductor Lighting (Shenzhen) Co.,Ltd.,was established in August 2005 which located in Bao"an district which is Shenzhen industry gathering;Our company is focusing on led "industrial lighting" especially in "machine lights","led warning lights","led cleanroom lights" and "led freezer lights.

Since the products launched market for nearly 8 years,ONN has experienced 50 trade fairs,created 8 new pratical patents,22 appearance patents and a series of related certificate like CE,RoHS,FCC,CCC,IP level authentication and so on.At the same time,ONN also passed ISO9001,with professional R&D team which is backbone for technology and quality,was indentified as Natioinal High-tech Enterprise.





Our Services



1.ONN can supply LED lighting solutions of Specific projects to you;

2.ONN can supply analysis of energy saving effect to your customers,convenient for you to recommend to your customers.

3.3 years warranty,in the period,when light is not work or some components failed,is free to repair;

4.Will be replied email and RFQ in 24hrs.

5.OEM accept.





Packaging & Shipping



1. Our Standard Export Packing. Customized packing is avaible for MOQ order.

2. Delivery time: samples 7-10 days, mass order 10-15 days.

3. Shipping: by international express, by air or by ship.





Company/Room/Lighting fair/Certificate showed:
