Home > Products > ONN buzzer laser led warning light bar
ONN buzzer laser led warning light bar
Click on the image to view the original image
Product: views:3ONN buzzer laser led warning light bar
Branch: ONN
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-11-19 21:42
  Negotiated
Product Details
Overview
Quick Details
Item Type:
Machine Tool Working Lamps
Light Source:
LED
Input Voltage(V):
24v/110v/220v
Lamp Power(W):
4
Lamp Luminous Flux(lm):
400
Lamp Luminous Efficiency(lm/w):
100
CRI (Ra>):
80
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
50000
IP Rating:
IP54
Emitting Color:
RGB
Lamp Body Material:
ABS
Place of Origin:
Guangdong, China
Brand Name:
ONN
Model Number:
M4S
name:
led warning light bar
Voltage:
AC/DC 24V | 100-220V
IP rating:
IP54
power:
2-4W
Function:
Continouns Light | flash
Buzzer:
85db
Color:
Red Yellow Green
Mounting:
FixedBase
APPLICATIONS:
Kinds of machine | Assembly line
life spans:
50000 hrs
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1pcs/bag/inner box,6 inner boxes/carton
Port
shenzhen Port

ONN buzzer laser led warning light bar









Specification:






ONN -M4S A - 3 B B B

1    2   3 4 5 6 7



1

Name:ONN

2

Three-color light color stick series:M4S

3

Shape:A, Baseball bat type   B, Cylindrical

4

Color quantity:3 colors

5

Voltage: B, 24V

6

Link style:C,contact style(with a common line) Z, Positive electrode link B,negative electrode link

7

B, Normal light  F, Normal light with buzzer   S, Red fashion   C, Red fashion with buzzer D, All fashion   E, All fashion with buzzer



Model No.:

M4S

Input voltage

DC24V

Input Current

60~200mA

Power

1.2~2.4 W

IP rating

IP50

Length

0.5M





Special request:



Brand

ONN,Shenzhen ONN Semi-conductor

Light

Chips 3528 LED 0.06W/pcs

Life spans

Life spans of light is 100000 hrs; the whole light life: 50000 hrs

Beam angle

Single light 120 degree,The whole light 360

Original place

Shenzhen China

Products shape

Shape design

Baseball bat type,Smooth curve over,Advanced plating.

Color of light body

silver

Material

PC(Bulletproof plastic),ABS Engineering Plastics







 Application:

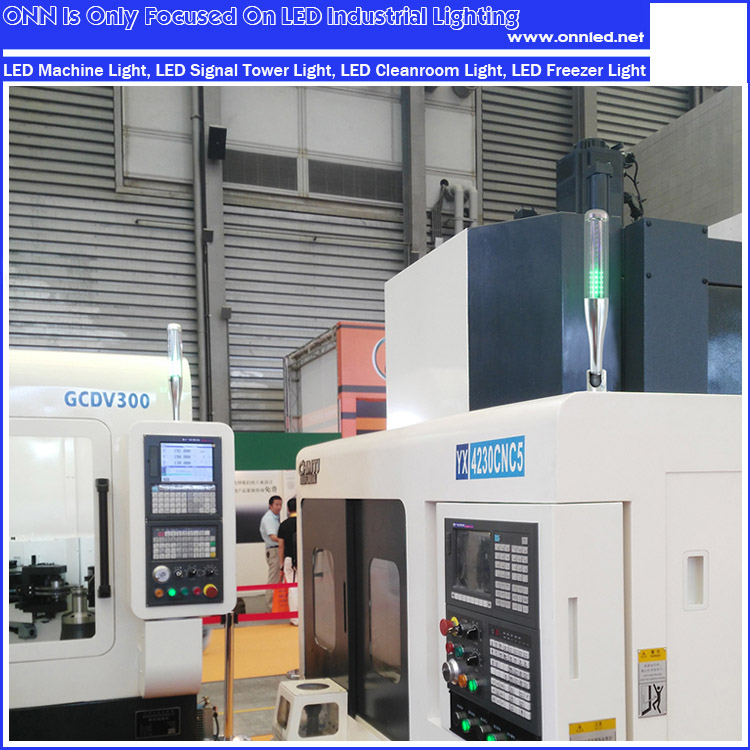

CNC machine, Horizontal lathes, vertical lathes, vertical machining centers, horizontal machining centers, 5-Axis machines, grinders, double columns, wheel machines, pallet systems, sculptor, electrical discharge machine, laser welder etc.









Features:



1. Long life span of 50000 hours, free of maintanice and saving cost for long use.
2. Greatly energy-saving than troditional light source.
3. High brightness but low power cost.
4. Good heat dissipation with fine aluminum house.
5. Good shock resistent performance.






ONN LED Machine Light Series for you Choice:






 led light making machine



ONN-LED company:





ONN Semiconductor (shenzhen) Co,ltd., was established in August 2005, located in Bao"an District, shenzhen LED industry gathering. The company focuses on LED lighting for "Industrial Lighting" in particular "machine work lighting," and various "warning light", From the products onto the market nearly 5 years has experienced 25 times of trade shows, create a utility model patent the invention 2, the appearance of 8 patents, and has a achieved CE certification, IP level authentication, certification and a series of energy efficiency standards relevant certificates. ISO9001, professional R&D team for technology and quality escort, was identified as Bao"an district, Shenzhen High-tech enterprises.









Lighting Fair:













Our Team:









Certificates:













Contact information:







SHENZHEN ONN SEMI-CONDUCTOR LIGHTING CO.,LTD

Address: 3F, SECOND ZONE, HAOFENG INDUSTRIAL PARK, FUYONG XINHE, BAOAN DISTRICT, SHENZHEN, CHINA.

Skype: onnled-sales2

Tel: +86-755-36631969
