Home > Products > ONN-M3M 24v Cnc Machine Work Lamp / Magnetic Base Gooseneck Work Light

ONN-M3M 24v Cnc Machine Work Lamp / Magnetic Base Gooseneck Work Light

Click on the image to view the original image

Product：	views：4ONN-M3M 24v Cnc Machine Work Lamp / Magnetic Base Gooseneck Work Light
Branch：	ONN
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 21:42

Product Details

Overview

Quick Details

Light Source:: LED

Input Voltage(V):: 12/24/100-240

Lamp Luminous Flux(lm):: 400

CRI (Ra>):: 80

Working Temperature(℃):: -20 to 40

Working Lifetime(Hour):: 50000

IP Rating:: IP65

Certification:: CCC, ce, EMC, LVD, RoHS

Warranty(Year):: 2

Place of Origin:: Guangdong, China

Brand Name:: ONN

Model Number:: ONN-M3R

Beam Angle(°):: 30

Application:: cnc machine / work bench

Power Supply:: AC, DC

Emitting Color:: White

Color:: Black

Product Name:: 24v Cnc Machine Work Lamp / Magnetic Base Gooseneck Work Light

Voltage:: 24 / 220V

Power:: 4.5W

lifespan:: 50000 Hours

Working temperature:: -20-40 degree

luminous flux:: 90Lm/W

Mounting:: Fixed by Magnetic Base

Central Lux:: 70cm:650-750Lux

View angle:: 30 degree

IP Grade:: IP65

Supply Ability

Supply Ability:: 30000 Piece/Pieces per Month 24v Cnc Machine Work Lamp / Magnetic Base Gooseneck Work Light

Packaging & Delivery

Packaging Details: 1pcs/inner box ; 9 inner boxes/carton;
Can customize according to requests

Port: Shenzhen, China

Lead Time:

Quantity(Pieces)	1 - 5	6 - 30	31 - 200	>200
Est. Time(days)	3	5	8	To be negotiated

ONN-M3M 24v Cnc Machine Work Lamp / Magnetic Base Gooseneck Work Light

Product Features :

1. Magnetic Base Fixed , easy mounting and free moving .

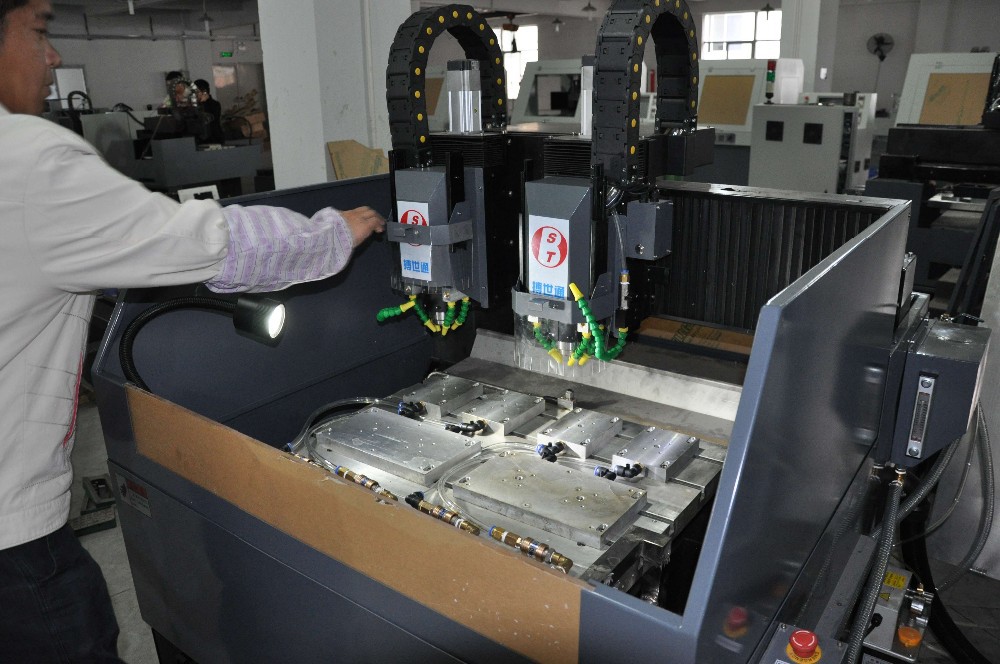

2. Integrated lamp head , water-proof is good . Especially designed for cnc machine .

3. Aluminum Lamp head with good heat dissipation .

4. Low-current design ensures the product"s long lifespan .

5. Imported beads from Taiwan, high brightless and good heat dissipation .

6. Branded domestic driver,which ensure the product lifespan more than 3 years .

7. Universal Flexible Pipe , can adjust the emitting angle freely .

Technical Parameters :

Brand	ONN	Surface Temperature	<50°C
Light source	1-3W/PCS	Mounting	Fixed by clamp and screws
Lifespan of light source	50000 hours	Place of Origin	Shenzhen China
Viewangle	30°	CRI	70%
Central LUX	70cm: 650-750Lux	IP grade	IP65

Model	Power	Rated current	Voltage	CCT
ONN-M3M-B1	4.5W	190mA	AC/DC 24V	5500-6000K
ONN-M3M-B2	4.5W	190mA	AC/DC 24V	4000-4500K
ONN-M3M-C1	4.5W	20mA	AC 100-240V	5500-6000K
ONN-M3M-C2	4.5W	20mA	AC 100-240V	4000-4500K

Product Size Drawing :

Package Data :

Packing material	Carton Box
Model Name(MM)	500
Net Weight / pc (Kg)	1.6
Gross Weight / Cnt (Kg)	16
Packing Qty (PCS)	9
Inner box size(LWH)mm	5109075
Outer box size(LWH)mm	580285233
