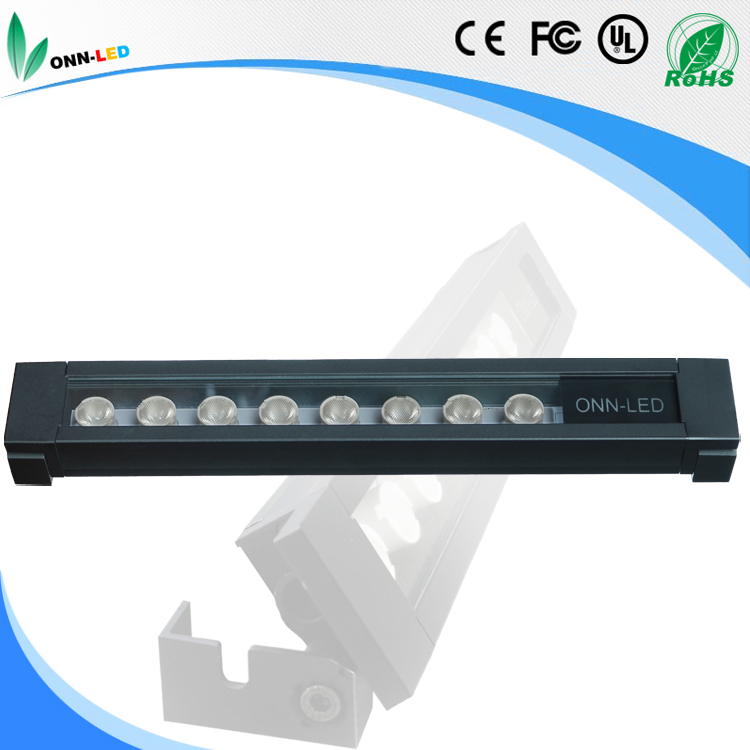

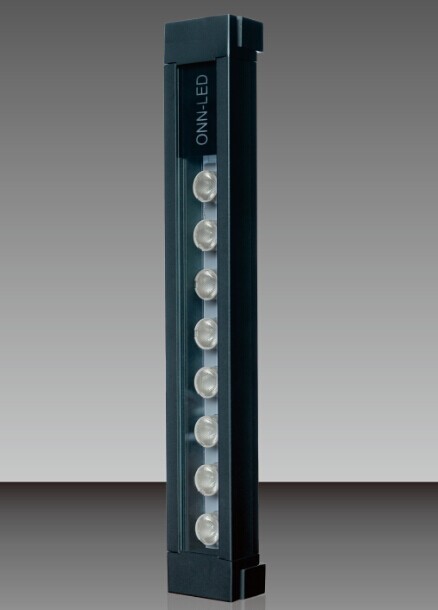

ONN-M9T IP65 Led machine light / Water-proof led machine work light

Click on the image to view the original image

Product：	views：2ONN-M9T IP65 Led machine light / Water-proof led machine work light
Branch：	ONN
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 21:42

Product Details

Overview

Quick Details

Light Source:: LED

Input Voltage(V):: 24V

Lamp Luminous Flux(lm):: 1800

CRI (Ra>):: 80

IP Rating:: IP65

Certification:: ETL, RoHS, FCC, CE

Place of Origin:: Guangdong, China

Brand Name:: ONN

Model Number:: ONN-M9T

Application:: cnc machine lighting

Model Name:: Led explosion-proof light for cnc machine

Voltage:: 24V / 220V

Power Rating:: 8.5W/13W/16W/20W

View angle:: 60 degree

Lum:: 90-100lum/w

CCT:: 4000-4500K&5500-6000K

Working temperature:: -40-50 degree

Length:: 280/380/480/580mm

Mounting:: Fixed by Clamp / T-shape strap and screws

Features:: Water-proof / Oil-proof / Explosion-proof

Supply Ability

Supply Ability:: 10000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: 1pcs/ inner box ; 12pcs/ outer box
According to customr's requests

Port: Shenzhen, China

Lead Time:

Quantity(Pieces)	1 - 10	11 - 50	51 - 200	>200
Est. Time(days)	5	7	8	To be negotiated

ONN-M9T IP65 Led Flexible Work Light / 24V LED Machine Work Light / Water-proof led machine work light

Product Features

1. Made of Aluminium housing & Tempered glass . Good heat dissipation .

2. IP67 Water-proof connector .

3. Adopt high power led beads and Isolated driver . Long lifespan .

4. Laser printing Logo on end cap , can highlight your brand .

5. Universal mounting bracket , 90 degree vertical adjustment .

6. OEM Available : Customized Length , power , color temperature .

Technical Parameter

Model	Power	Voltage	CCT	Lumen	Length	IP
ONN-M9T-8W	8.5W	DC24V	4000-4500K/5500-6000K	600-680LM	280mm	67
ONN-M9T-13W	13W	DC24V	4000-4500K/5500-6000K	910-1040LM	380mm	67
ONN-M9T-16W	16W	DC24V	4000-4500K/5500-6000K	1120-1280LM	480mm	67
ONN-M9T-20W	20W	DC24V	4000-4500K/5500-6000K	1400-1600LM	580mm	67

Product Size Drawing

Package Data

Packing material	Foam bag + Inner box + cartons
Size of products (MM)	280	380	480	580
N/W of one light (Kg)	0.4	0.5	0.6	0.7
G/W / cartons (Kg)	8.5	10.5	12.5	15
Qty / carton (PCS)	20	20	20	20
Size of inner box(LWH)mm	435230205	435230205	635230205	635230205
Size of outer carton(LWH)mm	4205538	4205538	6205538	6205538
