ONN-M9T led machine lamps/machine lights/working lamps IP67 CE

Click on the image to view the original image

Product：	views：3ONN-M9T led machine lamps/machine lights/working lamps IP67 CE
Branch：	ONN
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 21:42

Product Details

Overview

Quick Details

Item Type:: Machine Tool Working Lamps

Light Source:: LED

Input Voltage(V):: 24/220

Lamp Power(W):: 20

Lamp Luminous Flux(lm):: 2000

Lamp Luminous Efficiency(lm/w):: 100

CRI (Ra>):: 80

Color Temperature(CCT):: Pure White

Working Temperature(℃):: -18 - 50

Working Lifetime(Hour):: 50000

IP Rating:: IP67

Certification:: CCC, CE, EMC, FCC, RoHS

Emitting Color:: White

Lamp Body Material:: Aluminum

Place of Origin:: Guangdong, China

Brand Name:: ONN

Model Number:: ONN-M9T

Model Name:: CNC LED machine lamps/machine lights/working lamps

Voltage:: 24V / 220V

Power Rating:: 8.5W/13W/16W/20W

View angle:: 60 degree

Efficiency:: 90-100lum/W

CCT:: 4000-4500K&5500-6000K

Working temperature:: -40-50 degree

Length:: 280/380/480/580mm

Mounting:: Fixed by Clamp / T-shape strap and screws

Features:: Water-proof / Oil-proof / Explosion-proof

Supply Ability

Supply Ability:: 10000 Piece/Pieces per Quarter CNC LED machine lamps/machine lights/working lamps

Packaging & Delivery

Packaging Details: 1pcs/ inner box ; 12pcs/ outer box
According to customr's requests
CNC LED machine lamps/machine lights/working lamps

Port: Shenzhen, China

Lead Time:

Quantity(Pieces)	1 - 20	21 - 100	101 - 500	>500
Est. Time(days)	5	7	10	To be negotiated

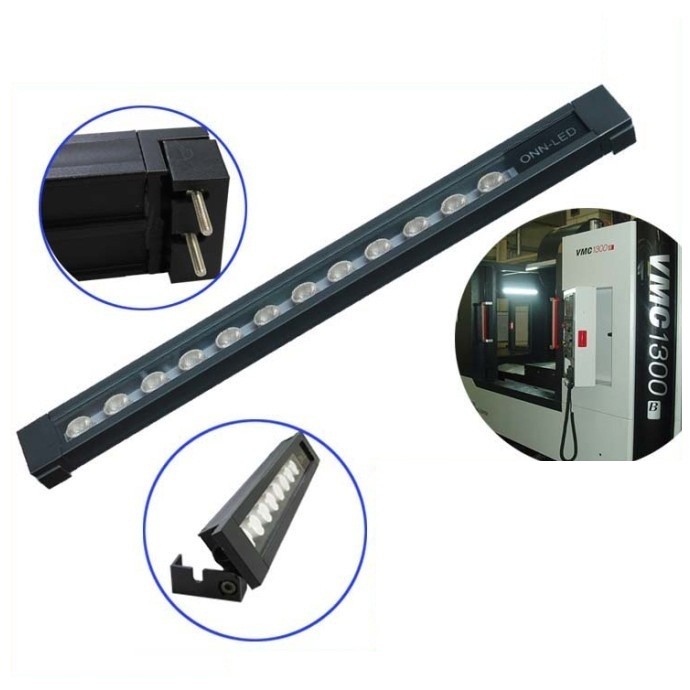

ONN-M9T 24v CNC LED machine lamps/machine lights/working lamps CE IP67

Product Features

1. Made of Aluminium housing & Tempered glass . Good heat dissipation.

2. IP67 Water-proof connector.

3. Adopt high power led beads and Isolated driver . Long lifespan.

4. Laser printing Logo on end cap , can highlight your brand.

5. Universal mounting bracket , 90 degree vertical adjustment.

6. OEM Available : Customized Length , power , color temperature.

Technical Parameters

Brand	ONN	Surface Temperature	<50°C
Light source	COB	Mounting	Fixed by T-shape strap and screws
Lifespan of light source	50000+ hours	Place of original	Shenzhen , China
Viewangle	60°	CCT	4000-4500K&5500-6000K
luminious flux	90-100LM/W	IP grade	IP65
Voltage	24V	Working temperature	-40-50°C
length	280/380/480/580mm

Model	Power	Voltage	CCT	Lumen	Length	IP
ONN-M9T-8W	8.5W	DC24V	4000-4500K/5500-6000K	600-680LM	280mm	67
ONN-M9T-13W	13W	DC24V	4000-4500K/5500-6000K	910-1040LM	380mm	67
ONN-M9T-16W	16W	DC24V	4000-4500K/5500-6000K	1120-1280LM	480mm	67
ONN-M9T-20W	20W	DC24V	4000-4500K/5500-6000K	1400-1600LM	580mm	67

Product Size Drawing

Package Data

Packing material	Foam bag + Inner box + cartons
Size of products (MM)	280	380	480	580
N/W of one light (Kg)	0.4	0.5	0.6	0.7
G/W / cartons (Kg)	8.5	10.5	12.5	15
Qty / carton (PCS)	20	20	20	20
Size of inner box(LWH)mm	435230205	435230205	635230205	635230205
Size of outer carton(LWH)mm	4205538	4205538	6205538	6205538

Application

Machine interior lighting , Carved machine , Sparks machine .

All kinds of Numerically-controlled machine tool equipment.

Electrical discharge machine , Laser welder ,Grinder , Work Bench and so on .

M Series IP67 Machine Work Light
