ONN-M9 Explosion-proof CNC Led Machine Tool Lamp

Click on the image to view the original image

Product：	views：3ONN-M9 Explosion-proof CNC Led Machine Tool Lamp
Branch：	ONN
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 21:42

Product Details

Overview

Quick Details

Item Type:: Machine Tool Working Lamps

Light Source:: LED

Input Voltage(V):: 24/220

Lamp Power(W):: 24

Lamp Luminous Flux(lm):: 2200

Lamp Luminous Efficiency(lm/w):: 100

CRI (Ra>):: 80

Color Temperature(CCT):: 4000-4500K/5500-6500K

Working Temperature(℃):: -40 - 50

Working Lifetime(Hour):: 50000

IP Rating:: IP65

Certification:: CCC, CE, FCC, RoHS

Emitting Color:: Other

Lamp Body Material:: Aluminum Alloy

Place of Origin:: Guangdong, China

Brand Name:: ONN

Voltage:: 24V / 220V

Power Rating:: 8W/12W/18W/24W

View angle:: 120 degree

Central LUX:: 70cm 450Lux

CCT:: 4000-4500K&5500-6000K

Working temperature:: -40-50 degree

Length:: 300/400/600/800mm

Mounting:: Fixed by Clamp / T-shape strap and screws

Certificate:: CE / IP65 / FCC / ISO

Application:: Especially for cnc machine and coldstorage

Supply Ability

Supply Ability:: 10000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: 1pcs/ inner box ; 12pcs/ outer box
According to customr's requests

Port: Shenzhen, China

Lead Time:

Quantity(Pieces)	1 - 500	>500
Est. Time(days)	7	To be negotiated

ONN-M9 Explosion-proof CNC Led Machine Tool Lamp

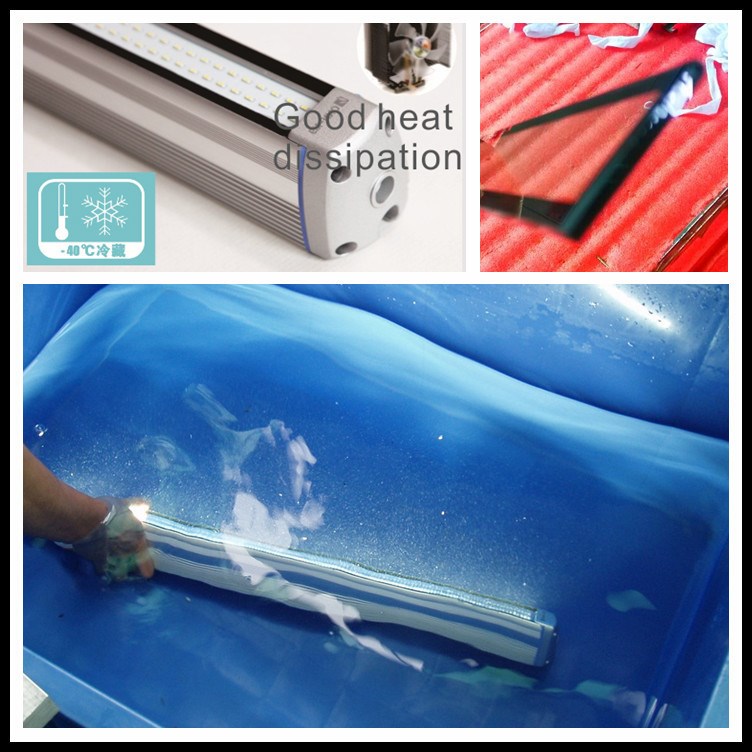

Features of IP67 Led Waterproof Lights / 24v Machine Work Lights

Excellent Taiwan chip . SMD 2835 good thermal condutivity , low light decay .
CRI> 80 . Light efficiency > 100lum/W .
Aluminium Housing & Toughened Glass . Long lifespan & Good heat dissipation .
Resistant to low temperature of -40°C, no frosting , instant starting .
360°adjustable, surface mounting or magnetic mounting, easy installation.
CE FCC IP67 certificated .

Specifications

Brand	ONN	Surface Temperature	<50°C
Light source	SMD 2835	Mounting	Fixed by T-shape strap and screws
Lifespan of light source	50000+ hours	Place of original	Shenzhen , China
Viewangle	120°	CCT	4000-4500K&5500-6000K
luminious flux	100LM/W	IP grade	IP65
Voltage	24V/220V	Working temperature	-40-50°C
length	300/400/600/800mm

Model No.	Power Rating	Current	Voltage	CCT
ONN-M9-B1	7/12/16/20W	400/550/800/900mA	24V	5500-6000K
ONN-M9-B2	7/12/16/20W	400/550/800/900mA	24V	4000-4500K
ONN-M9-C1	7/12/16/20W	40/55/85/110mA	220V	5500-6000K
ONN-M9-C2	7/12/16/20W	40/55/85/110mA	220V	4000-4500K

Drawing

Package Data

Packing material	Foam bag + Innerbox + cartons
Size of products(MM)	300	400	600	800
N/W of one light (Kg)	0.53	0.705	1.02	1.22
G/W of total cartons (Kg)	15.5	10.5	15.5	13.5
Qty in carton (PCS)	24	12	12	9
Size of inner box(LWH)mm	780285233	580285233	780285233	990210233
Size of outer carton(LWH)mm	7706070	5706070	7706070	9706570

Sales terms

MOQ: Full carton ( 12pcs ) . Accept sample order .
Warranty: 3 Years .
Payment: T/T, Paypal, Western Union. 30% payment in advance, balance paied before shippment.
Production Time: 5-7 days for sample order, 7-15 days for official order .

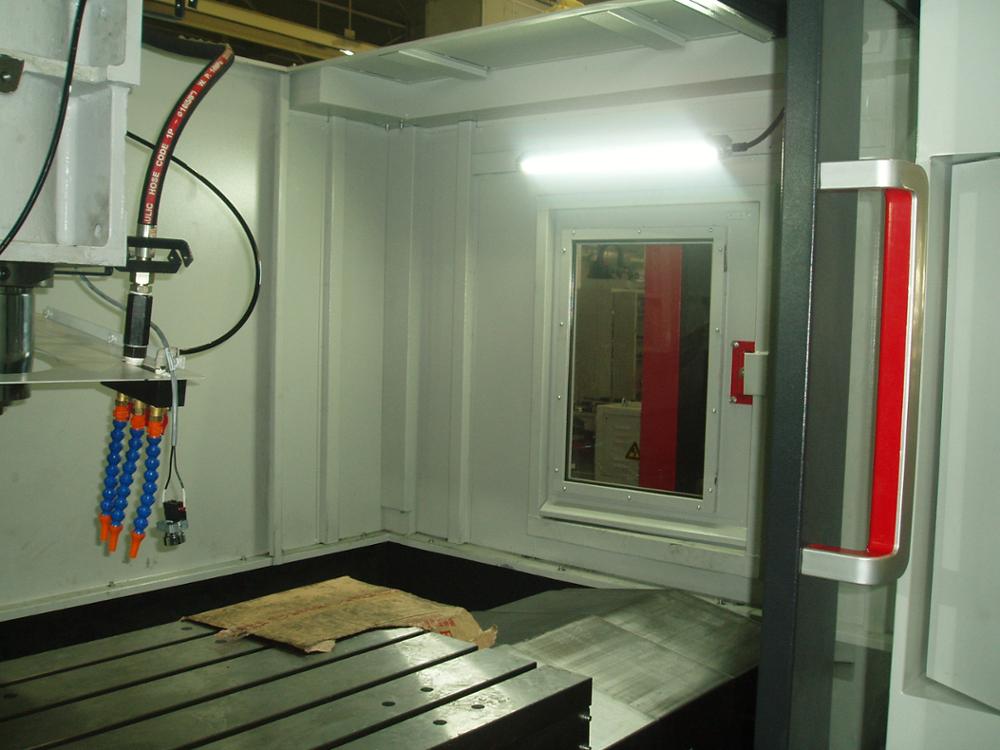

Application

All kinds of Numerical CNC Machine , Sculptor , Electrical Discharge Machine , Electric Discharge Machine , Laser Welder ,Grinder . All kind of refrigeratory , cold storage , assembly line Machineinterior lighting, food factory, pharmaceutical factory, aquaculture industry, mushroomindustry .
