Home > Products > LED Machine Tool Light M2

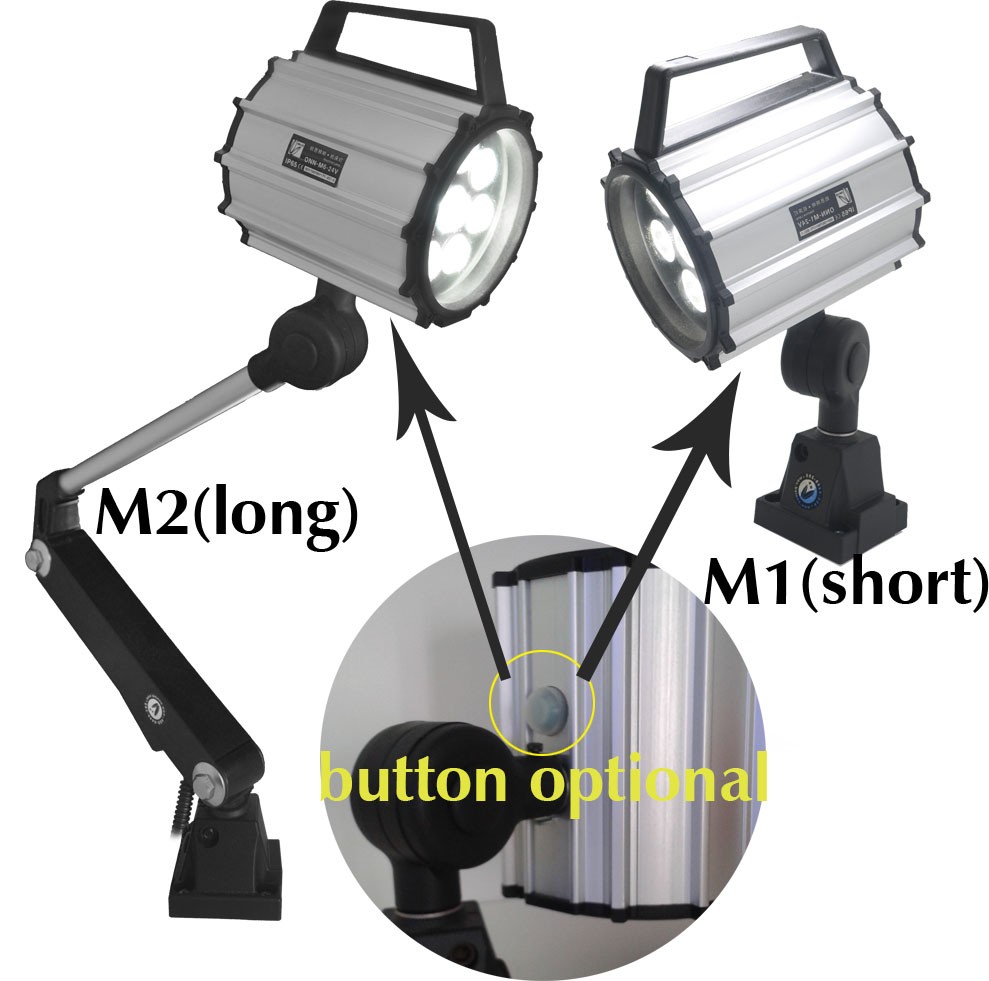

LED Machine Tool Light M2
Click on the image to view the original image
Product： views：2LED Machine Tool Light M2
Branch： ONN
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 21:42
  Negotiated
Product Details
Overview
Quick Details
Item Type:
Machine Tool Working Lamps
Light Source:
LED
Input Voltage(V):
12V / 24V / 100-240V
Lamp Power(W):
9.5
Lamp Luminous Flux(lm):
600
Lamp Luminous Efficiency(lm/w):
100
CRI (Ra>):
80
Color Temperature(CCT):
Pure White
Working Temperature(℃):
-20 - 45
Working Lifetime(Hour):
50000
IP Rating:
IP65
Certification:
CE, RoHS
Emitting Color:
Changeable
Lamp Body Material:
Aluminum Alloy
Place of Origin:
Guangdong, China
Brand Name:
ONN
Model Number:
ONN-M2
Item:
Led Machine Tool Light
Voltage:
ac/dc 12v /24v, ac100-240v
Power:
7w / 9.5w
CCT:
4000-4500K / 5500-6000K
CRI:
80%
Central Lux:
70cm : 1800-1900lux
Arm Length:
190mm / 270mm / 400mm
Certificate:
CE FCC CCC
Main Meterial:
Alluminium alloy , Tempered Glass
Honor Customer:
SMTC / Knuth / Romi
Supply Ability
Supply Ability:
5000 Piece/Pieces per Week machine tool light
Packaging & Delivery
Packaging Details
1pcs/inner box;6 inner boxes/carton;
Inner box:34*12.5*25cm;Carton:53*53*33cm;
According to customers' requests.
Port
shenzhen

ONN-M2   12V / 24V / 100-240V  Led Machine Lamp / Flexible Long Arm Led Light For CNC Machine   CE  FCC IP65







 Application :





Machine interior lighting,the places which need local accent lighting such as carved machine,sparks machine, All kinds of Numerically-controlled machine tool equipment. Centerless grinding machine , Electrical discharge machine , Laser welder ,Grinder , Work Bench and so on .





Product Features :




1. Sectional aluminum construction,water-proof adhesive tape,and toughened glass, etc parts combine well,integrate water-proof,heat dissipation and appearance completely.

2.ONN-M2 series product adopt hi-power chips imported from Taiwan,this light source is with small size,lower thermal resistance,fine thermal conductivity,lower heat dissipation,which is good choice for lighting fixture.

3. Aluminum alloy die-casting joint support,sturdy and durable,concise and generous,270°adjust can be done,let the lamplight free.

4. Back light advertising design . customer"s brand highlight the distinguished .

5. Big allowance design,long lifespan capacitance,external driver,sharply increase the lifespan of driver,modular design,easy to replace once the driver failed.

6. Fine workmanship,high brightness,it is the best choice for middle and top grade machinery,promote the machinery grade and selling points.




Technical Parameters :





BrandONNSurface Temperature<50°C
Light source1-3W/PCSMountingFixed by clamp and screws
Lifespan of light source50000 hoursPlace of OrigiShenzhen China
Viewangle60°CRI

75%

Central LUX

70cm:   (7W)1400Lux                     (9.5W)1800-1900Lux

IP grade

 IP65





ModelPowerVoltageCCTBeam AngleIPBase
ONN-M2-B1-77WDC24V5500-6000K60 degree65screw fixed
ONN-M2-B2-77WDC24V4000-4000K60 degree65screw fixed
ONN-M2-B1-99.5WDC24V5500-6000K60 degree65 screw fixed
ONN-M2-B2-99.5WDC24V4000-4500K60 degree65 screw fixed
ONN-M2-C1-77WAC100-240V5500-6000K60 degree65 screw fixed
ONN-M2-C2-77WAC100-240V4000-4500K60degree65 screw fixed
ONN-M2-C1-99.5WAC100-240V5500-6000K60 degree65screw fixed
ONN-M2-C2-99.5WAC100-240V4000-4500K60 degree65screw fixed









Product Size Drawing :







More detail :






Related Product"s Links for CNC Machine :









Company  Information :





Brief Introduction :



Shenzhen ONN Semoconductor Lighting Co., Ltd, established in 2005, is a pioneer manufacturer of led industrial lighting products in China . With 10 years development, we have become the leader of producing and supplying led industrial lights in China. We have gained a 60% domestic market, and our products have also been exported widely exported to the world with fast increase year by year. We have cooperated with big customers from Germany, France, Amercia, Japan, South Korea, Australia and so on. Our aim is to become the biggest and best supplier of led industrial lights from China to the world.



We will continue to do our best to develop and produce high quality and price competitive products to our clients.

We hope very much to cooperate with more and more friends from the world to develop the brilliant led industrial lighting market .







HK Lighting Fair :





ONN Service :



Samples Policy:

Samples will be charged according to our quotation and delivered at our factory or warehouse.



Warranty Policy:

1. If the product have a failure occurs under normal usage within warranty period, we will provide free new

products based on the proof-documents



2. If Failure or damage due to incorrect operation, wire connection, or anything other do not follow our instruction,

we will provide paid maintance within warranty period.







Certificates :
