24v/220v Industrial LED Mechanics Work Lamp Water-proof Lights
Application :

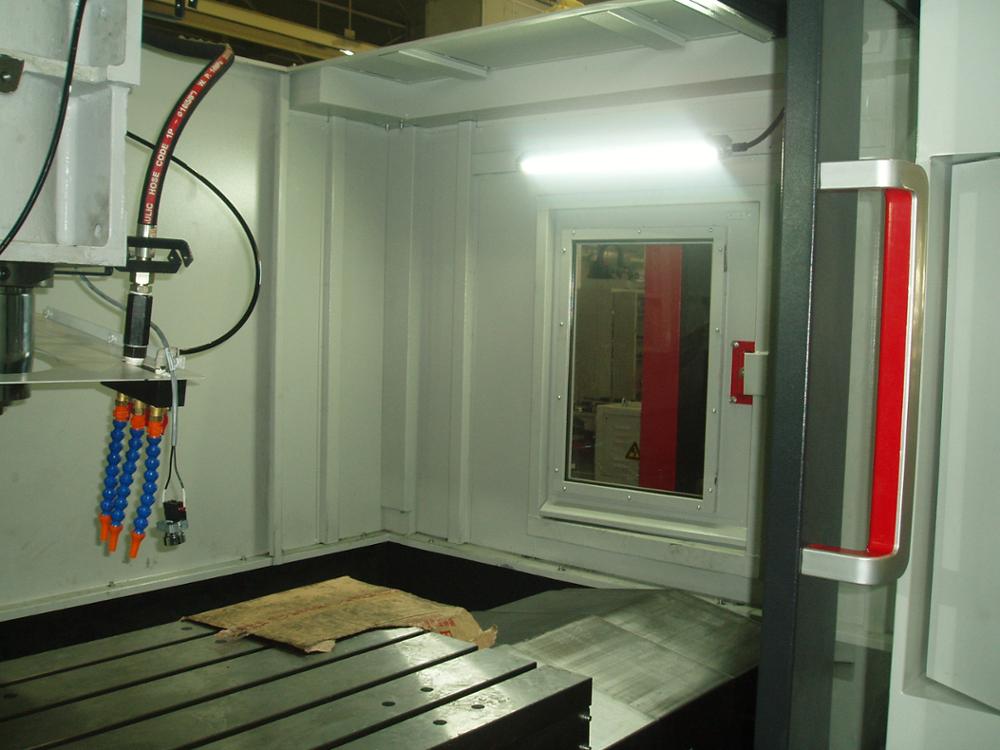

All kind of refrigeratory , assembly line Machineinterior lighting, food factory, pharmaceutical factory,aquaculture industry,
mushroomindustry (applicable for all the places which is not easy to change place,have the needs of water-proof,explosion-proof,it is the revolutionary alternatives of traditional "three anti-light" and explosion-proof lights).

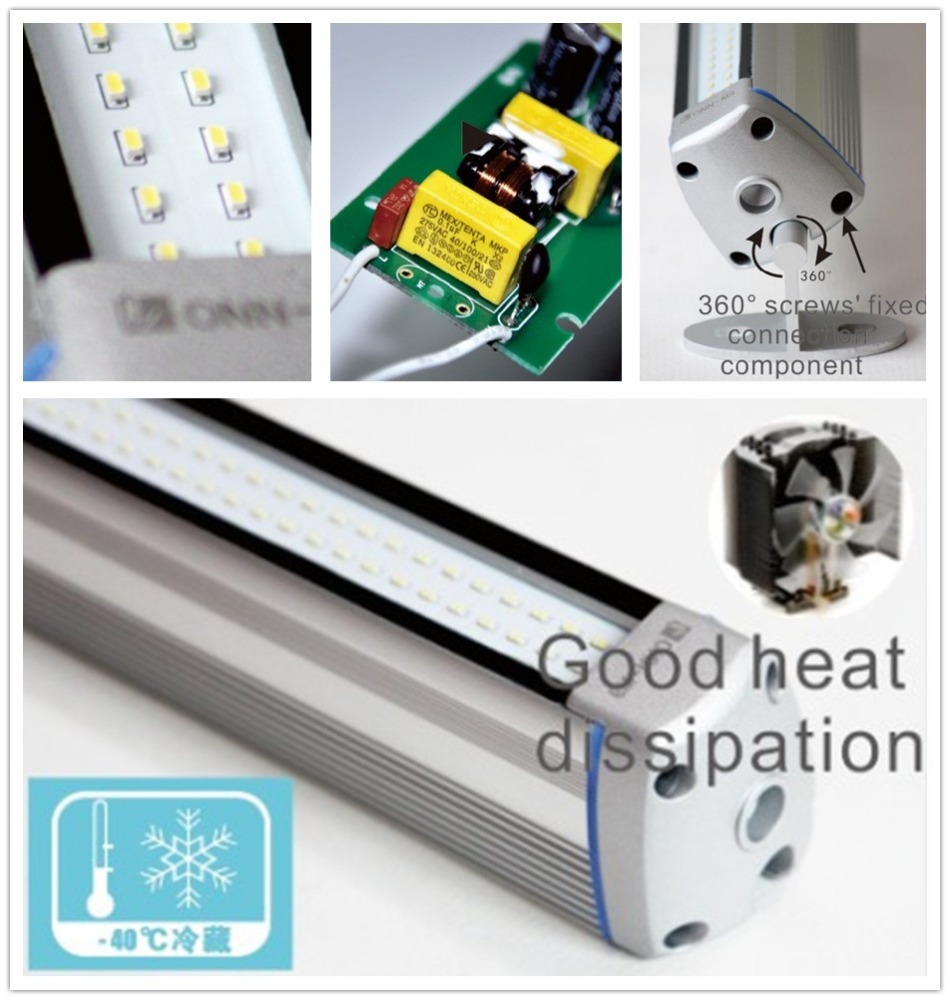

Product Features :
1. Large double energy-saving , long lifespan , maintenance-free man-hour cost ,especially suitable for ultra-low temperature cold storage enviroments .
2. ONN M9 series adopt 3014 light source which imported from Taiwan. Low thermal resistance ,good thermal condutivity , low light decay .
3. Resistant to low temperature of -40°C, no frosting , intantaneous starting .
4. Die-casting Construction,Water-proof Adhesive Tape,Water-proof Silicon and Toughened Glass combined together,Unify Water-proof,Heat Dissipation and Appearance completely.
5. Patented construction,consise and generous,360°adjustable,two installing way of clamp and dowel,easy installation.
6. Big allowance design,imported Rubycom capacitance,increase the lifespan of driver sharply,
7. Modular design,easy to replace once the driver failed.
The Value-added services which ONN can supply to you :
1 . ONN can supply LED lighting solutions of Specific projects to you
2 . ONN can supply analysis of energy saving effect to your customers,convenient for you to recommend to your customers
Technical Parameters :
| Brand | ONN | Surface Temperature | <50°C | |
| Light source | SMD 3014 | Mounting | Fixed by T-shape strap and screws | |
| Lifespan of light source | 50000+ hours | Place of original | Shenzhen , China | |
| Viewangle | 120° | CCT | 4000-4500K&5500-6000K | |
| luminious flux | 100LM/W | IP grade | IP65 | |
| Voltage | 24V/220V | Working temperature | -40-50°C | |
| length | 300/400/600/800mm | |||
| Model No. | Power Rating | Current | Voltage | CCT |
| ONN-M9-B1 | 8/12/18/24W | 400/550/800/900mA | 24V | 5500-6000K |
| ONN-M9-B2 | 8/12/18/24W | 400/550/800/900mA | 24V | 4000-4500K |
| ONN-M9-C1 | 8/12/18/24W | 40/55/85/110mA | 220V | 5500-6000K |
| ONN-M9-C2 | 8/12/18/24W | 40/55/85/110mA | 220V | 4000-4500K |
Product Size Drawing :
More detail :
Payment Term and Shipping :
Company Information :
Brief Introduction :
ONN Culture :
Certificates :
Contact Us :
