ONN-M3M China machine tool lamp& Flexible hose led gooseneck lamp&LED magnet light

Click on the image to view the original image

Product：	views：4ONN-M3M China machine tool lamp& Flexible hose led gooseneck lamp&LED magnet light
Branch：	ONN
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-11-19 21:43

Product Details

Overview

Quick Details

Item Type:: Machine Tool Working Lamps

Light Source:: LED

Input Voltage(V):: 24/220V

Lamp Power(W):: 4.5

Lamp Luminous Efficiency(lm/w):: 100

CRI (Ra>):: 80

Color Temperature(CCT):: 4000-4500/5500-6000K

Working Temperature(℃):: -20 - 40

Working Lifetime(Hour):: 50000

IP Rating:: IP65

Certification:: CCC, CE, FCC, RoHS

Emitting Color:: Other

Lamp Body Material:: Aluminum

Place of Origin:: Guangdong, China

Brand Name:: ONN

Voltage:: 24 / 220V

Light source:: 3w/pcs

lifespan:: 50000 Hours

Working temperature:: -20-40 degree

luminous flux:: 100Lm/W

Main Meterial:: Aluminum

Mounting:: Fixed by Magnetic Base

Central Lux:: 70cm:650-750Lux

View angle:: 30 degree

IP Grade:: IP65

Supply Ability

Supply Ability:: 2000 Piece/Pieces per Week

Packaging & Delivery

Packaging Details: 1pcs/inner box;6 inner boxes/carton;
According to customr's requests

Port: Shenzhen, China

Lead Time:

Quantity(Pieces)	1 - 200	>200
Est. Time(days)	7	To be negotiated

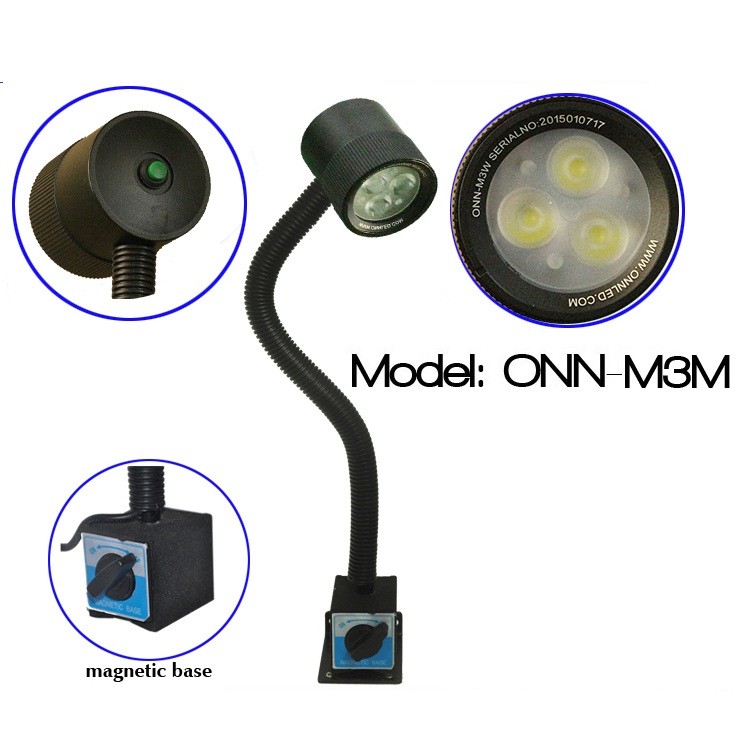

ONN-M3M China machine tool lamp& Flexible hose led gooseneck lamp&LED magnet light

Product Features :

1. Magnetic Base Fixed , easy mounting and free moving .

2. Integrated lamp head , water-proof is good . Especially designed for cnc machine .

3. Aluminum Lamp head with good heat dissipation .

4. Low-current design ensures the product"s long lifespan .

5. Imported beads from Taiwan, high brightless and good heat dissipation .

6. Branded domestic driver,which ensure the product lifespan more than 3 years .

7. Universal Flexible Pipe , can adjust the emitting angle freely .

Technical Parameters :

Brand	ONN	Surface Temperature	<50°C
Light source	1-3W/PCS	Mounting	Fixed by clamp and screws
Lifespan of light source	50000 hours	Place of Origin	Shenzhen China
Viewangle	30°	CRI	70%
Central LUX	70cm: 650-750Lux	IP grade	IP65

Model	Power	Rated current	Voltage	CCT
ONN-M3M-B1	4.5W	190mA	AC/DC 24V	5500-6000K
ONN-M3M-B2	4.5W	190mA	AC/DC 24V	4000-4500K
ONN-M3M-C1	4.5W	20mA	AC 100-240V	5500-6000K
ONN-M3M-C2	4.5W	20mA	AC 100-240V	4000-4500K

Product Size Drawing :

Package Data :

Packing material	Carton Box
Model Name(MM)	500
Net Weight / pc (Kg)	1.6
Gross Weight / Cnt (Kg)	16
Packing Qty (PCS)	9
Inner box size(LWH)mm	5109075
Outer box size(LWH)mm	580285233
