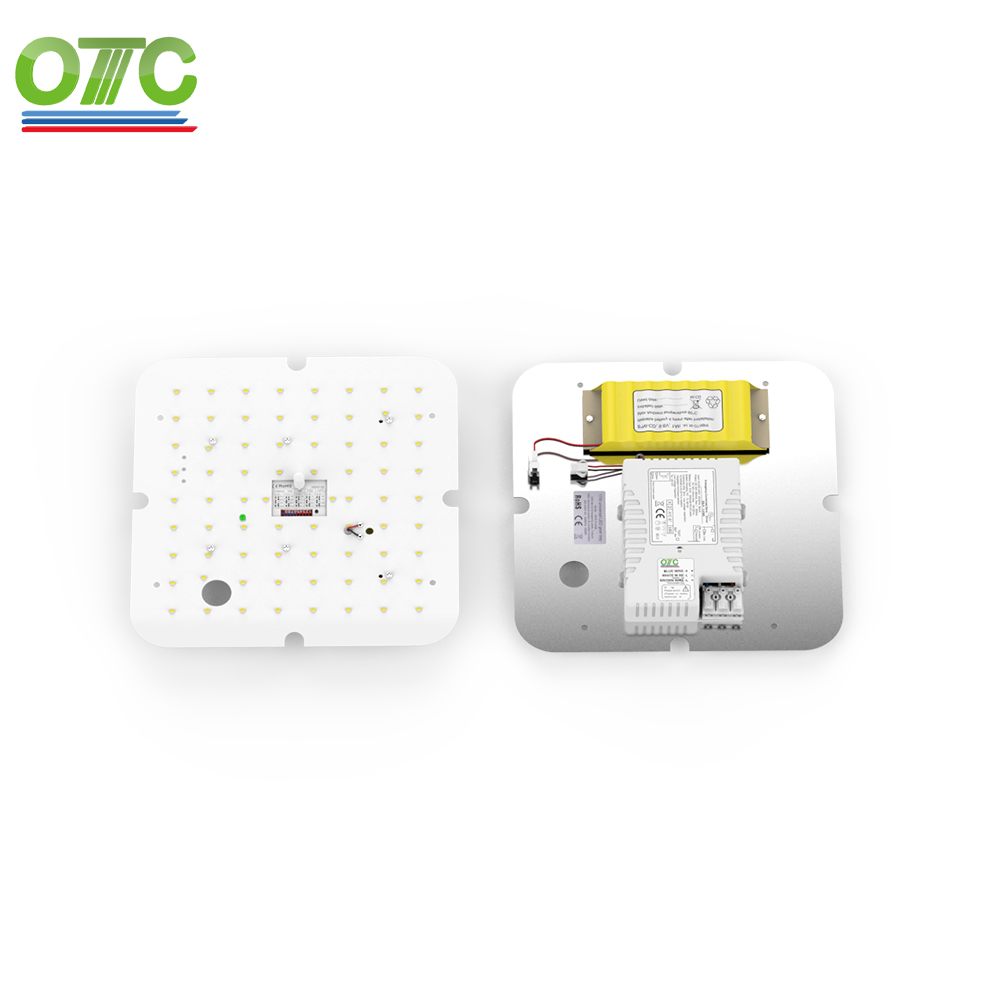

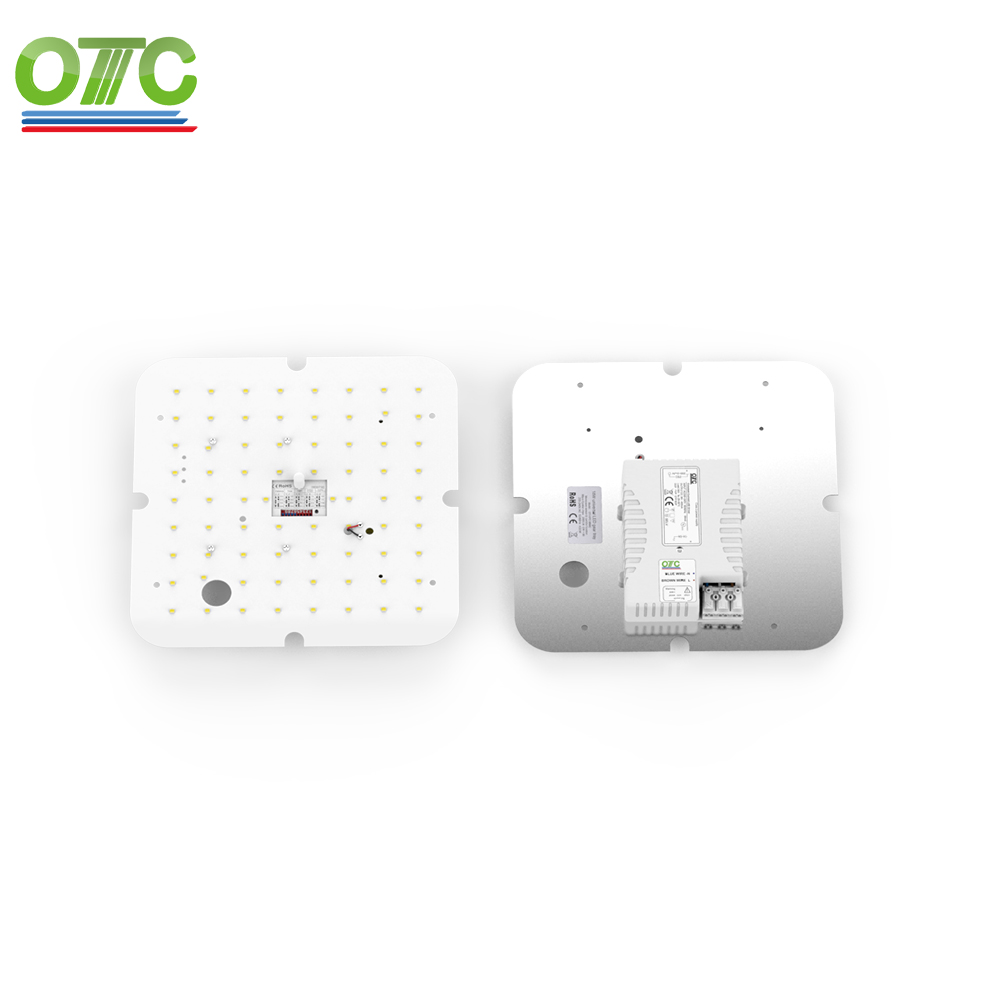

OT-HSC72EMC 1700LM LED15W LED square tray with microwave sensor and emergency
| Machinary data |
| Item:OTC-HPC-96MC 18W emergency gear tray | |
| Size: See Left | |
| Material:Aluminium plate + PC driver | |
| Weight: 600g | |
| Anbinate temperature: 0~55°C | |
| Guarantee:5 Years(Batteries 4 years) | |
| IP/IK: IP20/ IK06 |
15W LED square tray with microwave sensor and emergency Range
| | | |
| HPC40 Serial | HPC72 Serial | HPC96 Serial | HSC 72 Serial |
| Electric Data | Rate Supply voltage | 174~264V 50/60HZ |
| Main Power | 17W | |
| Typical λ(@230V 50HZ) | >0.8 | |
| Leak Current (PE) | 0 | |
| Over Voltage protection | 320V(1H) | |
| Max Permit forward voltage LED | 41V |
Electric Date Emergency | Battery pack type | 8 pcs NI-CD pack 9.6V 1Ah |
| Emergency mold | Combined non-maintained | |
| Max forwawrd Emergency LED | 7.4V | |
| The Power consuption if only emergency | 2.0W | |
| Typical λ if only emergency circuit | 0.65 | |
| Charing current | 50mA / 24 hrs | |
| Discharging | 30mA / 3hrs | |
| Changeover | <0.1S @150V AC | |
| Battery protection | Max:11.4V / Min7.2V | |
| Indicate light | Green F5 LED bulb | |
| Test Button / rest mold / inhibit mold | Y / Y / Y |
Sensor & Corridor function
| Sensor type | oytput side, RCR SENSOR |
| Sensor Power consumption | 0.2W | |
| Distance setting | 3~12 meters | |
| Lux Trigger setting | 0~3000lux | |
| Delay time setting | 10s, 30s, 1min, 5min, 30min, 1hrs | |
| Corridor function | 180 lm if lux<50 | |
| Corridor function inhibit | if lux >300 |
The optical details of OT-HPC96MC 2000LM LED18W LED tray with microwave sensor
Optical Data
| efficacious LED chip | Epistar 96 pcs 2835# |
| Lumen | 2000 Max | |
| Lumen @emergency mold | 180 @25°C | |
| CCT | 2600~6500 Optional | |
| CRI | 82 |
| Optional Function | ||
| NI-MH battery pack backup | 9.6V 1.5Ah, Ni-MH pack | |
| Multi CCT | 2600/4000/6000K integrated in one | |
| Dimmable | The Dimmable driver availavle | |
| Cree Chip |
OT-HSC72EMC 1700LM LED15W LED square tray with microwave sensor and emergency
General Technical support:
| Drawing of construction | Can be shown if you need it | confidential |
| Drawing for PCB | Can be shown if you place the order | Top Secret |
| Drawing for Elec. value | Can be shown if you need it | |
Knack for battery maintance | Can be shown if you need | |
| Test report of battery | Can be shown if you need | Confidential |
| Optical test for emergency lamp | Can be shown if you need it | Confidential |
| Maintain support | On line 7*24hours | By email |
| Key selling feature | Available |
Packing information:
PACKING INFORMATION of this OT-HSC72EMC 1700LM LED15W LED square tray with microwave sensor and emergency
| Packing: | color gift box with polyfoam |
| Inner packing: | 1pcs/inner box |
| Outer packing: | 10PCS/CTN |
| Carton Size: | 65x33x48cm |
| G.W.: | 8KGS |
| N.W.: | 7KGS |
