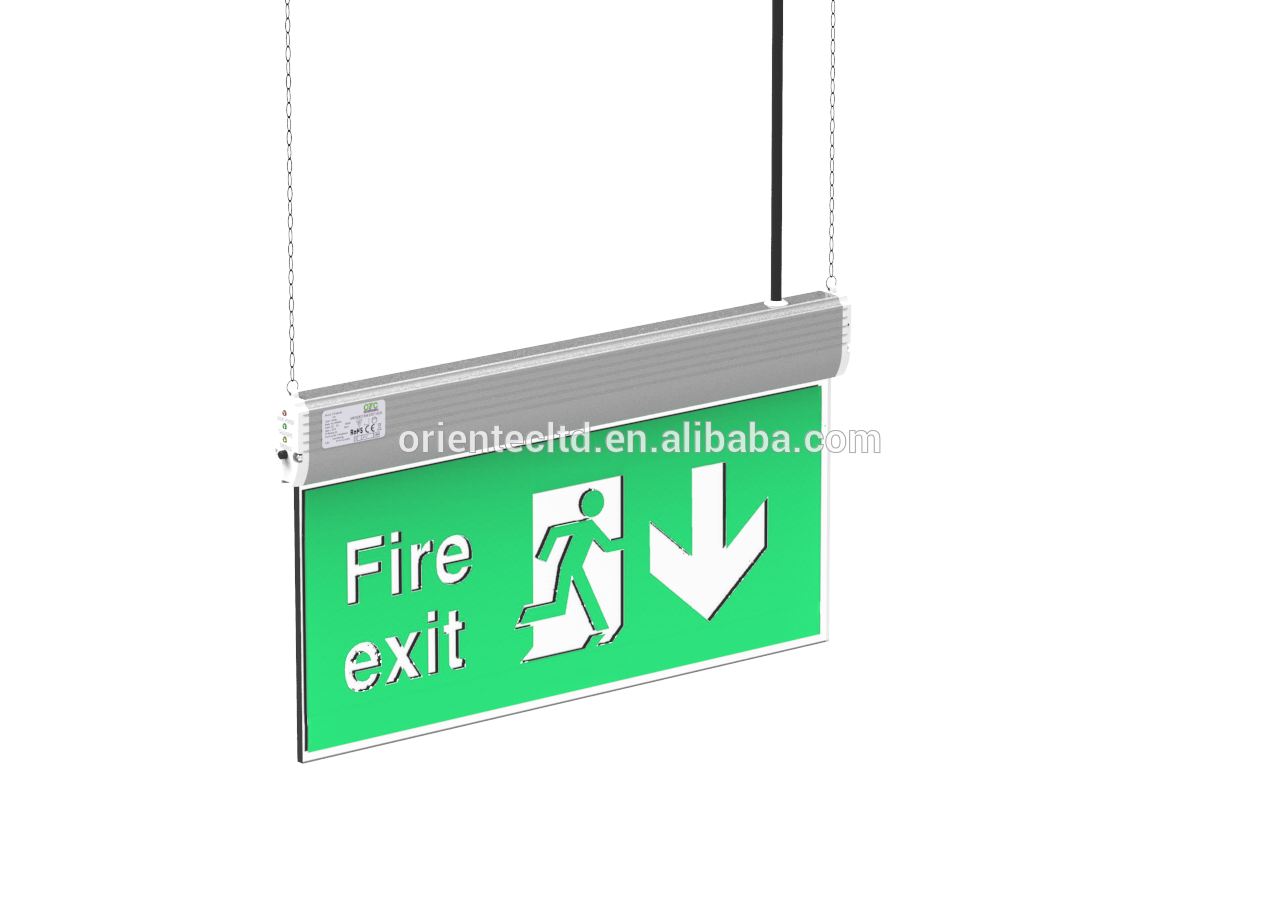

Details of OT-E8053 LED evacuation sign
| Machinary data |
| Item:OT-E8053 led evacuation sign | |
| Size: See Left | |
| Material: Aluminium +PMMA | |
| Weight:565g | |
| Anbinate temperature: 0~55°C | |
| Guarantee: 4 Years | |
| IP/IK: IP20 / IK08 |
| Electric Data | Rate Supply voltage | 174~264V 50/60HZ |
| Main Power | 2W | |
| Typical λ(@230V 50HZ) | >0.6 | |
| Leak Current (PE) | 0 | |
| Over Voltage protection | 320V(1H) | |
| Max Permit forward voltage LED | 3.7 |
Electric Date Emergency | Battery pack type | 3 pcs NI-CD pack 3.6V 0.8Ah |
| Emergency mold | maintained | |
| Max forwawrd Emergency LED | 3.7V | |
| Charing current | 35mA / 24 hrs | |
| Discharging | 15mA / 3hrs | |
| Changeover | <0.1S @150V AC | |
| Battery protection | Max:4.2V / Min2.7V | |
| Test Button / rest mold / inhibit mold | Y / Y / Y | |
| Emergency standard(full compliant) | IEC60598-2-22:2014 BS5266:2016 |
Optical Data
| efficacious LED chip | LED F5 bulb 5 pcs |
| Lumen | 30LM Max |
Install mode 1: hunging mode
Install mode 2: Side install
IEC standard details of this evacuation sign
PACKING INFORMATION of this LED evacuation sign
| Packing: | color box with polyfoam |
| Inner packing: | 1pcs/inner box |
| Outer packing: | 20 pcS/CTN |
| Carton Size: | 44*38*28cm |
| cG.W.: | 15KGS |
| N.W.: | 6KGS |
