Details of 96 ED 20 W LED sensor round emergency bulkhead light
| Machinary data |
| Item:OT-ESP-1N | |
| Size: See Left | |
| Material: PC and aluminium | |
| Weight:260g | |
| Anbinate temperature: 0~55°C | |
| Guarantee: 4 Years | |
| IP/IK: IP20 / IK08 |
| Electric Data | Rate Supply voltage | 174~264V 50/60HZ |
| Main Power | 1.5W | |
| Typical λ(@230V 50HZ) | >0.8 | |
| Leak Current (PE) | 0 | |
| Over Voltage protection | 320V(1H) | |
| Max Permit forward voltage LED | 3.7V |
Electric Date Emergency | Battery pack type | 3 pcs NI-CD pack 3.6V 1.8Ah |
| Emergency mold | non-maintained | |
| Max forwawrd Emergency LED | 3.8V | |
| The Power consuption if only emergency | 1.5W | |
| Typical λ if only emergency circuit | 0.65 | |
| Charing current | 100mA / 24 hrs | |
| Discharging | 400mA / 3hrs | |
| Changeover | <0.1S @150V AC | |
| Battery protection | Max:4.2V / Min2.4V | |
| Indicate light | Green 2-in-1 LED bulb | |
| Test Button / rest mold / inhibit mold | Y / N / Y | |
| Emergency standard(full compliant) | IEC60598-2-22:2014 BS5266:2016 |
Optical Data
| efficacious LED chip | 2-in-1 LED bulb, 1W white + 0.2W Green |
| Lumen | 150 in emergency mode | |
| CCT | 2600~6500 Optional | |
| CRI | 82 |
| |

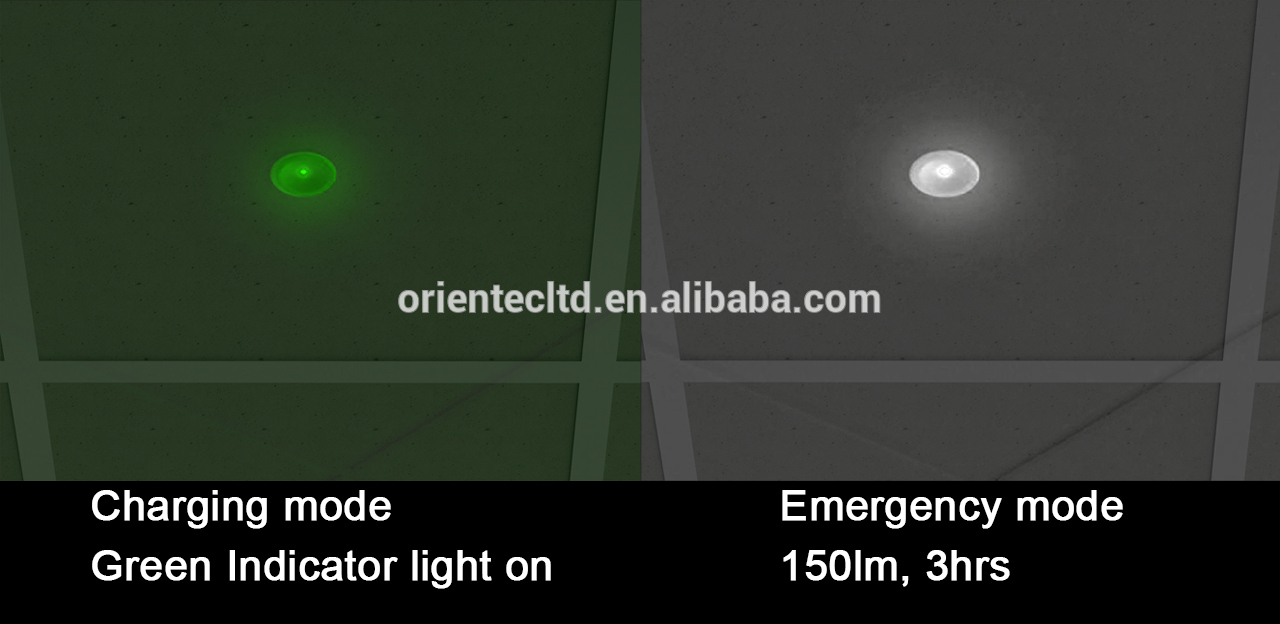

| The EM spot light under charging | The Spot light discharging/ emergency mode |
Easily test by megnet telescopic facility
| Optional Function | ||
| NI-MH battery pack backup | 3.6V 2.0Ah, Ni-MH pack | |
| Multi CCT | 2600/4000/6000K integrated in one | |
| Emergency mode | maintained/ non-maintained in one | |
| Cree Chip |
PACKING INFORMATION of this OT-ESP-1N 1W non-maintained emergency spot light
| Packing: | color box with polyfoam |
| Inner packing: | 1pcs/inner box |
| Outer packing: | 20pcS/CTN |
| Carton Size: | 50x28x23cm |
| G.W.: | 7.8KGS |
| N.W.: | 7.5KGS |
