Home > Products > OT-HCB-40EMC LED 850LM IP65 4000K 8W led maintained bulkhead light with corridor function
OT-HCB-40EMC LED 850LM IP65 4000K 8W led maintained bulkhead light with corridor function
Click on the image to view the original image
Product： views：4OT-HCB-40EMC LED 850LM IP65 4000K 8W led maintained bulkhead light with corridor function
Branch： OTC/ Orientec
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 17:49
  Negotiated
Product Details
Overview
Quick Details
Item Type:
Ceiling Lights
Light Source:
LED
Install Style:
Surface Mounted
Input Voltage(V):
100~240V
Lamp Luminous Flux(lm):
880
CRI (Ra>):
80
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
100000
Lamp Body Material:
PC
IP Rating:
IP65
Certification:
BV, CCC, CE, GS, LVD, RoHS, UL
Place of Origin:
Zhejiang, China
Brand Name:
OTC/ Orientec
Model Number:
OT-HCB-40EMC
Color:
White or silver gold plated
Movement sensor:
Available
Material:
100% PC maintained bulkhead light with corridor function
Usage:
out door lighting
Old type:
florescent 20W maintained bulkhead light with corridor function
Hot place:
EU and UK
ECO-Friendly:
ECO-maintained bulkhead light with corridor function
Sensor:
Input side sensor 10S~ 30 mins
Corridor function:
0 10 20 %30%optional
Autonomy time:
3hrs @120LM
Color Temperature(CCT):
Warm White
Lamp Power(W):
8
LED Light Source:
40 pcs 2835
Lamp Luminous Efficiency(lm/w):
110
Supply Ability
Supply Ability:
20000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
each maintained bulkhead light with corridor function in a inner carton box , and then 12boxes in out export carton
Port
NingboShanghai
Lead Time:
20 days after order confirmed
Bureau Certi

Details of   LED 1000LM IP65 4000K   8W led maintained bulkhead light with corridor function





Product Description



Machinary data
Item:OT-HCB-40EMC maintained bulkhead light with corridor function
Size: D20*8cm
Material:100% polycarbonate
Weight:900g
Anbinate temperature: 0~55°C
Guarantee:  4  Years
IP/IK: IP65 / IK10





Electric DataRate Supply voltage174~264V 50/60HZ
Main Power8W
Typical λ(@230V 50HZ)>0.8
Leak Current (PE)0
Over Voltage protection320V(1H)
Max Permit forward voltage LED41V



Electric Date

Emergency

Battery pack type8 pcs NI-CD pack  9.6V 1Ah
Emergency moldCombined  non-maintained
Max forwawrd Emergency LED7.4V
The Power consuption if only emergency2.5W
Typical λ if only emergency circuit0.65
Charing current50mA / 24 hrs
Discharging30mA / 3hrs
Changeover<0.1S  @150V AC
Battery protectionMax:11.4V / Min7.2V
Indicate lightGreen F5 LED bulb
Test Button / rest mold / inhibit moldY / Y / Y
Emergency standard(full compliant)IEC60598-2-22:2014  BS5266:2016



Sensor & Corridor function



Sensor typeoutput side, RCR SENSOR
Sensor Power consumption0.2W
Distance setting3~12 meters
Lux Trigger setting0~3000lux
Delay time setting10s, 30s, 1min, 5min, 30min, 1hrs
Corridor function180 lm if lux<50
Corridor function inhibitif lux >300



Optical Data



efficacious LED chipEpistar 40 pcs 2835#
Lumen880 Max
Lumen @emergency mold150
CCT2600~6500 Optional
CRI82

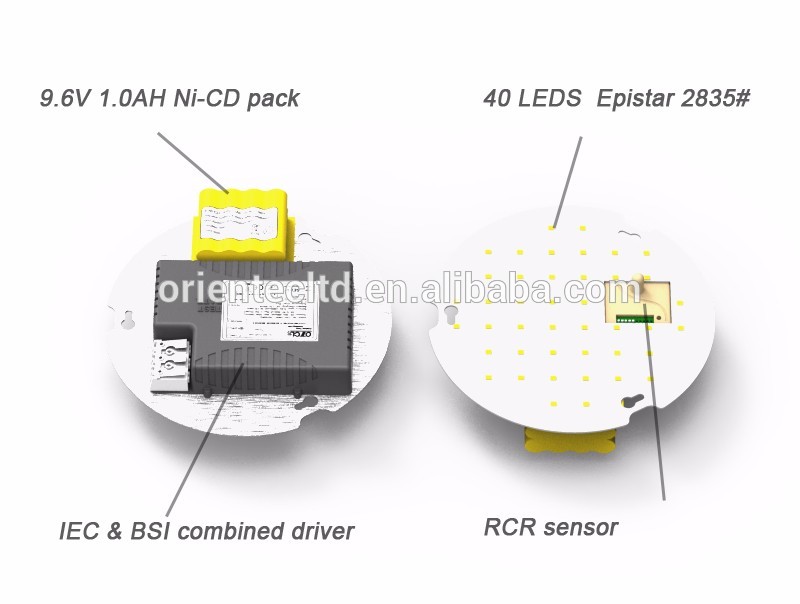

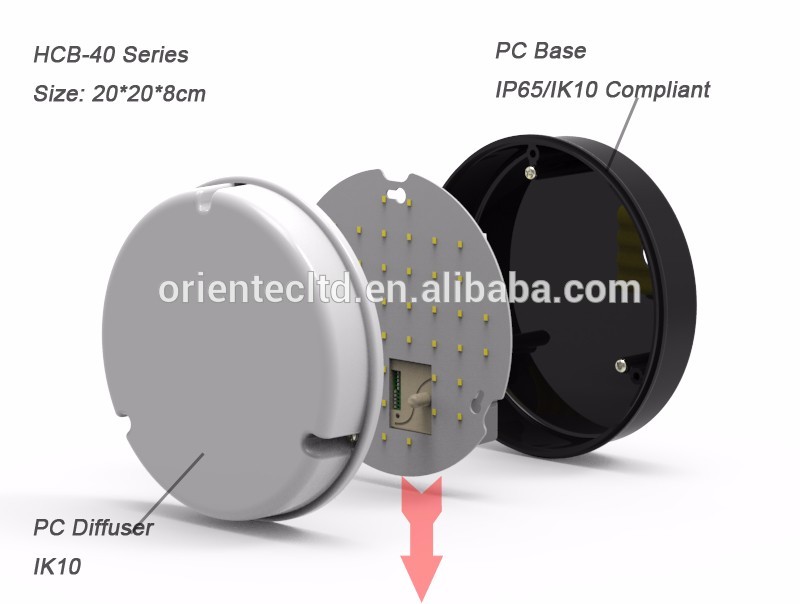

Inner construction of this maintained bulkhead light with corridor function

Optional color of this maintained bulkhead light with corridor function





Optional Function
Optional Function
NI-MH battery pack backup9.6V 1.5Ah, Ni-MH pack
Multi CCT2600/4000/6000K integrated in one
DimmableThe Dimmable driver availavle
Cree Chip
Packaging & Shipping

PACKING INFORMATION of this maintained bulkhead light with corridor function



Packing: color box with polyfoam
Inner packing: 1pcs/inner box
Outer packing:12pcS/CTN
Carton Size: 42x42x26cm
G.W.: 13KGS
N.W.:11KGS



Our Services

1. Projects & Technology Creating

2. Professional Technology support maintained bulkhead light with corridor function

3. OEM & Stratage service

Company Information

General instruction of OTC Electronic:

1. Ningbo OTC Electronic Co. is Branch of OTC IND.  This branch just specialize LED lighting.  It contains:

    A.  Low voltage version,  EMC and RoHS compliant.  For supermarket.

    B.  220V/110V industerial lighting.  EMC/ LVD/ RoHS compliant.  We work with famous

    C.  Emergency light for project only.  IEC60598-2-22:2014 full compliant. This used for bid government project.

    D.  OTC Own the patent of some item in this website.



2. Orientec Elec. with separate R & D depart.  We apprecite you ideas about impove our current items.

     A.  The engin team in OTC proficent  ProE, UG, Auto CAD and Protel.

     B.   The Marketing team will show you the trend in LED field.

     C.   You can sent inquiry as followed chart.



FAQ

 1. Q: What is the quality standard?

   ALL rhe emergency light in From OTC is full IEC compliant. Please don"t try to persuade OTC use Li-ion battery as battery system.

   PS:  The engineer can remove your doubt based on IEC/ CE documents  clause by clause.



2. Q:  Does the R&D depart show solutons free of charge?



  A:  If just some doubt. Solutions are not needed. Free of charge.

           eg.  Why the sensor of my light run out so quickly,  How yours can confirm 4 years guarantee?

                   Why the battery of our emergency light die just 50 cycles.



   B:  If you need new solutions.



          Part 1;  Draft solution sheet is free.

                  a.   The construction solution sheet just with some Auto CAD 2D drawing.

                  b.   The PCB solution just with general description.



          Part 2;  Formal solution sheet cost need confirm with sales manager.

                  a.   The construction solution sheet together with 3D drawigns.

                  b.   The PCB in protel and show you the sample to prove the function



   C:  If solution confirmed.  and order placed. The solution cost will be refund.





3. Q: MOQ, main market

  A:  The MOQ is 200pcs

  B,  The main market of OTC is Western Europe(especially UK and DE) and  US, AR, and AU.
