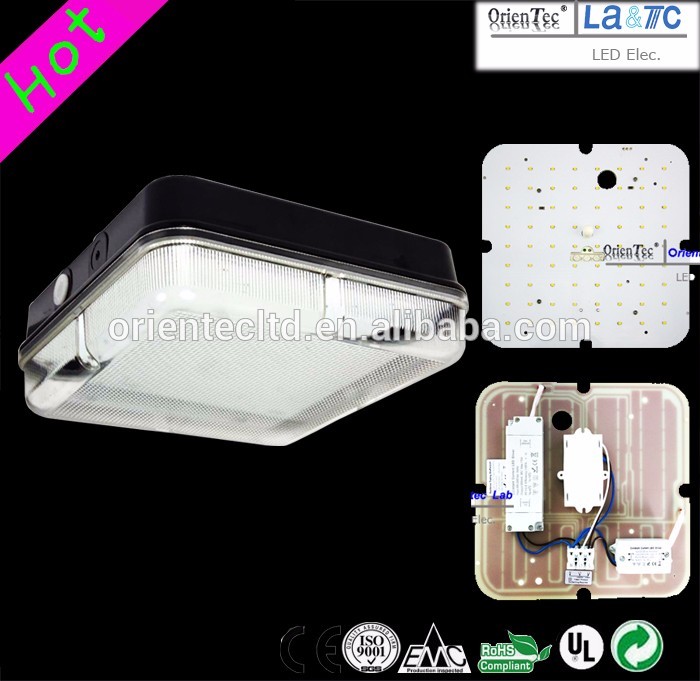

72 LED ip65 square bulkhead light with corridor function
Click on the image to view the original image
Product： views：472 LED ip65 square bulkhead light with corridor function
Branch： Orientec
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 17:49
  Negotiated
Product Details
Overview
Quick Details
Item Type:
Ceiling Lights
Light Source:
LED
Install Style:
Surface Mounted
Input Voltage(V):
100~240V
Lamp Luminous Flux(lm):
1650
CRI (Ra>):
80
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
100000
Lamp Body Material:
PC
IP Rating:
IP65
Certification:
BV, CCC, CE, GS, LVD, RoHS, UL
Place of Origin:
Zhejiang, China
Brand Name:
Orientec
Model Number:
OT-HSB-72MV
Color:
White or other
Corridor funciton:
Yes, 10% ip65 square bulkhead light with corridor function
Movement sensor:
RCR sensor
Corridor function inhibit:
available
Material:
100% PC ip65 square bulkhead light with corridor function
Usage:
Indoor lighting, for kitchen and so on
Old type:
florescent28W Square bulkhead
Hot place:
EU and UK
ECO-Friendly:
ECO- ip65 square bulkhead light with corridor function
CCT:
2800-6500K
Color Temperature(CCT):
Warm White
Lamp Power(W):
15
LED Light Source:
72*2835
Lamp Luminous Efficiency(lm/w):
110
Supply Ability
Supply Ability:
20000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
eachip65 square bulkhead light in a inner box , and then 12pcs in a out export carton
Port
NingboShanghai
Lead Time:
30days after order confirmed



Bureau Certi

Details of  Hot in UK  72 LED ip65 square bulkhead light with corridor function





Product Description



Machinary data
Item:OT-HSB-72MC
Size: 26*26*9.6cm
Material: 100% PC
Weight:850g
Anbinate temperature: 0~55°C
Guarantee:4 Years
IP/IK: IP65/ IK10





Electric DataRate Supply voltage174~264V 50/60HZ
Main Power15W
Typical λ(@230V 50HZ)>0.8
Leak Current (PE)0
Over Voltage protection320V(1H)
Max Permit forward voltage LED41V

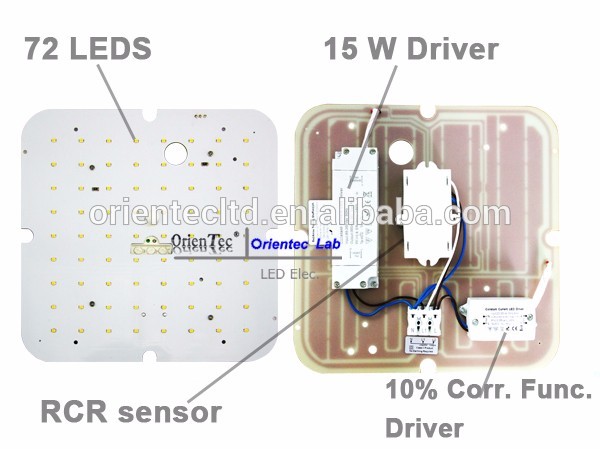

Sensor & Corridor function



Sensor typeinput side, RCR SENSOR
Sensor Power consumption0.2W
Distance setting3~12 meters
Lux Trigger setting0~3000lux
Delay time setting10s, 30s, 1min, 5min, 30min, 1hrs
Corridor function180 lm if lux<50
Corridor function inhibitif lux >300



Optical Data



efficacious LED chipEpistar 72 pcs 2835#
Lumen1650 Max
CCT2600~6500 Optional
CRI82



Optional base color and the diffuser type of this ip65 square bulkhead light with corridor function





Optional Function
Optional FunctionCorridor Function inhibit in daytimeYes
NI-MH battery pack backupAvailable, see item OT-HSB-72EMC
Multi CCT2600/4000/6000K integrated in one
DimmableThe Dimmable driver availavle
Cree Chip Available



Packaging & Shipping

PACKING INFORMATION of this ip65 square bulkhead light with corridor function



Packing: color box with polyfoam
Inner packing: 1pcs/inner box
Outer packing:12pcS/CTN
Carton Size: 28x54x60cm
G.W.: 11KGS
N.W.:9KGS





Our Services

1. Projects & Technology Creating

2. Professional Technology support of ip65 square bulkhead light with corridor function

3. OEM & Stratage service



Company Information

General instruction of OTC Electronic:

1. Ningbo OTC Electronic Co. is Branch of OTC IND.  This branch just specialize LED lighting.  It contains:

    A.  Low voltage version,  EMC and RoHS compliant.  For supermarket.

    B.  220V/110V industerial lighting.  EMC/ LVD/ RoHS compliant.  We work with famous

    C.  Emergency light for project only.  IEC60598-2-22:2014 full compliant. This used for bid government project.

    D.  OTC Own the patent of some item in this website.



2. Orientec Elec. with separate R & D depart.  We apprecite you ideas about impove our current items.

     A.  The engin team in OTC proficent  ProE, UG, Auto CAD and Protel.

     B.   The Marketing team will show you the trend in LED field.

     C.   You can sent inquiry as followed chart.



FAQ

 1. Q: What is the quality standard?

   ALL rhe emergency light in From OTC is full IEC compliant. Please don"t try to persuade OTC use Li-ion battery as battery system.

   PS:  The engineer can remove your doubt based on IEC/ CE documents  clause by clause.



2. Q:  Does the R&D depart show solutons free of charge?



  A:  If just some doubt. Solutions are not needed. Free of charge.

           eg.  Why the sensor of my light run out so quickly,  How yours can confirm 4 years guarantee?

                   Why the battery of our emergency light die just 50 cycles.



   B:  If you need new solutions.



          Part 1;  Draft solution sheet is free.

                  a.   The construction solution sheet just with some Auto CAD 2D drawing.

                  b.   The PCB solution just with general description.



          Part 2;  Formal solution sheet cost need confirm with sales manager.

                  a.   The construction solution sheet together with 3D drawigns.

                  b.   The PCB in protel and show you the sample to prove the function



   C:  If solution confirmed.  and order placed. The solution cost will be refund.





3. Q: MOQ, main market

  A:  The MOQ is 200pcs

  B,  The main market of OTC is Western Europe(especially UK and DE) and  US, AR, and AU.
