Home > Products > OT-HPB-72 CE Compliant polo 4000k 15W LED Bulkhead light
OT-HPB-72 CE Compliant polo 4000k 15W LED Bulkhead light
Click on the image to view the original image
Product： views：2OT-HPB-72 CE Compliant polo 4000k 15W LED Bulkhead light
Branch： Orientec
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 17:49
  Negotiated
Product Details
Overview
Quick Details
Item Type:
Ceiling Lights
Light Source:
LED
Install Style:
Surface Mounted
Input Voltage(V):
100~240V
Lamp Luminous Flux(lm):
1650
CRI (Ra>):
80
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
100000
Lamp Body Material:
PC
IP Rating:
IP65
Certification:
BV, CCC, CE, GS, LVD, RoHS, UL
Place of Origin:
Zhejiang, China
Brand Name:
Orientec
Model Number:
OT-HPB-72

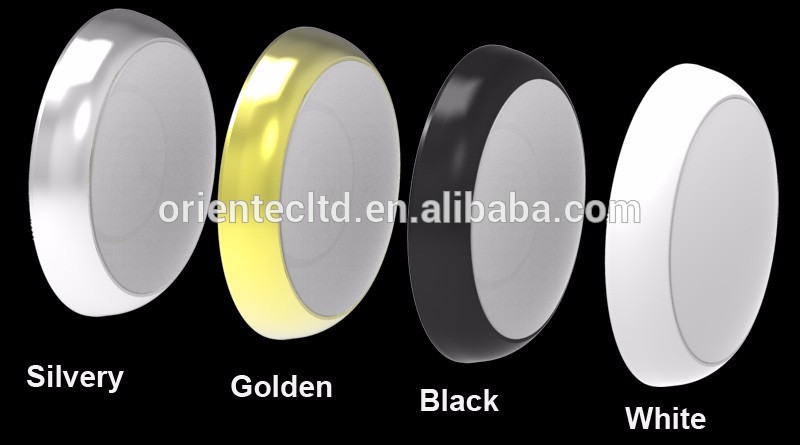

Color:
White or silver gold plated
Battery type Optional:
9.6V 1.0Ah
Movement sensor:
Optional
Corridor function:
Available 10%
Material:
100% PC 4000k15WLED Bulkhead light
Usage:
Outdoor
Old type:
florescent 28W bulkheadlight
Hot place:
EU and UK
ECO-Friendly:
ECO-4000k15WLED Bulkhead light
emergency time:
>3 hours
Color Temperature(CCT):
Warm White
LED Light Source:
72*2835
Lamp Power(W):
15
Lamp Luminous Efficiency(lm/w):
110
Supply Ability
Supply Ability:
80000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
each4000k15WLED Bulkhead light in an inner box , and then 6 pcs in a out export carton
Port
NingboShanghai
Lead Time:
30days after order confirmed
Video Description



Details of 4000k  15W  LED Bulkhead light





Product Description



Machinary data
Item:OT-HPB-72
Size: See Left
Material: 100% Polycarbonate
Weight:800g
Anbinate temperature: 0~55°C
Guarantee: 5 Years
IP/IK: IP65 / IK10



Electric DataRate Supply voltage174~264V 50/60HZ
Main Power15W
Typical λ(@230V 50HZ)>0.8
Leak Current (PE)0
Over Voltage protection320V(1H)
Max Permit forward voltage LED41V



Optical Data



efficacious LED chipEpistar 72 pcs 2835#
Lumen1550 Max
CCT2600~6500 Optional
CRI82





Optional Function
Optional FunctionEmergency functionSee item OT-HPB-72EMC
emergency battery pack backupSee item OT-HPB-72E
Multi CCT2600/4000/6000K integrated in one
DimmableThe Dimmable driver availavle
Cree Chip





General Technical support:







Drawing of constructionCan be shown if you need itconfidential
Drawing for PCBCan be shown if you place the orderTop Secret
Drawing for Elec. valueCan be shown if you need it

Knack for battery maintance

Can be shown if you need
Test report of batteryCan be shown if you needConfidential
Optical test for emergency lampCan be shown if you need itConfidential
Maintain support On line 7*24hoursBy email
Key selling featureAvailable













Packing information:





PACKING INFORMATION of this 4000k  15W  LED Bulkhead light





Packing: color gift box with polyfoam
Inner packing: 1pcs/inner box
Outer packing: 6PCS/CTN
Carton Size: 65x33x48cm
G.W.: 12KGS
N.W.: 10KGS



Company Information

General instruction of OTC Electronic:

1. Ningbo OTC Electronic Co. is Branch of OTC IND.  This branch just specialize LED lighting.  It contains:

    A.  Low voltage version,  EMC and RoHS compliant.  For supermarket.

    B.  220V/110V industerial lighting.  EMC/ LVD/ RoHS compliant.  We work with famous

    C.  Emergency light for project only.  IEC60598-2-22:2014 full compliant. This used for bid government project.

    D.  OTC Own the patent of some item in this website.



2. Orientec Elec. with separate R & D depart.  We apprecite you ideas about impove our current items.

     A.  The engin team in OTC proficent  ProE, UG, Auto CAD and Protel.

     B.   The Marketing team will show you the trend in LED field.

     C.   You can sent inquiry as followed chart.



FAQ

 1. Q: What is the quality standard?

   ALL rhe emergency light in From OTC is full IEC compliant. Please don"t try to persuade OTC use Li-ion battery as battery system.

   PS:  The engineer can remove your doubt based on IEC/ CE documents  clause by clause.



2. Q:  Does the R&D depart show solutons free of charge?



  A:  If just some doubt. Solutions are not needed. Free of charge.

           eg.  Why the sensor of my light run out so quickly,  How yours can confirm 4 years guarantee?

                   Why the battery of our emergency light die just 50 cycles.



   B:  If you need new solutions.



          Part 1;  Draft solution sheet is free.

                  a.   The construction solution sheet just with some Auto CAD 2D drawing.

                  b.   The PCB solution just with general description.



          Part 2;  Formal solution sheet cost need confirm with sales manager.

                  a.   The construction solution sheet together with 3D drawigns.

                  b.   The PCB in protel and show you the sample to prove the function



   C:  If solution confirmed.  and order placed. The solution cost will be refund.





3. Q: MOQ, main market

  A:  The MOQ is 200pcs

  B,  The main market of OTC is Western Europe(especially UK and DE) and  US, AR, and AU.
