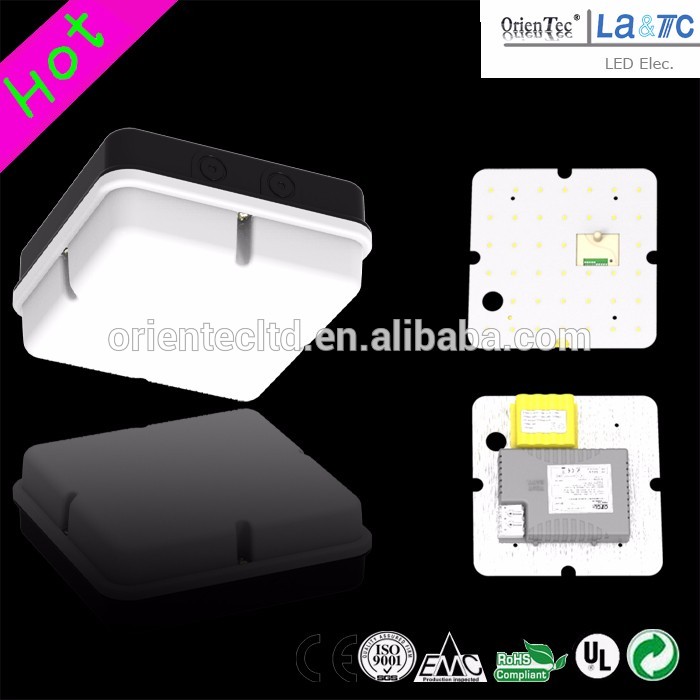

Details of OT-HSB-40EMC 40 LED IP65 led Square emergency sensor bulkhead light with corridor function
| Machinary data |
| Item:OT-HSB-40EMC | |
| Size: 20*20*9cm | |
| Material: 100% polycarbonate | |
| Weight:900g | |
| Anbinate temperature: 0~55°C | |
| Guarantee: 4 Years | |
| IP/IK: IP65 / IK10 |
| Electric Data | Rate Supply voltage | 174~264V 50/60HZ |
| Main Power | 8W | |
| Typical λ(@230V 50HZ) | >0.8 | |
| Leak Current (PE) | 0 | |
| Over Voltage protection | 320V(1H) | |
| Max Permit forward voltage LED | 41V |
Electric Date Emergency | Battery pack type | 8 pcs NI-CD pack 9.6V 1Ah |
| Emergency mold | Combined non-maintained | |
| Max forwawrd Emergency LED | 7.4V | |
| The Power consuption if only emergency | 2.5W | |
| Typical λ if only emergency circuit | 0.65 | |
| Charing current | 50mA / 24 hrs | |
| Discharging | 30mA / 3hrs | |
| Changeover | <0.1S @150V AC | |
| Battery protection | Max:11.4V / Min7.2V | |
| Indicate light | Green F5 LED bulb | |
| Test Button / rest mold / inhibit mold | Y / Y / Y | |
| Emergency standard(full compliant) | IEC60598-2-22:2014 BS5266:2016 |
Sensor & Corridor function
| Sensor type | output side, RCR SENSOR |
| Sensor Power consumption | 0.2W | |
| Distance setting | 3~12 meters | |
| Lux Trigger setting | 0~3000lux | |
| Delay time setting | 10s, 30s, 1min, 5min, 30min, 1hrs | |
| Corridor function | 180 lm if lux<50 | |
| Corridor function inhibit | if lux >300 |
Optical Data
| efficacious LED chip | Epistar 40 pcs 2835# |
| Lumen | 850 Max | |
| Lumen @emergency mold | 150 | |
| CCT | 2600~6500 Optional | |
| CRI | 82 |
| Optional Function | ||
| NI-MH battery pack backup | 9.6V 1.5Ah, Ni-MH pack | |
| Multi CCT | 2600/4000/6000K integrated in one | |
| Dimmable | The Dimmable driver availavle | |
| Cree Chip | Available |
PACKING INFORMATION of this Square emergency sensor bulkhead light
| Packing: | color box with polyfoam |
| Inner packing: | 1pcs/inner box |
| Outer packing: | 20pcS/CTN |
| Carton Size: | 42x42x45cm |
| G.W.: | 19KGS |
| N.W.: | 17KGS |
