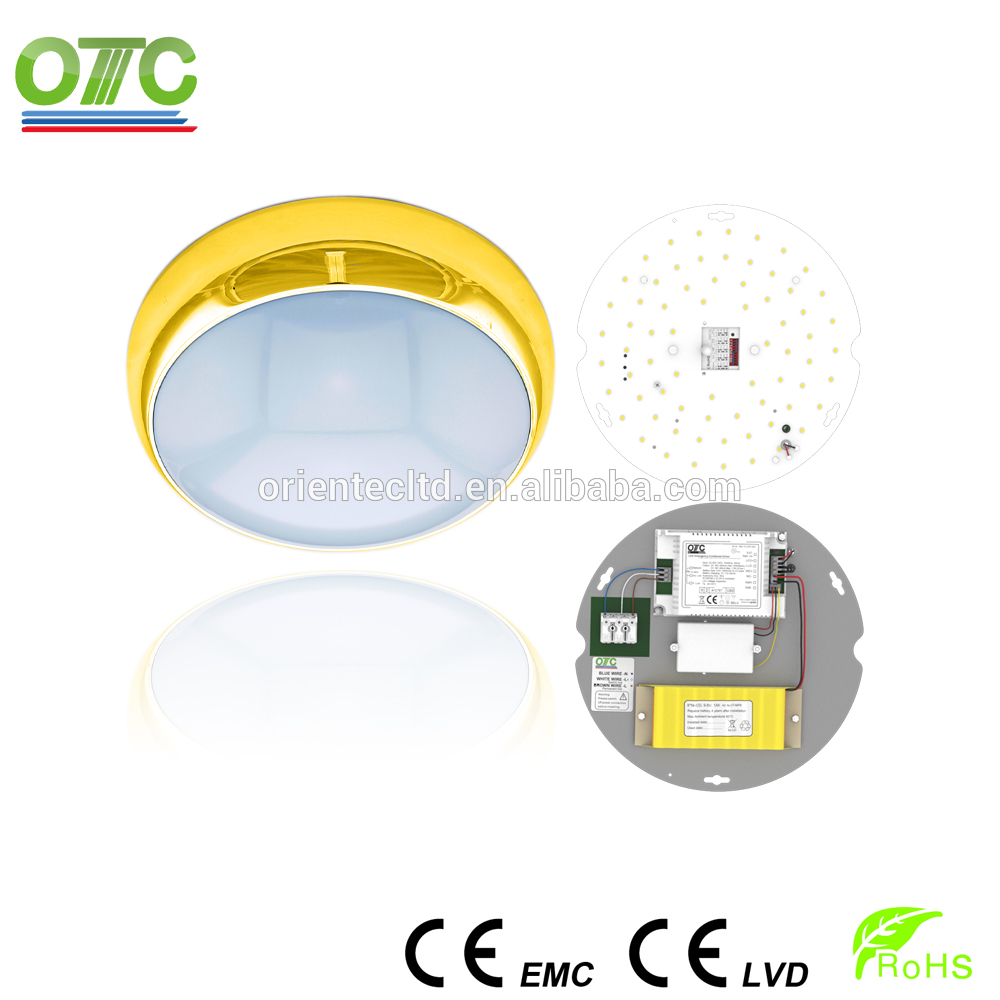

Details of Movement sensor Ni-Cd battery emergency kit led bulkhead light fitting
Advantages:
advantage of this led bulkhead light
1. SMD led Chip as light source, Energey saving led bulkhead light
|
2. 100% PC as cover, anti-vandal and high quality
|
3. Ni-CD battery embedded, you never afraid the power outage
|
4. Adjustable movement sensor, keep your light work more efficecy.
|
5. No Noise, Murcery free and super bright.
|
6. Professional technical support team , make sure solve your doubt quickly.
|
Basic Parameters:
Basic parameters of this led bulkhead light
| Size | 320(D) *100(H) mm |
| Weight | 1250g (include the battery) |
| LED Chips | 72 pcs Epistar 2835 AS normal light source |
| 4 pcs Epistar 5630 AS emergency light source | |
| Material | 100% PC |
| IP rate | IP65 |
| Patent design | Drop proof PCB Panel |
| Brightmess | 1650LM if normal work mold |
| 200LM in emergency work mold |
Optional functions :
OPTIONAL FUNCTIONS of this led bulkhead light
Emergency Function | 9.6V 1000mah Battery led bulkhead light |
| >3 hours emergency work time | |
| 200LM in emergency mold | |
Movement sensor | Adjustable movement sensor |
| 10~60S | |
| Workable if the surrounder circusatnce | |
Other Optional | Cree Chip embedded |
| Li-ion battery embeded | |
| Special color temperature | |
| Color | Black Silver White golden |
Colorful design of this led bulklhead light
Relalte led bulkhead light
General Technical support:
TECHNICAL SUPPORT of this ip65 led bulkhead light
Drawing of this led bulkhead light
PACKING INFORMATION of this led bulkhead light
| Packing: | color gift box with polyfoam |
| Inner packing: | 1pcs/inner box |
| Outer packing: | 8PCS/CTN |
| Carton Size: | 65x33x48cm |
| G.W.: | 14KGS |
| N.W.: | 12KGS |
General instruction of Orientec Electronic:
1. Ningbo Orientec Electronic Co. is Branch of OTC IND. This branch just specialize LED lighting. It contains:
A. Low voltage version, EMC and RoHS compliant. For supermarket.
B. 220V/110V industerial lighting. EMC/ LVD/ RoHS compliant. We work with famous
C. Emergency light for project only. IEC60598-2-22 full compliant. This used for bid government project.
D. OTC Own the patent of some item in this website.
2. Orientec Elec. with separate R & D depart. We apprecite you ideas about impove our current items.
A. The engin team in OTC proficent ProE, UG, Auto CAD and Protel.
B. The Marketing team will show you the trend in LED field.
C. You can sent inquiry as followed chart.
1. Q: What is the quality standard?
The products here all CE and IEC complaint.
PS: The engineer can remove your doubt based on IEC/ CE documents clause by clause.
2. Q: Does the R&D depart show solutons free of charge?
A: If just some doubt, Solutions are not needed. Free of charge.
eg. Why the sensor of my light run out so quickly, How yours can confirm 2 years guarantee?
Why the battery of our emergency light die just 50 cycles.
B: If you need new solutions.
Part 1; Draft solution sheet is free.
a. The construction solution sheet just with some Auto CAD 2D drawing.
b. The PCB solution just with general description.
Part 2; Formal solution sheet cost need confirm with sales manager.
a. The construction solution sheet together with 3D drawigns.
b. The PCB in protel and show you the sample to prove the function
C: If solution confirmed. and order placed. The solution charge will be refund.
3. Q: MOQ, main market
A: The MOQ is 1000pcs
B, The main market of OTC is Western Europe(especially UK and DE) and US, AR, and AU.
