| Basic Machinary data | Material | PolyCarbon 100% |

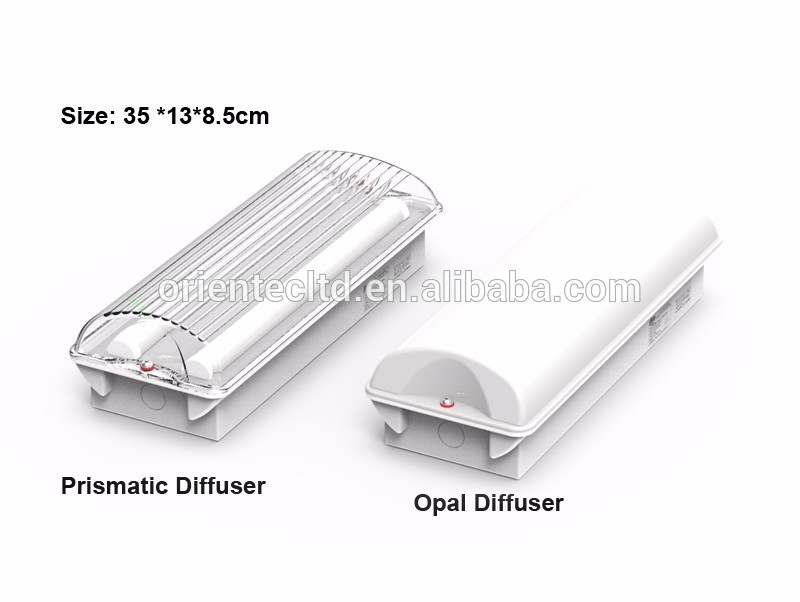

| Dimension | 35 *13 *8.5 | |
| Weight | 1000g | |
| Ambinate Temperature(°C Ta) | 0~55 | |
| Max Casing Temperature(°C Tc) | 65 | |
| Guarantee | 4 years | |
| Glare Issue | No | |
| IP/IK | IP65/ IK10 |
| Electric Data | Rate Supply voltage | 174~264V 50/60HZ |
| Main Power | 2.5W | |
| Typical λ(@230V 50HZ) | >0.65 | |
| Leak Current (PE) | 0 | |
| Over Voltage protection | 320V(1H) | |
| Max Permit forward voltage LED | 3.8V |
Electric Date Emergency | Battery pack type | 6 pcs NI-CD pack 7.2V 1Ah |
| Max forwawrd Emergency LED | 3.7V | |
| The Power consuption if only emergency | 1.5W | |
| Charing current | 50mA / 24 hrs | |
| Discharging | 30mA / 3hrs | |
| Battery protection | Max:8.6V / Min5.4V | |
| Indicate light | Green F5 LED bulb |
Optical Data
| efficacious LED chip | Epistar 30 pcs 2835# |
| Emergency mold | non- maintained | |
| Lumen @emergency mold | 120 | |
| CCT | 2600~6500 Optional | |
| CRI | 82 |
| Optional Function | Auto inhibit in day time | Available |
| NI-MH battery pack backup | 7.2V 1.5Ah, Ni-MH pack | |
| Multi CCT | 2600/4000/6000K integrated in one | |
| Dimmable | The Dimmable driver availavle | |
| non-maintained/ maintained convert | available |
PACKING INFORMATION of this SMD led emergency lamp
| Packing: | color box with polyfoam |
| Inner packing: | 1pcs/inner box |
| Outer packing: | 12pcS/CTN |
| Carton Size: | 37x54x27cm |
| G.W.: | 14KGS |
| N.W.: | 12KGS |
1. Projects & Technology Creating
2. Professional Technology support
3. OEM & Stratage service
General instruction of OTC Electronic:
1. Ningbo OTC Electronic Co. is Branch of OTC IND. This branch just specialize LED lighting. It contains:
A. Low voltage version, EMC and RoHS compliant. For supermarket.
B. 220V/110V industerial lighting. EMC/ LVD/ RoHS compliant. We work with famous
C. Emergency light for project only. IEC60598-2-22:2014 full compliant. This used for bid government project.
D. OTC Own the patent of some item in this website.
2. Orientec Elec. with separate R & D depart. We apprecite you ideas about impove our current items.
A. The engin team in OTC proficent ProE, UG, Auto CAD and Protel.
B. The Marketing team will show you the trend in LED field.
C. You can sent inquiry as followed chart.
1. Q: What is the quality standard?
ALL rhe emergency light in From OTC is full IEC compliant. Please don"t try to persuade OTC use Li-ion battery as battery system.
PS: The engineer can remove your doubt based on IEC/ CE documents clause by clause.
2. Q: Does the R&D depart show solutons free of charge?
A: If just some doubt. Solutions are not needed. Free of charge.
eg. Why the sensor of my light run out so quickly, How yours can confirm 4 years guarantee?
Why the battery of our emergency light die just 50 cycles.
B: If you need new solutions.
Part 1; Draft solution sheet is free.
a. The construction solution sheet just with some Auto CAD 2D drawing.
b. The PCB solution just with general description.
Part 2; Formal solution sheet cost need confirm with sales manager.
a. The construction solution sheet together with 3D drawigns.
b. The PCB in protel and show you the sample to prove the function
C: If solution confirmed. and order placed. The solution cost will be refund.
3. Q: MOQ, main market
A: The MOQ is 200pcs
B, The main market of OTC is Western Europe(especially UK and DE) and US, AR, and AU.
