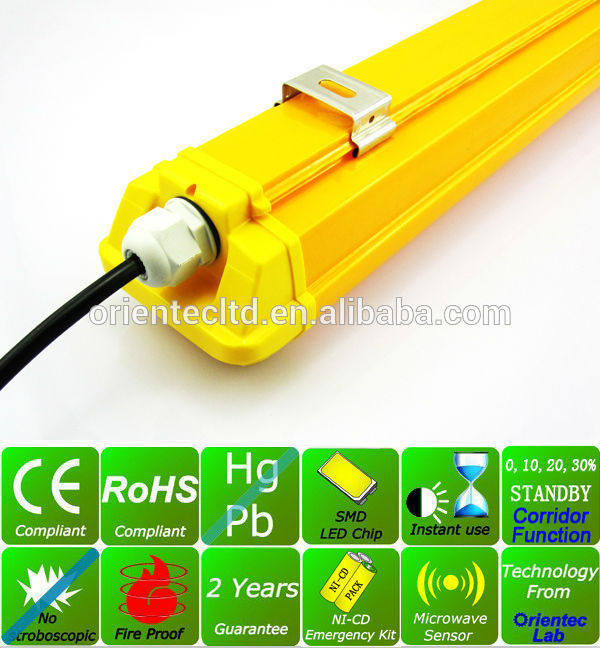

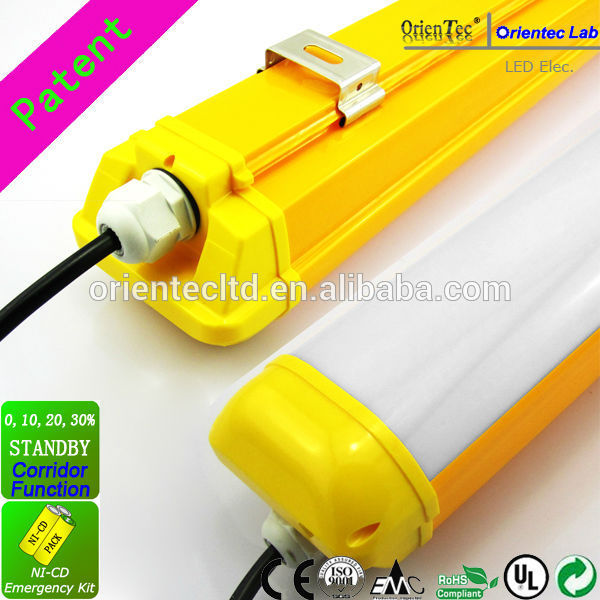

Details of 2014 Extrusion patent DIY Epistar SMD 5630 IP65 LED tri-proof light with corridor function
Patent design:
| 1. The tube with Extrusion technology. Special diffuser perfect match LED Stripe light source |
| 2. The Extrusion tube minium the joint, This make the lamp IP66 compliant. |
| 3. The side was fixed by screws, not normal clips. |
| 4. The item with patent Corridor function, 10%, 20% 30% and 0% all available, but more reliable and competetive. |
| 5. open cover one side, More convenient. |
Basic Parameters:
| Color | White / Black Etc. | Depends on your idea |
| Size | L1560*W81*H67 | Art No. OT-HTP-EX |
| Weight | 3500g | |
| Bulb | SMD Epistar 5630# chips | SMD Samsung 2538is also available |
| material | PolyCarbon 100% | All fire proof |
| Work mould | ceiling or wall mounting | All available |
Part 2 : Technical parameters
Relate tri-Proof lamps:
General Technical support:
| Drawing of construction | Can be shown if you need it | confidential |
| Drawing for PCB | Can be shown if you place the order | Top Secret |
| Drawing for Elec. value | Can be shown if you need it | |
| Optical test for emergency lamp | Can be shown if you need it | Confidential |
| Maintain support | On line 7*24hours | By email |
| Key selling feature | Available |
Easy install design:
PACKING INFORMATION of this ip65 LED tri-proof light :
| Packing: | color gift box with polyfoam |
| Inner packing: | 1pcs/inner box |
| Outer packing: | 6PCS/CTN |
| Carton Size: | 160x37x22cm |
| G.W.: | 20KGS |
| N.W.: | 18KGS |
The certification about the ip65 LED tri-proof light
General instruction of Orientec Electronic:
1. Ningbo Orientec Electronic Co. is Branch of OTC IND. This branch just specialize LED lighting. It contains:
A. Low voltage version, EMC and RoHS compliant. For supermarket.
B. 220V/110V industerial lighting. EMC/ LVD/ RoHS compliant. We work with famous
C. Emergency light for project only. IEC60598-2-22 full compliant. This used for bid government project.
D. OTC Own the patent of some item in this website.
2. Orientec Elec. with separate R & D depart. We apprecite you ideas about impove our current items.
A. The engin team in OTC proficent ProE, UG, Auto CAD and Protel.
B. The Marketing team will show you the trend in LED field.
C. You can sent inquiry as followed chart.
1. Q: What is the quality standard?
The products here all CE and IEC complaint.
PS: The engineer can remove your doubt based on IEC/ CE documents clause by clause.
2. Q: Does the R&D depart show solutons free of charge?
A: If just some doubt, Solutions are not needed. Free of charge.
eg. Why the sensor of my light run out so quickly, How yours can confirm 2 years guarantee?
Why the battery of our emergency light die just 50 cycles.
B: If you need new solutions.
Part 1; Draft solution sheet is free.
a. The construction solution sheet just with some Auto CAD 2D drawing.
b. The PCB solution just with general description.
Part 2; Formal solution sheet cost need confirm with sales manager.
a. The construction solution sheet together with 3D drawigns.
b. The PCB in protel and show you the sample to prove the function
C: If solution confirmed. and order placed. The solution charge will be refund.
3. Q: MOQ, main market
A: The MOQ is 1000pcs
B, The main market of OTC is Western Europe(especially UK and DE) and US, AR, and AU.
