Home > Products > Movement sensor Ni-Cd battery emergency kit led bulkhead light fitting

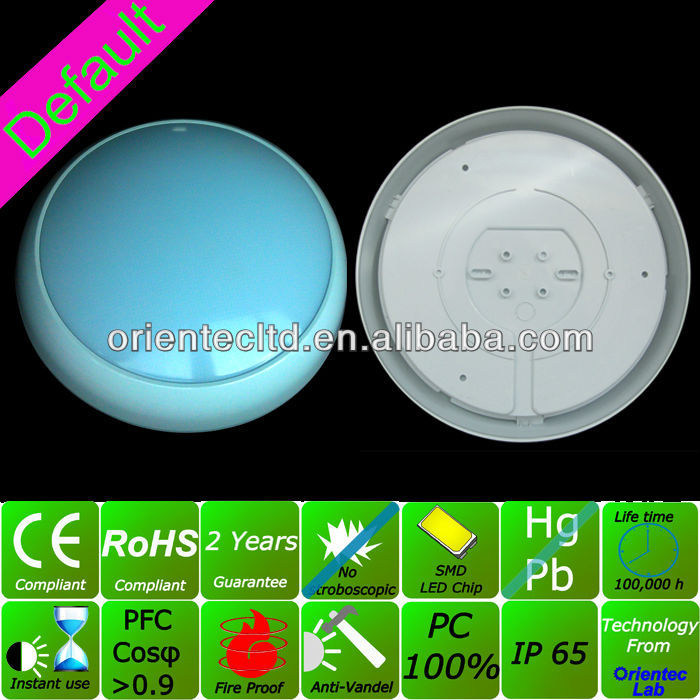

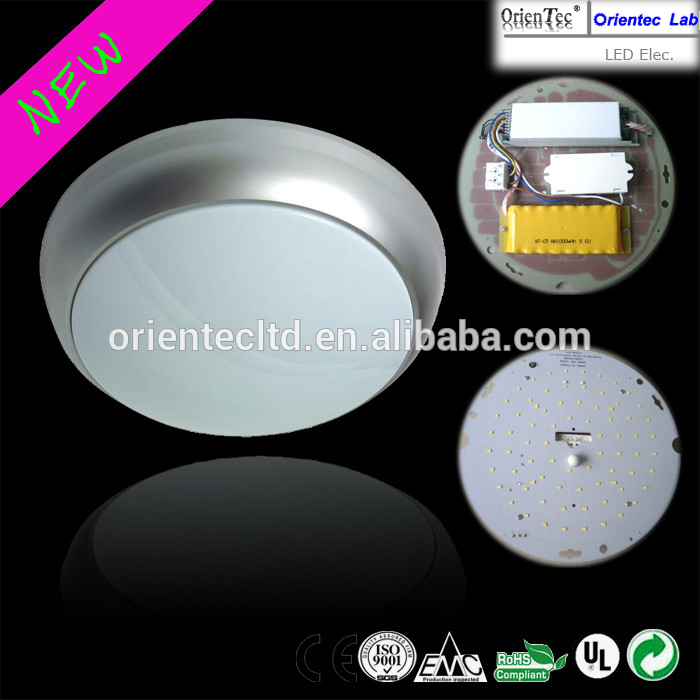

Movement sensor Ni-Cd battery emergency kit led bulkhead light fitting
Click on the image to view the original image
Product: views:2Movement sensor Ni-Cd battery emergency kit led bulkhead light fitting
Branch: Orientec
Unit Price: Negotiated
Min.Order:
Supply:
Delivery: Shipment within days since the date of payment
Valid until: Long Term
Updated on: 2019-10-16 17:49
  Negotiated
Product Details
Overview
Quick Details
Item Type:
Ceiling Lights
Light Source:
LED
Install Style:
Surface Mounted
Input Voltage(V):
100~240V
Lamp Luminous Flux(lm):
1650
CRI (Ra>):
80
Working Temperature(℃):
-20 - 50
Working Lifetime(Hour):
100000
Lamp Body Material:
PC
IP Rating:
IP65
Certification:
BV, CCC, CE, GS, LVD, RoHS, UL
Place of Origin:
Zhejiang, China
Brand Name:
Orientec
Model Number:
OT-HPB-72MV-4EC
Color:
White or silver gold plated
Battery type:
9.6V 1Ah Ni-CD Battery led bulkhead light
Movement sensor:
Yes
Indicate light:
Green Led for charging indicate
Material:
100% PC emergency led bulkhead light
Usage:
Indoor lighting
Old type:
florescent 28W 2D led bulkhead light
Hot place:
EU and UK
ECO-Friendly:
ECO- emergency led bulkhead light
emergency time:
>3 hours
Color Temperature(CCT):
Warm White
Lamp Power(W):
15.1
LED Light Source:
72*2835 + 4*5630
Lamp Luminous Efficiency(lm/w):
110
Supply Ability
Supply Ability:
20000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
each led bulkhead light in a inner carton box , and then in out export carton
Port
NingboShanghai
Lead Time:
30days after order confirmed
Bureau Certi

Details of  Movement sensor  Ni-Cd battery emergency kit led bulkhead light fitting






Advantages:

advantage of this led bulkhead light



1. SMD led Chip as light source, Energey saving  led bulkhead light



2.  100% PC as cover,  anti-vandal and high quality



3.   Ni-CD battery embedded,  you never afraid the power outage



4.   Adjustable movement sensor, keep your light work more efficecy.



5.   No Noise, Murcery free and super bright.



6.  Professional technical support team , make sure solve your doubt quickly.







Basic Parameters:

Basic parameters of this  led bulkhead light



Size320(D) *100(H)  mm
Weight1250g (include the battery)
LED Chips72 pcs Epistar 2835 AS normal light source
4 pcs Epistar 5630 AS emergency light source
Material 100% PC
IP rate IP65
Patent design Drop proof PCB Panel
Brightmess1650LM if normal work mold
200LM in emergency work mold









Optional functions :

OPTIONAL FUNCTIONS of this    led bulkhead light



Emergency

Function

9.6V 1000mah Battery   led bulkhead light
>3 hours emergency work time
200LM in emergency mold

Movement

sensor


Adjustable movement sensor
 10~60S
 Workable if the surrounder circusatnce



  Other Optional



 Cree Chip embedded
 Li-ion battery embeded
 Special color temperature
ColorBlack  Silver  White golden









 Colorful design of this led bulklhead light



 Relalte   led bulkhead light





General Technical support:

  TECHNICAL SUPPORT of this  ip65 led bulkhead light







 Drawing of this led bulkhead light







PACKING INFORMATION of this  led bulkhead light





Packing: color gift box with polyfoam
Inner packing: 1pcs/inner box
Outer packing: 8PCS/CTN
Carton Size: 65x33x48cm
G.W.: 14KGS
N.W.: 12KGS











Company Information







General instruction of Orientec Electronic:





1. Ningbo Orientec Electronic Co. is Branch of OTC IND.  This branch just specialize LED lighting.  It contains:

    A.  Low voltage version,  EMC and RoHS compliant.  For supermarket.

    B.  220V/110V industerial lighting.  EMC/ LVD/ RoHS compliant.  We work with famous

    C.  Emergency light for project only.  IEC60598-2-22 full compliant. This used for bid government project.

    D.  OTC Own the patent of some item in this website.





2. Orientec Elec. with separate R & D depart.  We apprecite you ideas about impove our current items.

     A.  The engin team in OTC proficent  ProE, UG, Auto CAD and Protel.

     B.   The Marketing team will show you the trend in LED field.

     C.   You can sent inquiry as followed chart.







FAQ

 1. Q: What is the quality standard?

   The products here all CE and IEC complaint.

   PS:  The engineer can remove your doubt based on IEC/ CE documents  clause by clause.



2. Q:  Does the R&D depart show solutons free of charge?



  A:  If just some doubt, Solutions are not needed. Free of charge.

           eg.  Why the sensor of my light run out so quickly,  How yours can confirm 2 years guarantee?

                   Why the battery of our emergency light die just 50 cycles.



   B:  If you need new solutions.



          Part 1;  Draft solution sheet is free.

                  a.   The construction solution sheet just with some Auto CAD 2D drawing.

                  b.   The PCB solution just with general description.



          Part 2;  Formal solution sheet cost need confirm with sales manager.

                  a.   The construction solution sheet together with 3D drawigns.

                  b.   The PCB in protel and show you the sample to prove the function



   C:  If solution confirmed.  and order placed. The solution charge will be refund.







3. Q: MOQ, main market

  A:  The MOQ is 1000pcs

  B,  The main market of OTC is Western Europe(especially UK and DE) and  US, AR, and AU.
