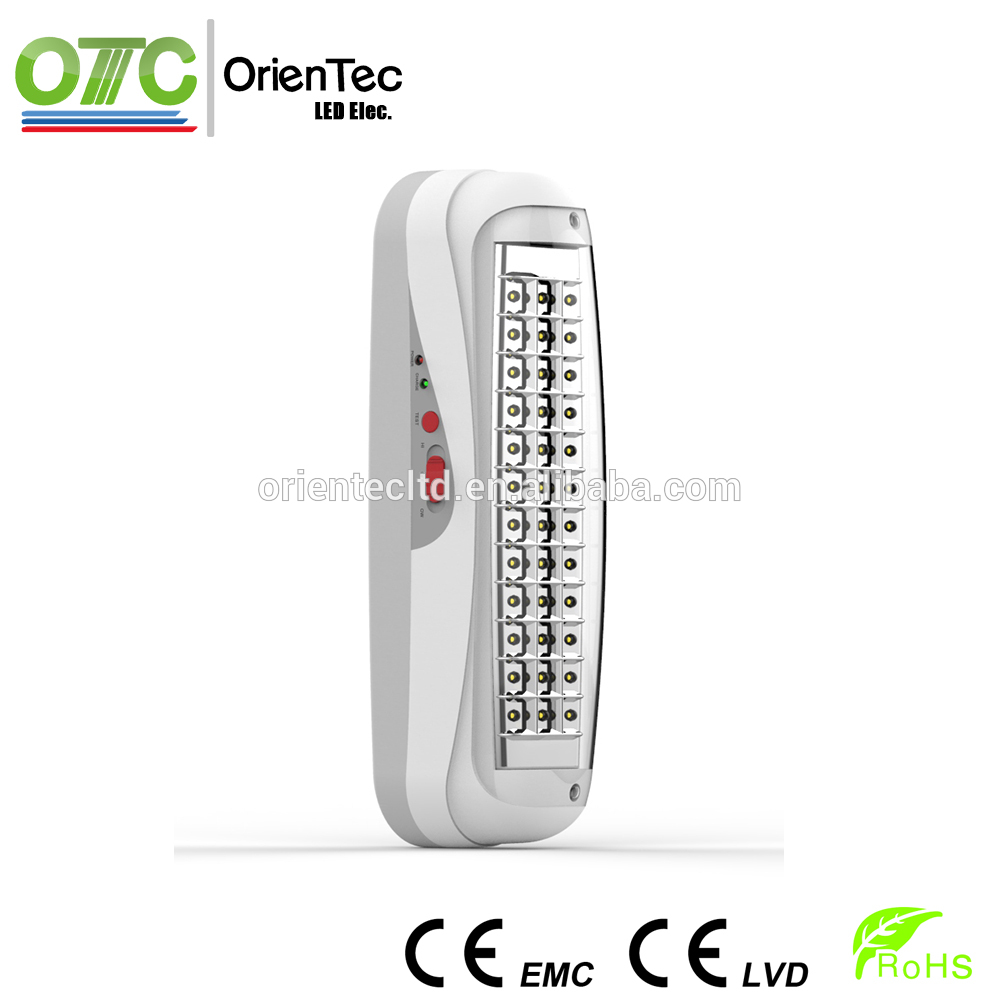

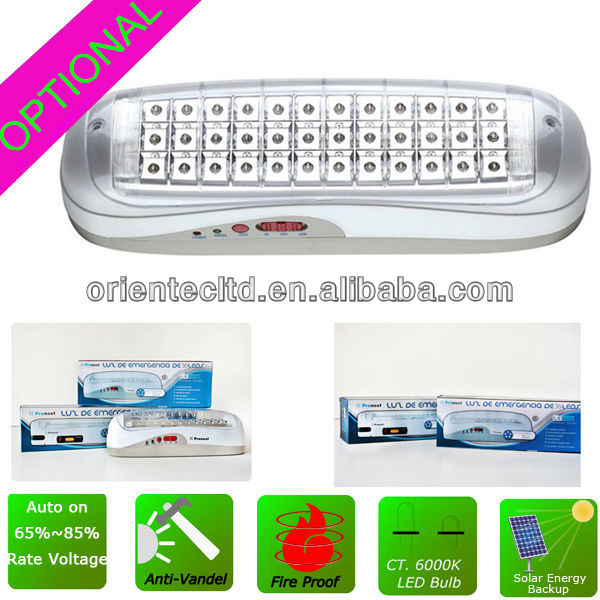

Details of 36 led rechargeable emergency light for home with test button
| Basic Machinary data | Material | ABS base + PS diffuser |
| Dimension | D320*H100 | |
| Weight | 1200g | |
| Ambinate Temperature(°C Ta) | 0~55 | |
| Max Casing Temperature(°C Tc) | 65 | |
| Guarantee | 4 years | |
| Glare Issue | No | |
| IP/IK | IP65/ IK10 |
| Machinary data |
| Item:OT-E836 | |
| Size: See Left | |
| Material: ABS + PS | |
| Weight:602g | |
| Anbinate temperature: 0~55°C | |
| Guarantee: 4Years | |
| IP/IK: IP20 / IK06 |
| Electric Data | Rate Supply voltage | 174~264V 50/60HZ |
| Main Power | 2.0W | |
| Typical λ(@230V 50HZ) | >0.5 | |
| Leak Current (PE) | 0 | |
| Over Voltage protection | 320V(1H) | |
| Max Permit forward voltage LED | 3.8V |
Electric Date Emergency | Battery pack type | 6V 4Ah Lead-acid battery |
| Emergency mold | non-maintained | |
| Max forwawrd Emergency LED | 3.8V | |
| Charing current | 200mA / 24 hrs | |
| Discharging | 400mA / 3hrs | |
| Changeover | <0.1S @150V AC | |
| Extension cable | H05VVF 2*0.5 0.6m | |
| Battery protection | Max:7.1V / Min5.4V | |
| Charging Indicate light | Green F5 LED bulb | |
| Discharge indicate light | Red F5 LED bulb | |
| Test Button / rest mold / inhibit mold | Y / N / Y | |
| Emergency standard(full compliant) | IEC60598-2-22:2014 BS5266:2016 |
Optical Data
| efficacious LED chip | Epistar 36 pcs 2835# |
| Lumen | 400 Max | |
| CCT | 2600~6500 Optional | |
| CRI | 82 |
Basic information of this rechargeable emergency light for home
| Drawing of construction | Can be shown if you need it | confidential |
| Drawing for PCB | Can be shown if you place the order | Top Secret |
| Drawing for Elec. value | Can be shown if you need it | |
Knack for battery maintance | Can be shown if you need | |
| Test report of battery | Can be shown if you need | Confidential |
| Optical test for emergency lamp | Can be shown if you need it | Confidential |
| Maintain support | On line 7*24hours | By email |
| Key selling feature | Available |
PACKING INFORMATION of this rechargeable emergency light for home
| Packing: | color gift box with polyfoam |
| Inner packing: | 1pcs/inner box |
| Outer packing: | 6pcS/CTN |
| Carton Size: | 69*32*23 cm |
| G.W.: | 12KGS |
| N.W.: | 10KGS |
General instruction of Orientec Electronic:
1. Ningbo Orientec Electronic Co. is Branch of OTC IND. This branch just specialize LED lighting. It contains:
A. Low voltage version, EMC and RoHS compliant. For supermarket.
B. 220V/110V industerial lighting. EMC/ LVD/ RoHS compliant. We work with famous
C. Emergency light for project only. IEC60598-2-22 full compliant. This used for bid government project.
D. OTC Own the patent of some item in this website.
2. Orientec Elec. with separate R & D depart. We apprecite you ideas about impove our current items.
A. The engin team in OTC proficent ProE, UG, Auto CAD and Protel.
B. The Marketing team will show you the trend in LED field.
C. You can sent inquiry as followed chart.
1. Q: What is the quality standard?
The products here all CE and IEC complaint.
PS: The engineer can remove your doubt based on IEC/ CE documents clause by clause.
2. Q: Does the R&D depart show solutons free of charge?
A: If just some doubt, Solutions are not needed. Free of charge.
eg. Why the sensor of my light run out so quickly, How yours can confirm 2 years guarantee?
Why the battery of our emergency light die just 50 cycles.
B: If you need new solutions.
Part 1; Draft solution sheet is free.
a. The construction solution sheet just with some Auto CAD 2D drawing.
b. The PCB solution just with general description.
Part 2; Formal solution sheet cost need confirm with sales manager.
a. The construction solution sheet together with 3D drawigns.
b. The PCB in protel and show you the sample to prove the function
C: If solution confirmed. and order placed. The solution charge will be refund.
3. Q: MOQ, main market
A: The MOQ is 1000pcs
B, The main market of OTC is Western Europe(especially UK and DE) and US, AR, and AU.
