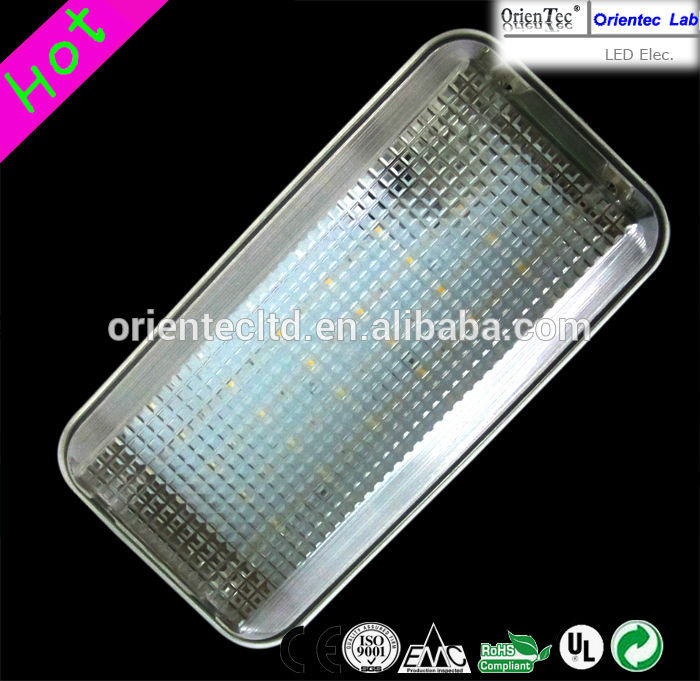

Details of Hot in UK 80 LED ip65 rectangular bulkhead light
Advantages:
1. SMD 3528 led Chip as light source, Energey saving emergency ceiling light
|
2. 100% PC as cover, anti-vandal and high quality. Make your bulkhead very safe
|
3. Ni-CD battery embedded, you never afraid the power outage (Optinonal) Movement sensor included, Very useful in gallery. (Optional) Series install. This can save a lot (technical Drawing is available)
|
4. Adjustable movement sensor, keep your light work more efficecy, and more convinent.
|
5. No Noise, Murcery free and super bright. RoHS complaint
|
6. Professional technical support team , make sure solve your doubt quickly.
|
Basic Parameters:
| Color | White / Black Etc. | Depends on your idea |
| Size | 240(L)* 120(W)*224 mm | |
| Weight | 500g | The battery is 350g at least |
| LED Bulbs | 80* 0.2W 3528#chips | 0.06W 7LM each, as normal light source |
| material | Fire proof PC | All fire proof and Anti-vandal |
Micro weave Sensor | Available if you need | Auto on if any on approched |
| Work mould | ceiling mount | All available |
| IP Rate | Ip65 | Water proof, dusty proof, anti-vandal |

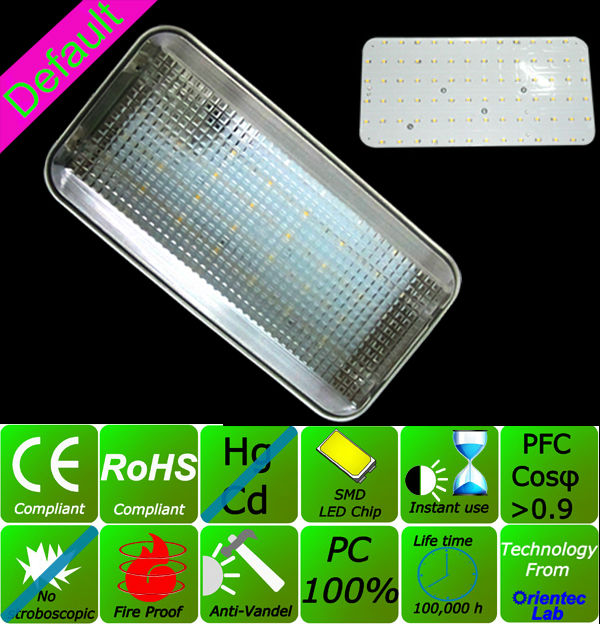

Default function of this ip65 rectangular bulkhead light
The PCB of this ip65 rectangular bulkhead light
Main profile of this ip65 rectangular bulkhead light
Optional functions :
Emergency Function | 9.6V 1000mah Battery ip65 rectangular bulkhead light |
| >3 hours emergency work time | |
| 200LM in emergency mold | |
Movement sensor | Adjustable movement sensor |
| 10~60S | |
| Workable if the surrounder circusatnce | |
Other Optional | Cree Chip embedded |
| Li-ion battery embeded | |
| Special color temperature | |
| Color | Black Silver White golden |
Optional function of this ip65 rectangular bulkhead light
Other relate items:
Other realate ip65 rectangular bulkhead light
General Technical support:
| Drawing of construction | Can be shown if you need it | confidential |
| Drawing for PCB | Can be shown if you place the order | Top Secret |
| Drawing for Elec. value | Can be shown if you need it | |
Knack for battery maintance | Can be shown if you need | |
| Test report of battery | Can be shown if you need | Confidential |
| Optical test for emergency lamp | Can be shown if you need it | Confidential |
| Maintain support | On line 7*24hours | By email |
| Key selling feature | Available |
Technical support of this ip65 rectangular bulkhead light
Packing information:
PACKING INFORMATION of this emergency led ceiling light:
| Packing: | color gift box with polyfoam |
| Inner packing: | 1pcs/inner box |
| Outer packing: | 24PCS/CTN |
| Carton Size: | 60x51x48cm |
| G.W.: | 16KGS |
| N.W.: | 14KGS |
General instruction of Orientec Electronic:
1. Ningbo Orientec Electronic Co. is Branch of OTC IND. This branch just specialize LED lighting. It contains:
A. Low voltage version, EMC and RoHS compliant. For supermarket.
B. 220V/110V industerial lighting. EMC/ LVD/ RoHS compliant. We work with famous
C. Emergency light for project only. IEC60598-2-22 full compliant. This used for bid government project.
D. OTC Own the patent of some item in this website.
2. Orientec Elec. with separate R & D depart. We apprecite you ideas about impove our current items.
A. The engin team in OTC proficent ProE, UG, Auto CAD and Protel.
B. The Marketing team will show you the trend in LED field.
C. You can sent inquiry as followed chart.
1. Q: What is the quality standard?
The products here all CE and IEC complaint.
PS: The engineer can remove your doubt based on IEC/ CE documents clause by clause.
2. Q: Does the R&D depart show solutons free of charge?
A: If just some doubt, Solutions are not needed. Free of charge.
eg. Why the sensor of my light run out so quickly, How yours can confirm 2 years guarantee?
Why the battery of our emergency light die just 50 cycles.
B: If you need new solutions.
Part 1; Draft solution sheet is free.
a. The construction solution sheet just with some Auto CAD 2D drawing.
b. The PCB solution just with general description.
Part 2; Formal solution sheet cost need confirm with sales manager.
a. The construction solution sheet together with 3D drawigns.
b. The PCB in protel and show you the sample to prove the function
C: If solution confirmed. and order placed. The solution charge will be refund.
3. Q: MOQ, main market
A: The MOQ is 1000pcs
B, The main market of OTC is Western Europe(especially UK and DE) and US, AR, and AU.
