Details of IEC 60598-2-22 compliant rechargeable SMD led emergency light
Advantages:
1. IEC 60598-2-22 fully compliant, You can bid any government project by it.
2. SMD led chip as light source, more efficiency SMD led emergency light
3. With self proection system. longer expire time than normal
You can get more details about IEC standard by sending inquiry
Basic Parameters:
| Size | 30x8.0x9.5cm |
| Weight | 1100g (include the battery) |
| LED Chips | 36pcs 0.1W SMD 2835 |
| 24pcs SMD 2835 is optional | |
| Material | ABS house + PS diffuser(OR PC diffuser) |
| Charging mold | 110~240V in CCB mold |
| 110/ 220 if with transformer | |
| degradation | >12hours |
| Battery | 6V 4Ah lead-acid battery |
| Work time | >40hours (LOW light) |
| > 24Hours (High light) | |
| Brightmess | 150 LM if the battery is full (this is adjustable) |
| Special | With Test button, Professional |
| Can be charged by 12V |
Basic information of this SMD led emergency light
IEC 60598-2-22 compliant:
| charge system | Silcon steel sheet Transfer |
| Battery protection | Atuo cut off charging system if V>7.1 |
| Auto cut off lamp if V<5.1 | |
| Material | 850deg ABS |
| Low voltage protection | change over during 0.60~0.85 of rate AC power |
| Test Button | With test button |
| Battery | must be Ni-CD or Lead-acid system |
| Indicate light | with charging and discharging indicate |
| You can email US for more IEC details | |

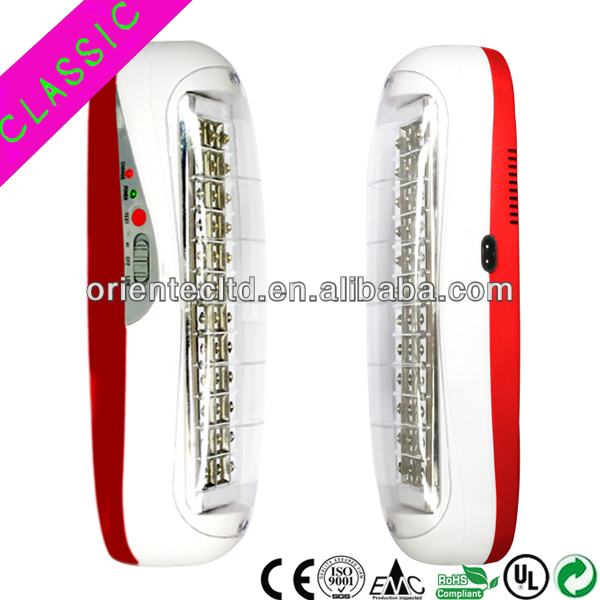

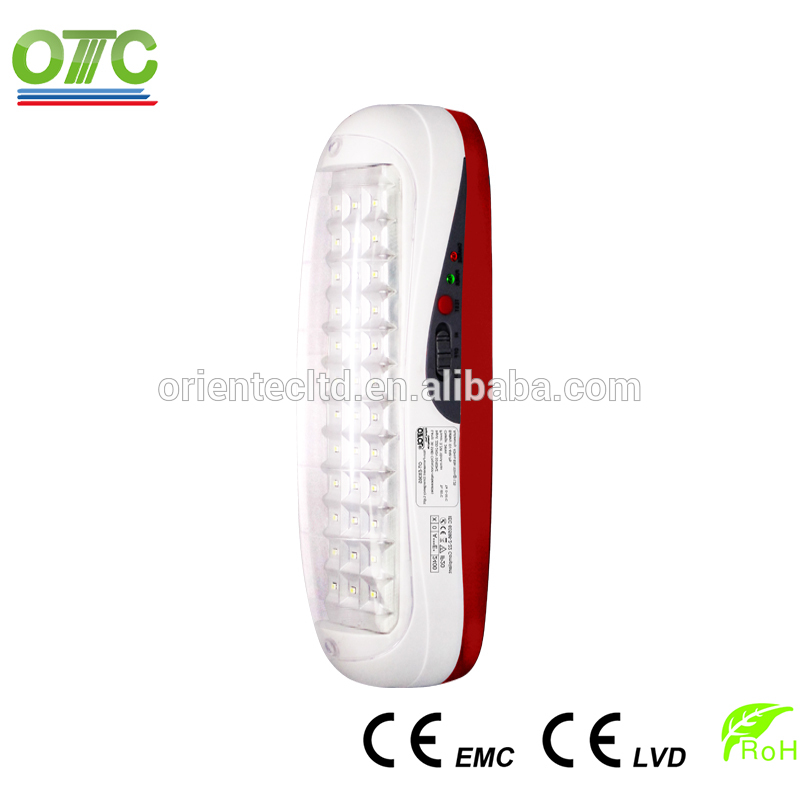

Detail picture of this hot sale 36 LED SMD led emergency light
Relate item
PACKING INFORMATION of this SMD led emergency light
| Packing: | color gift box with polyfoam |
| Inner packing: | 1pcs/inner Color box |
| Outer packing: | 12 PCS/CTN |
| box Size: | 32*36*24cm |
| G.W.: | 14KGS |
| N.W.: | 12KGS |
General Technical support:
Technical service of this smd led emergency light
General instruction of Orientec Electronic:
1. Ningbo Orientec Electronic Co. is Branch of OTC IND. This branch just specialize LED lighting. It contains:
A. Low voltage version, EMC and RoHS compliant. For supermarket.
B. 220V/110V industerial lighting. EMC/ LVD/ RoHS compliant. We work with famous
C. Emergency light for project only. IEC60598-2-22 full compliant. This used for bid government project.
D. OTC Own the patent of some item in this website.
2. Orientec Elec. with separate R & D depart. We apprecite you ideas about impove our current items.
A. The engin team in OTC proficent ProE, UG, Auto CAD and Protel.
B. The Marketing team will show you the trend in LED field.
C. You can sent inquiry as followed chart.
1. Q: What is the quality standard?
The products here all CE and IEC complaint.
PS: The engineer can remove your doubt based on IEC/ CE documents clause by clause.
2. Q: Does the R&D depart show solutons free of charge?
A: If just some doubt, Solutions are not needed. Free of charge.
eg. Why the sensor of my light run out so quickly, How yours can confirm 2 years guarantee?
Why the battery of our emergency light die just 50 cycles.
B: If you need new solutions.
Part 1; Draft solution sheet is free.
a. The construction solution sheet just with some Auto CAD 2D drawing.
b. The PCB solution just with general description.
Part 2; Formal solution sheet cost need confirm with sales manager.
a. The construction solution sheet together with 3D drawigns.
b. The PCB in protel and show you the sample to prove the function
C: If solution confirmed. and order placed. The solution charge will be refund.
3. Q: MOQ, main market
A: The MOQ is 1000pcs
B, The main market of OTC is Western Europe(especially UK and DE) and US, AR, and AU.
