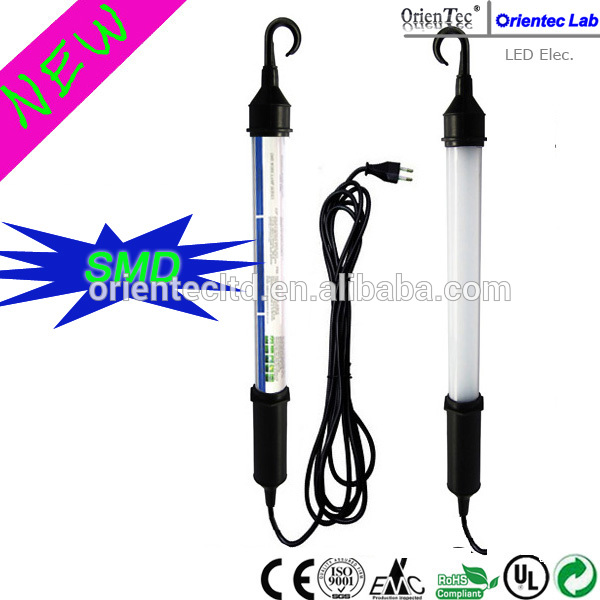

Details of SMD 2835 Car work light smd car inspection light
Advantages:
1. 2835# LED chip as light source, Energey saving car inspection light .
|
2. SGS Certi PS and ABS as cover, RoHS and Reach Complaint.
|
3. 12V car charger and rechargable
|
4. High brightness and can repalce normal LED bulb and florescent item. Armed with latest technology. New trend, Will be fashion in near furture.
|
5. Very good price, fit as promotional and home use.
|
6. Professional technical support team , make sure solve your doubt quickly.
|
Basic Parameters:
| Size | 4.5(D) * 47(L) cm |
| Weight | 170g (exclude the battery) |
| LED Chips | 20 pcs 2835 LED chips |
| Material | ABS cover + PC diffuser |
| IP rate | IP20 |
| Color temperature | 2700K ~6500K Available |
| Special | Good item for replace 8W florescent Inspection light |
Brightmess | 530LM if 20 pcs Chips on. |
Patent No | 2014204794443 |
when the lamp on, It looks like fluorescent car work light, car inspection light
Optional functions :
The optional function of this car work light led car inspection light
Battery | NI-CD 3.6V 750mAH is available |
| NI-MH 3.6V 750 mah is also available | |
Chips | Cree Chip is available |
| Special Ra>80 Chip is also available | |
12V charger | Available if you need |
Material
| Fire proof ABS + PC is available |
Other relate items:
Other hot sale led car inspection light in ORIENTEC.
Other car SMD car inspection light
Relate SMD car inspection light
General Technical support:
technical support of the led car inspection light
| Drawing of construction | Can be shown if you need it | confidential |
| Drawing for PCB | Can be shown if you place the order | Top Secret |
| Drawing for Elec. value | Can be shown if you need it | |
Knack for battery maintance | Can be shown if you need | |
| Test report of battery | Can be shown if you need | Confidential |
| Optical test for emergency lamp | Can be shown if you need it | Confidential |
| Maintain support | On line 7*24hours | By email |
| Key selling feature | Available |
Packing information:
PACKING INFORMATION of this led car inspection light
| Packing: | color gift box with polyfoam |
| Inner packing: | 1pcs/inner box |
| Outer packing: | 20PCS/CTN |
| Carton Size: | 58x36x58.5cm |
| G.W.: | 14KGS |
| N.W.: | 12KGS |
General instruction of Orientec Electronic:
1. Ningbo Orientec Electronic Co. is Branch of OTC IND. This branch just specialize LED lighting. It contains:
A. Low voltage version, EMC and RoHS compliant. For supermarket.
B. 220V/110V industerial lighting. EMC/ LVD/ RoHS compliant. We work with famous
C. Emergency light for project only. IEC60598-2-22 full compliant. This used for bid government project.
D. OTC Own the patent of some item in this website.
2. Orientec Elec. with separate R & D depart. We apprecite you ideas about impove our current items.
A. The engin team in OTC proficent ProE, UG, Auto CAD and Protel.
B. The Marketing team will show you the trend in LED field.
C. You can sent inquiry as followed chart.
1. Q: What is the quality standard?
The products here all CE and IEC complaint.
PS: The engineer can remove your doubt based on IEC/ CE documents clause by clause.
2. Q: Does the R&D depart show solutons free of charge?
A: If just some doubt, Solutions are not needed. Free of charge.
eg. Why the sensor of my light run out so quickly, How yours can confirm 2 years guarantee?
Why the battery of our emergency light die just 50 cycles.
B: If you need new solutions.
Part 1; Draft solution sheet is free.
a. The construction solution sheet just with some Auto CAD 2D drawing.
b. The PCB solution just with general description.
Part 2; Formal solution sheet cost need confirm with sales manager.
a. The construction solution sheet together with 3D drawigns.
b. The PCB in protel and show you the sample to prove the function
C: If solution confirmed. and order placed. The solution charge will be refund.
3. Q: MOQ, main market
A: The MOQ is 1000pcs
B, The main market of OTC is Western Europe(especially UK and DE) and US, AR, and AU.
