Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- POSA
- Model Number:
- PS-SS39
- Usage:
- Temperature Sensor
- Theory:
- Resistance Sensor
- Output:
- Switching Transducer
- Input Voltage::
- 220-240V/AC
- Time Delay::
- 8sec-8min, adjustable
- Detection Distance::
- <12m (<24℃)
- Ambient Light::
- 3-2000lux, adjustable
- Rated Load::
- <1200W
- Detection angle::
- 140°-180°
- Detection motion speed::
- 0.6-1.5m/s
- Installation height::
- 0.5m-3.5m
- Product size::
- 86*78*98mm
- IP rating::
- IP44
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 22X11X10 cm
- Single gross weight:
- 0.32 kg
- Package Type:
- white box+outer carton

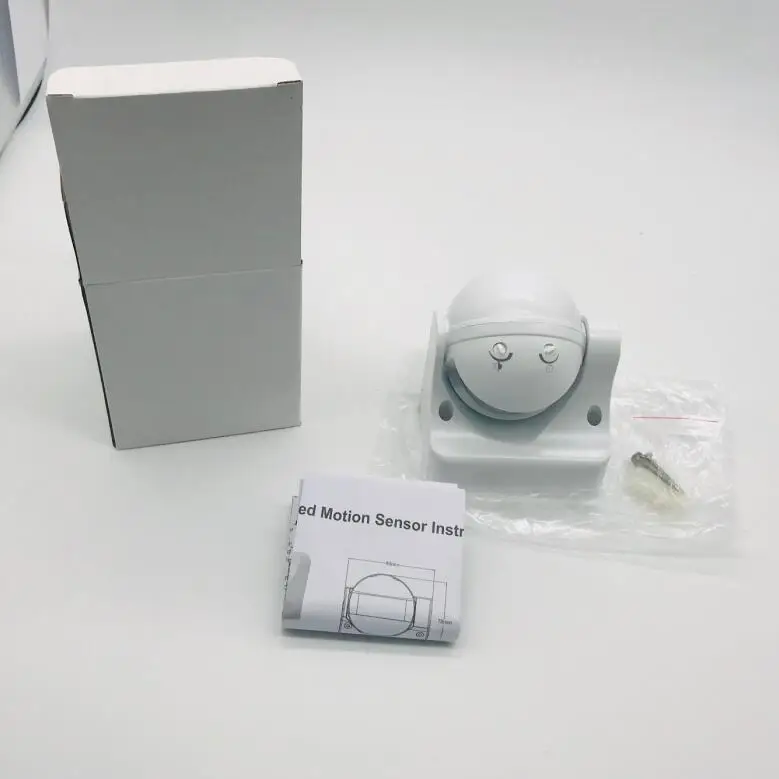

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 200 201 - 5000 >5000 Est. Time(days) 7 35 To be negotiated
This PIR sensor are GS approved, max. loading upto 1200W
Specification:
1) Power Source: 100~130V/AC; 180~240V/AC
2) Power Frequency: 50-60Hz
3) Ambient Light: <10Lux~2000Lux(adjustable)
4) Rated Load: 1200W(220~240V/AC); 800W(100~130V/AC)
5) Detection Distance: 2~12m(adjustable)
6) Time Delay: 5Sec. ~8Min. (adjustable)
7) Work Temperature: -20ºC~+40ºC
8) Power Consumption: 0.45W(static 0.1W)
9) Installation Height: 1.8~2.5m
10) Detection Motion Speed: 0.6-1.5m/s
11) IP44
Product picture:
